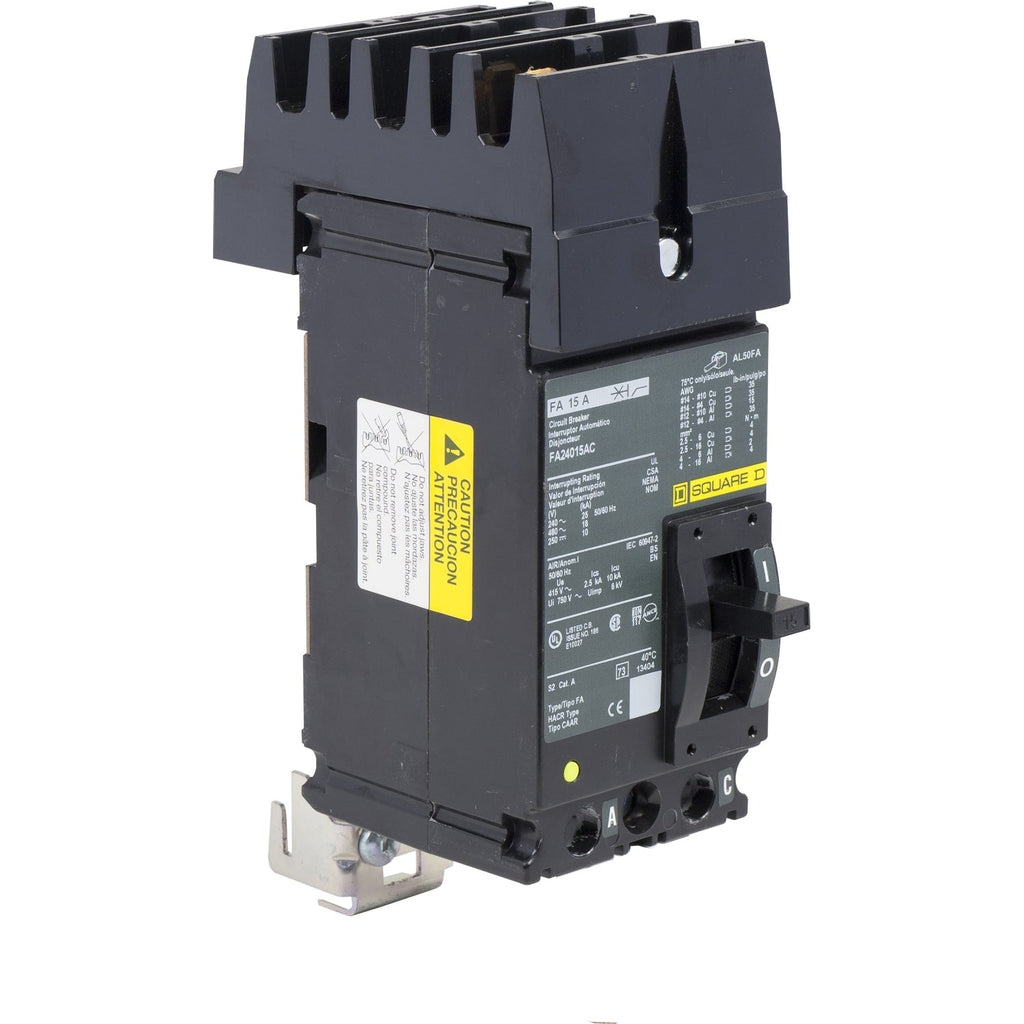

FA24015AC - Square D 15 Amp 2 Pole 480V I-Line Plug-In Molded Case Circuit Breaker, Frame F, Thermal Magnetic Trip, UL/CSA Certified

FA24015AC

FA24015AC is a Square D 15 Amp, 2 Pole, 480V molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This I-Line plug-in circuit breaker features a thermal magnetic trip unit, Frame F construction, and is approved for use with Square D CLASS 650/651 panelboards and switchboards. It offers robust protection with a high interrupting rating and is certified for safety and performance.

Key Specifications
• Part Number: FA24015AC
• Manufacturer: Square D
• Amperage: 15A
• Voltage: 480VAC (also rated 240/480VAC, 480VAC Star/277VAC, 240/415VAC, 250VDC)
• Poles: 2
• Mounting Type: I-Line plug-in
• Interrupt Rating: 18kAIC at 480VAC (25kAIC at 240VAC, 10kAIC at 415VAC/IEC, 10kAIC at 250VDC)
• Series/Frame: FA Series, Frame F (100A frame)
• Trip Unit: Thermal magnetic, non-interchangeable
• Certifications: UL, CSA
• Terminal Wire Size: 14–4 AWG (copper), 12–4 AWG (aluminum)
• Temperature Rating: 40°C
• Dimensions: 3" W x 4.13" D x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA24015AC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 480
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901253402
• GTIN : 00785901253402
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
