FA100X - Square D FA Series 100A 600VAC 1-3 Pole Cast Aluminum Circuit Breaker Enclosure NEMA 7

FA100X

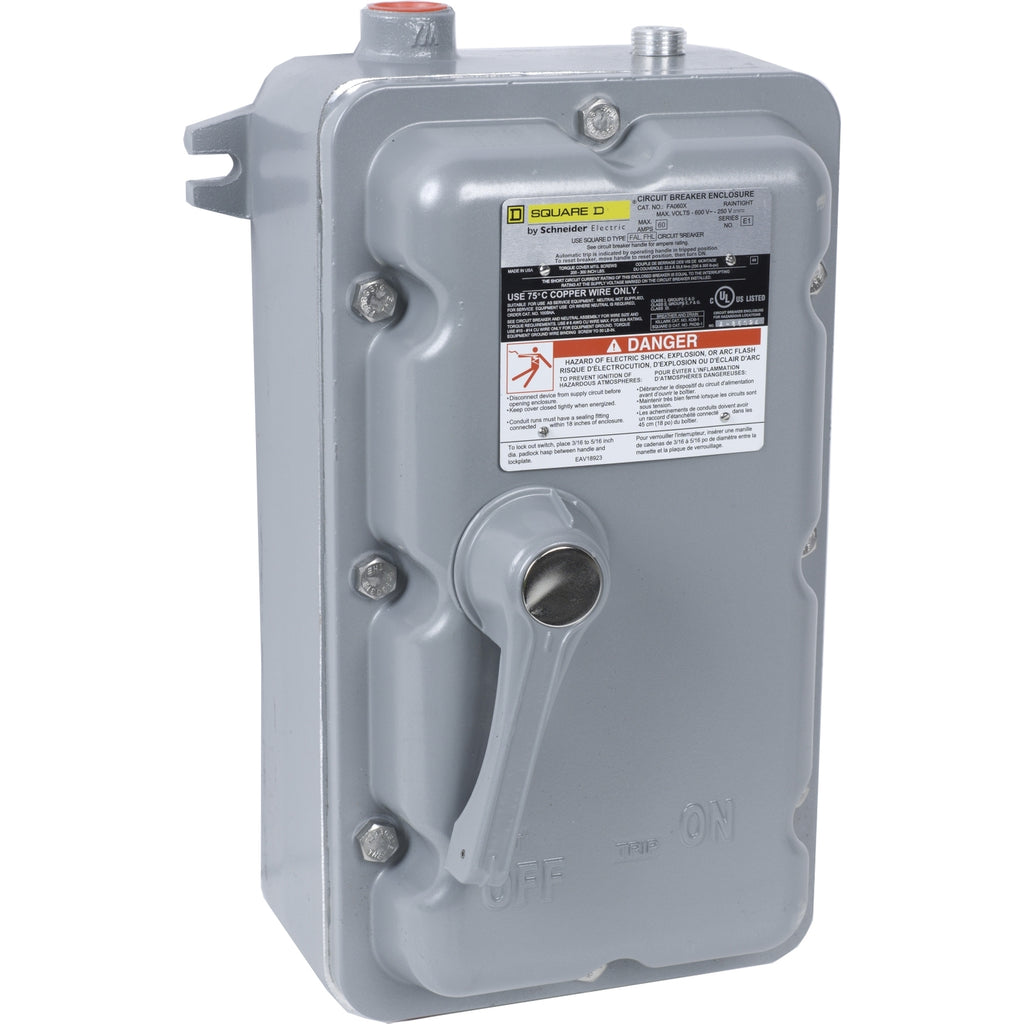

FA100X is a cast aluminum circuit breaker enclosure designed for Square D FA Series FAL and FHL circuit breakers, supporting 1 to 3 poles and up to 100A at 600VAC. This NEMA 7 rated enclosure provides robust protection for industrial and commercial applications, compatible with FAL frame breakers from 15 to 100A. The durable cast aluminum construction ensures long-term reliability and resistance to harsh environments.

• Part Number: FA100X
• Manufacturer: Square D
• Series/Frame: FA Series, FAL Frame
• Amperage: 15-100A
• Voltage: 600VAC
• Poles: 1, 2, or 3 Pole
• Enclosure Material: Cast Aluminum
• NEMA Rating: NEMA 7
• Mounting Type: Compatible with FAL/FHL breakers
• Interrupt Rating: Not specified
• Trip Unit: Not applicable (enclosure only)
• Certifications: NEMA 7

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Please note that circuit breakers are not included with the enclosures and must be purchased separately.

Specifications

• Part Number: FA100X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Enclosure
• Family : FA Series
• Type : FA
• Amperage : 100
• Compatible Frames : FAL 15A through 100A

Product Data

• UPC : 078590114882
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 22
• Panel Type : Circuit breaker FAL 15É100 A
