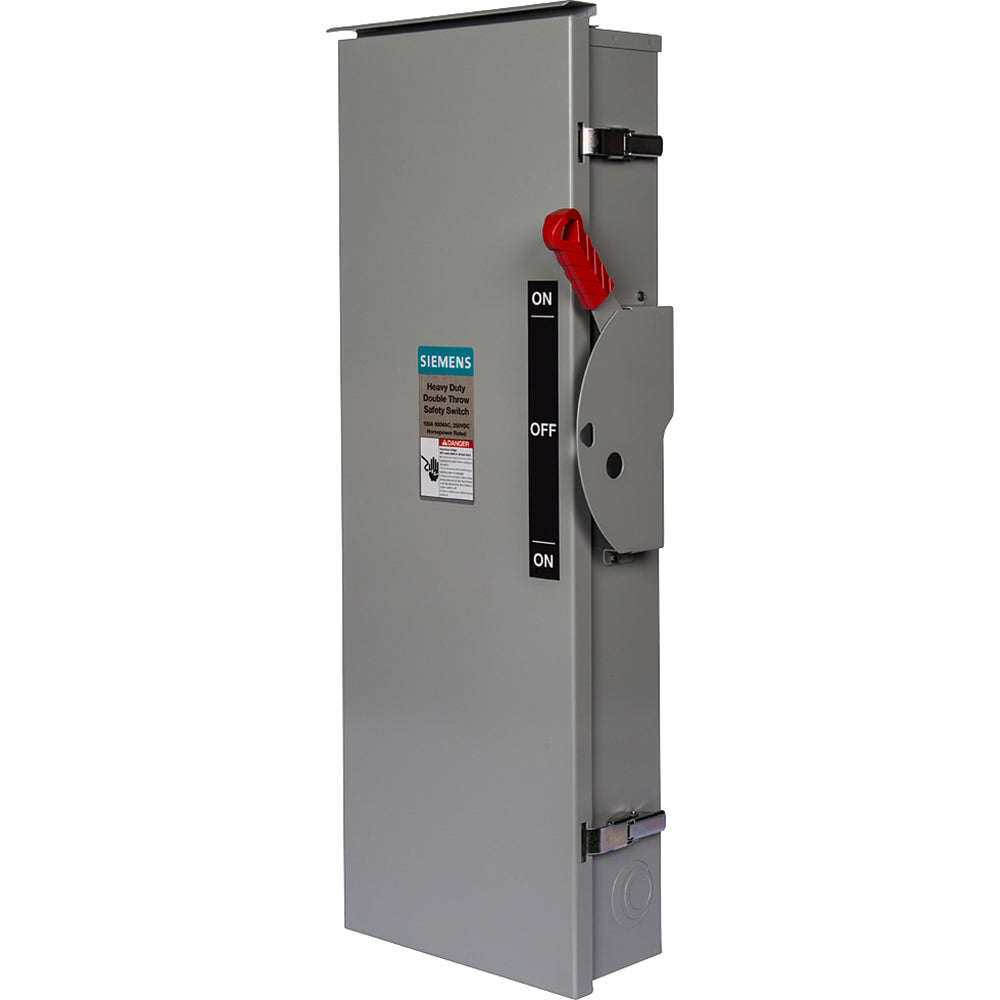

F353SSDTK - Siemens 100A 600V 3-Pole Fusible Heavy Duty Safety Switch NEMA 4X

F353SSDTK

F353SSDTK is a Siemens heavy duty fusible safety switch rated for 100 amps and 600 volts AC, designed for reliable power distribution and protection.This 3-pole, 3-wire switch features a knife blade connection and is suitable for use in harsh environments with a NEMA 4X enclosure rating. It supports 600 VAC and 250 VDC operation, with a 100,000 AIC interrupt rating when used with Class R, J, or T fuses. The switch meets UL98 and UL50 standards and is UL listed under file #E4776. It is designed for double throw operation and complies with NEC wire bending space requirements and NEMA KS-1 standards.

Key Specifications
• Amperage: 100 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Surface mount with "F" diameter mounting holes
• Interrupt Rating: 10,000 AIC with Class H fuses, 100,000 AIC with Class R, J, or T fuses
• Series/Frame: Heavy Duty, NEMA 4X enclosure
• Trip Unit: Fusible
• Certifications: UL Listed (UL98, UL50), Meets NEC and NEMA standards
• Connection Type: Knife blade
• Configuration: Double throw

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: F353SSDTK
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Connection : Knife Blade
• Functions : LI - Long-Time and Instantaneous
• Fuse Class : R
• Class Rating : gL/gG
• Wire : 3
• Configuration : Single
• Coil Voltage Maximum : 220
• Coil Voltage Minimum : 220
• Switch Style : Fusible
• Nema Rating : 4
• Protection : Solid State
• Compatible Frames : MEP

Product Data

• UPC : 005171262588
• GTIN : 00783643397606
• Weight : 31.063
