EXH5 480360 300 - Eaton Industrial controls 30 kW

EXH5 480360 300

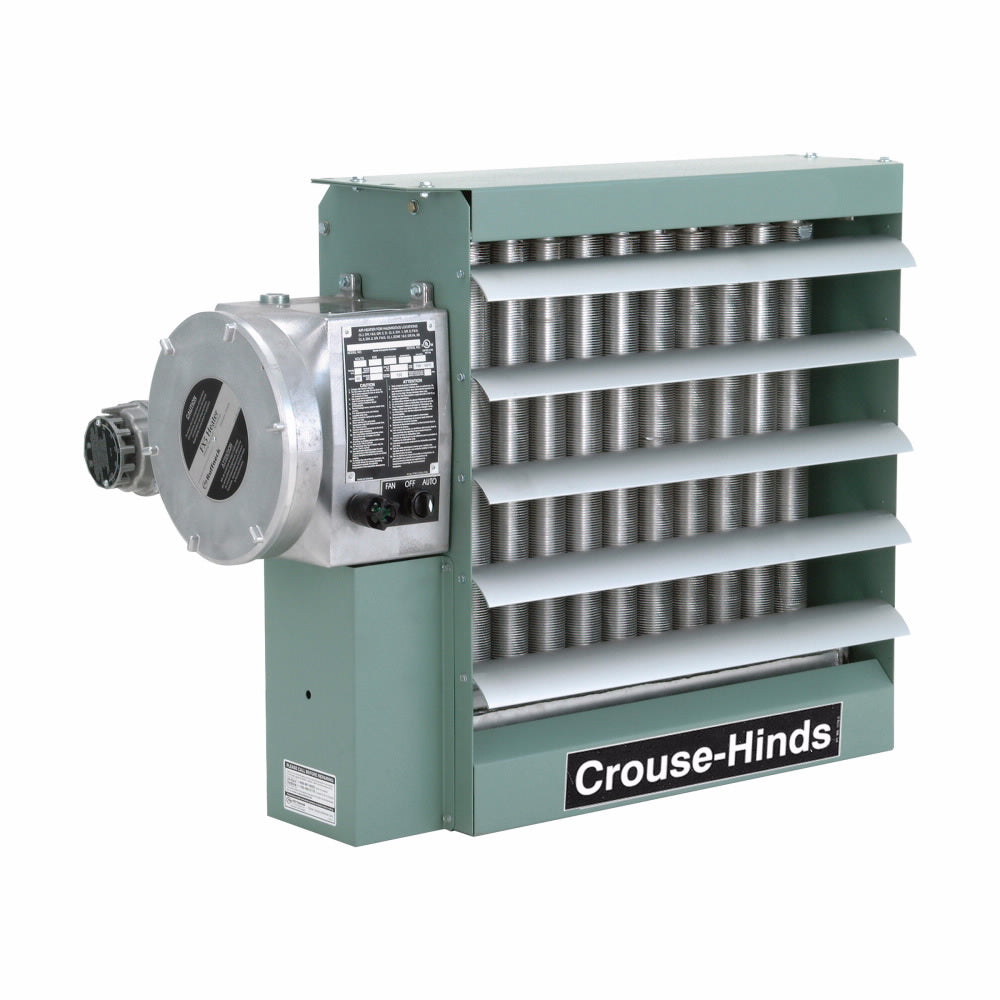

EXH5 480360 300 is an Eaton Crouse-Hinds series explosionproof electric air heater designed for hazardous locations. Technical Description: This three-phase electric air heater operates at 480 Vac, 60 Hz with a power output of 30 kW and heat output of 102,360 BTU/hr. It features a maximum amperage rating of 36.1 A and a temperature rise of 26.4°F (14.6°C). The unit is constructed of steel and is rated for Class I Division 1, Class II Division 1, Class II Division 2, and Class I Division 2 hazardous locations per NEC/CEC standards with NEMA ratings 9 and 7. The heater measures 27.44 in (L) x 26.5 in (H) x 22.63 in (W) and weighs 201 lb. Key Specifications

• Part Number: EXH5 480360 300
• Manufacturer: Eaton
• Voltage: 480 V
• Phase: 3
• Frequency: 60 Hz
• Power Output: 30 kW
• Heat Output: 102,360 BTU/hr
• Maximum Amperage: 36.1 A
• Temperature Rise: 26.4°F (14.6°C)
• Material: Steel
• NEMA Rating: 9, 7
• NEC Hazardous Rating: Class I Division 1, Class II Division 1, Class II Division 2, Class I Division 2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EXH5 480360 300
• Manufacturer : Eaton
• Brand : Eaton
• Category : Industrial controls
• Item Subcategory : Heaters and thermostats
• Section : EXH Explosionproof Electric Heaters
• Voltage : 480 V
• Phase : 3
• Class Rating : Class I Division 1, Class II Division 1, Class II Division 2, Class I Division 2
• Nema Rating : 9, 7
• Amperage Maximum : 36.1 A
• Watts : 30 kW
• Metal Type : Steel
• Hz : 60 Hz
• Shipping Dimensions : 27.44 in L x 26.5 in H x 22.63 in W
• Item QTY : 201 lb
• Material : Steel
• Temperature Rise : 26.4°F (14.6°C)
• NEC hazardous rating : Class I, Division 1 Class II, Division 1 Class II, Division 2 Class I, Division 2

Product Data

• UPC : 662276647497
• Dimensions : 27.44 in x 26.5 in x 22.63 in (Length/Depth x Height x Width)
• Weight : 201 lb
