Product Info
- Manufacturer:Eaton
- Sub-Category:Highbay, lowbay and industrials
Description
EVLLA7LNA20-UNV1

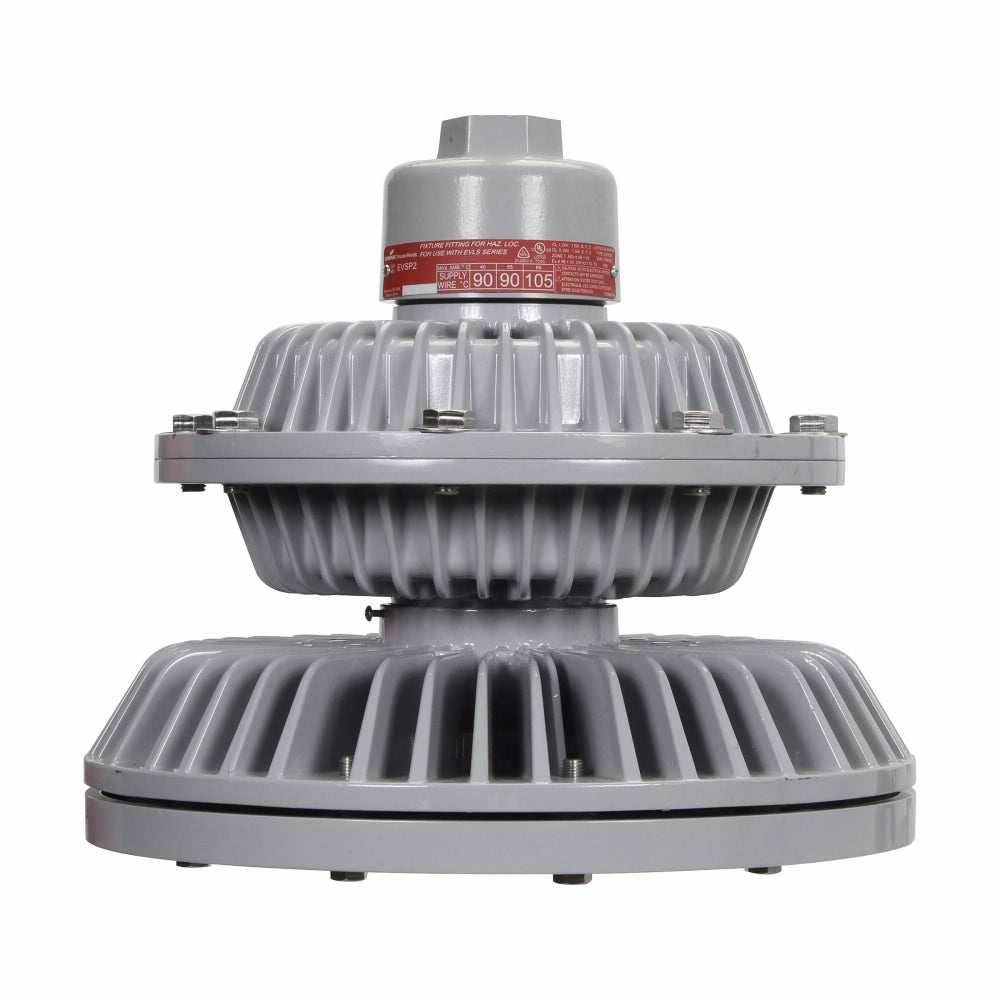

EVLLA7LNA20-UNV1 is an Eaton Crouse-Hinds Hazard-Gard series EVLLA LED light fixture designed for hazardous locations.This neutral white fixture delivers 7000 lumens at 110 lm/W, equivalent to 150W-175W HID, with 69W power consumption, 120-277 Vac voltage rating, and pendant mounting.Key Specifications
- Part Number: EVLLA7LNA20-UNV1
- Manufacturer: Eaton
- Voltage: 120-277 Vac
- Lumens: 7000
- Wattage: 69W
- Lumens per Watt: 110 lm/W
- Color Temperature: Neutral white
- Mounting: Pendant
- NEMA Rating: 4X
- IP Rating: IP66
- Frequency: 50/60 Hz
- Equivalent: 150W-175W HID
- Guard Type: No guard
Specifications
- Part Number: EVLLA7LNA20-UNV1
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Highbay, lowbay and industrials
- Section : Hazard-Gard EVLLA Explosionproof LED Light Fixtures
- Voltage : 120-277 Vac
- Nema Rating : 4X
- Watts : 69W
- Enclosure : Copper-free aluminum
- Mounting : Pendant
- Hz : 50/60 Hz
- Protection : IP66
- Material : Copper-free aluminum
- NEC hazardous rating : Class I, Division 1 Class II, Division 1 Class III
- Ingress protection (IP) ratings : IP66
- Lumens : 7000
- Lumens per watt : 110
- Color temperature : Neutral white
- Mounting Method : Pendant
- Equivalent luminaire : 150W-175W HID
- Guard type : No guard
- Dimming : Dimmable driver
- Power factor : > 0.90
- Trade size : 100-240 Vac, 127-250 Vdc
Product Data
- UPC : 662276990845
- Dimensions : 16.32 in x 15.42 in x 16.32 in (Length/Depth x Height x Width)
- Weight : 53.81 lb
