EVLEDBX2C201 - Eaton Lighting and controls LED Fixture 1500 lm

EVLEDBX2C201

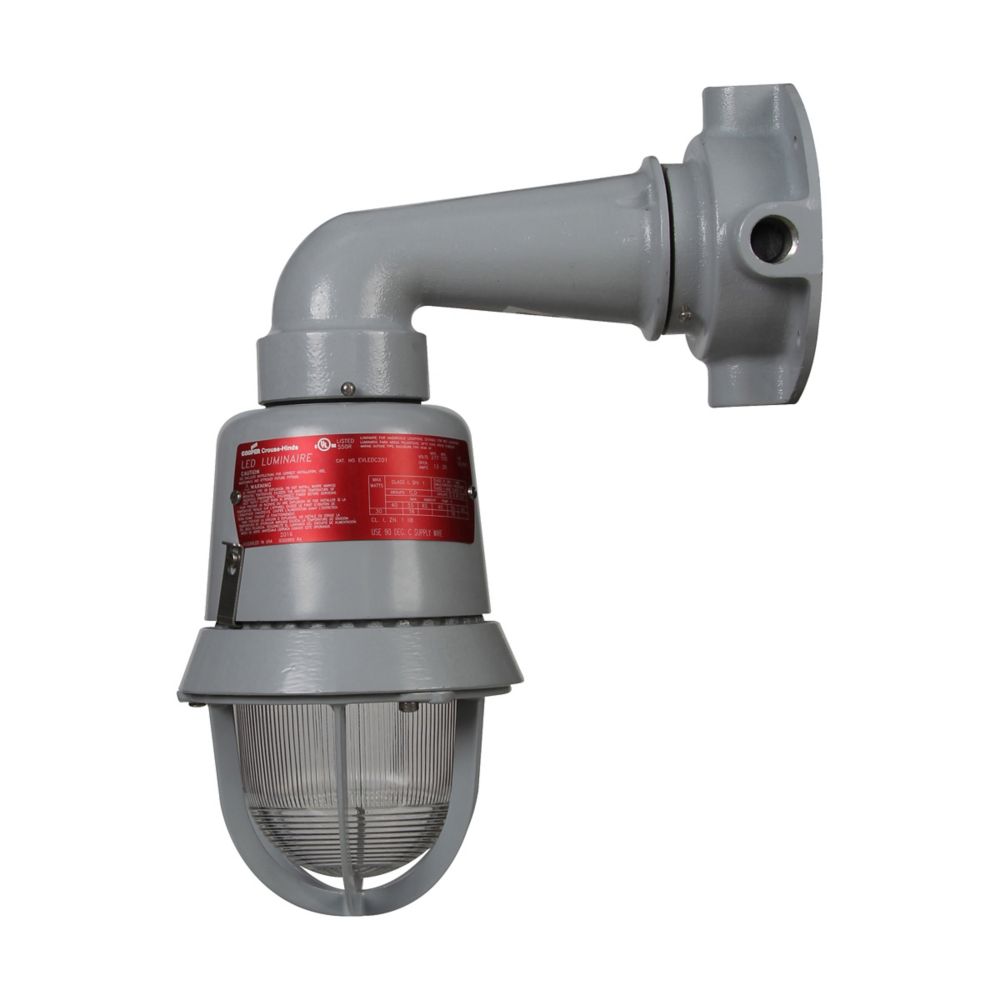

EVLEDBX2C201 is an Eaton Crouse-Hinds series explosionproof LED light fixture designed for hazardous and wet locations. This heat and impact resistant fixture delivers reliable illumination in demanding industrial environments with marine and wet location approval. The fixture features a cool white LED with AC drive, epoxy powder coated finish, and a protective guard. It is rated for UL 844/1598/1598A and CSA C22.2 compliance, making it suitable for wall mount feed-through installations in corrosive or explosive atmospheres. Key Specifications

• Part Number: EVLEDBX2C201
• Manufacturer: Eaton
• Lumens: 1500 lm
• Lumens per Watt: 100 lm/W
• Color Temperature: 5600 K
• Color Rendering Index (CRI): 65
• Amperage Rating: 0.06-0.17 A
• Average Life: 50000 hr
• Enclosure Rating: IP66
• Certifications: UL 844/1598/1598A, CSA C22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EVLEDBX2C201
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 100-277 Vac
• Amperage : 0.06 - 0.17A
• Nema Rating : 4X
• Amperage Maximum : 0.17 A
• Amperage Minimum : 0.06 A
• Watts : 15W
• Operating Temperature Maximum Celsius : 50000 hr average life
• Enclosure : IP66
• Material : Copper-free aluminum
• NEC hazardous rating : Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
• Ingress protection (IP) ratings : IP66
• Lumens : 1500
• Lumens per watt : 100
• Color temperature : 5600 K
• Mounting Method : Wall
• Equivalent luminaire : 100-200W incandescent
• Power factor : >0.90
• Trade size : 3/4"
• Certifications and compliances : UL 844/1598/1598A, CSA C22.2
• Special features : Heat and impact resistant glass globe, epoxy powder coated finish, explosionproof, marine/wet location rated
• Color : Cool white

Product Data

• UPC : 662276273566
• GTIN : 00662276000000
• Dimensions : 12.56 in x 16.81 in x 7.25 in (Length/Depth x Height x Width)
• Weight : 11 lb
