Product Info
- Manufacturer:Functional Devices
- Sub-Category:Fuse Part And Accessory
Description
ESR02P

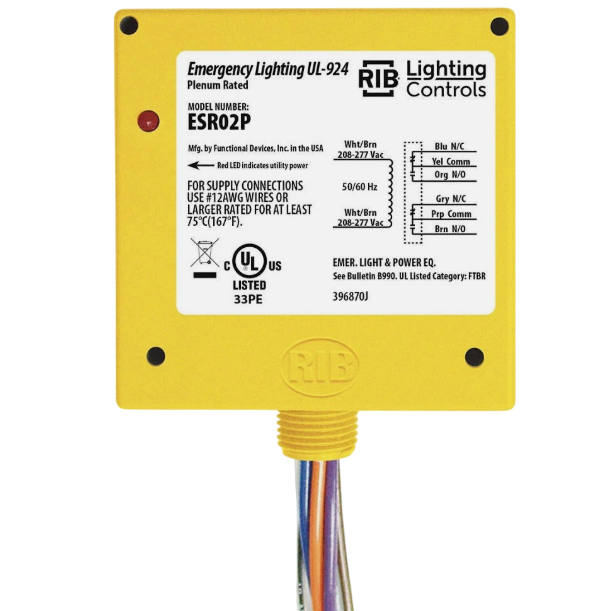

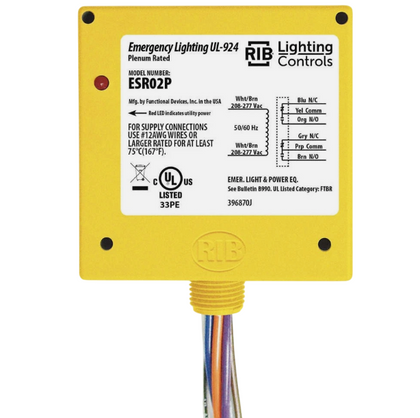

ESR02P is a UL924 listed emergency lighting bypass/shunt relay from Functional Devices with a 20 Amp DPDT contact rating and 208-277 VAC coil voltage.ESR02P features a NEMA 1 enclosure, is CE certified, and designed for reliable emergency lighting control with a threaded hub mount for 1/2" knockout. It supports a coil input of 208-277 VAC at 50/60 Hz, has a short circuit current rating of 5,000A, and includes a relay status LED indicator. The relay is rated for 10 million mechanical cycles and operates in temperatures from -30° to 140°F. Wiring terminations include pigtails and terminals suitable for 12 to 24 AWG wiring.
- Key Specifications
- Contact Rating: 20 Amp DPDT
- Coil Voltage: 208-277 VAC, 50/60 Hz
- Mounting: Threaded Hub for 1/2" knockout
- Enclosure: NEMA 1
- UL924 Listed and CE Certified
- Short Circuit Current Rating (SCCR): 5,000 Amps
- Operating Temperature: -30° to 140°F (-34° to 60°C)
- Mechanical Endurance: 10 million cycles minimum
- Wiring: Pigtails 16" 18 AWG for coils, 12 AWG for contacts
- Visual Indication: Relay status LED
- Dimensions: Approximately 4" x 4" x 1.8"
Specifications
- Part Number: ESR02P
- Manufacturer : Functional Devices
- Brand : Functional Devices
- Category : Circuit Breaker
- Item Subcategory : Fuse Part And Accessory
Product Data
- Country of Origin : United States
- Weight : 0.4
- Certification : CE Certified, RoHS Compliant, UL 924, UL Listed
