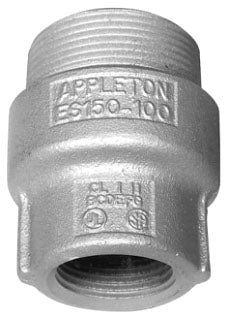

ES150100 - Appleton Explosion-Proof Sealing Hub 1-1/2 Inch x 1 Inch Male/Female Threaded Malleable Iron

ES150100

ES150100 is an Appleton explosion-proof sealing hub designed for hazardous locations with 1-1/2 inch male and 1 inch female NPT threaded conduit connections.This sealing hub is made of malleable iron with a triple-coat zinc electroplate, chromate, and epoxy powder coat finish for corrosion resistance. It features a tapered male/female threaded type, vertical conduit orientation, and allows up to 25% conduit fill. The hub prevents the passage of gases, vapors, or flames between conduit sections and is rated for Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III hazardous locations. It complies with CSA C22.2 No. 30 and UL 886 standards.

Key Specifications
• Type: Explosion-Proof Sealing Hub
• Material: Malleable Iron with Zinc Electroplate, Chromate, Epoxy Powder Coat
• Trade Size: 1-1/2 Inch Male x 1 Inch Female
• Thread Type: NPT, Tapered Male/Female
• Conduit Orientation: Vertical
• Conduit Fill: Up to 25%
• Hazardous Location Rating: Class I, Div 1 & 2, Groups A-D; Class II, Div 1 & 2, Groups E-G; Class III
• Standards: CSA C22.2 No. 30, UL 886
• Length: 3 1/8 Inches
• Color: Silver
• Seal Type: 25% Fill Sealing Hub

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Protection/accessory device

Specifications

• Part Number: ES150100
• Manufacturer : Appleton
• Brand : Appleton
• Category : Conduit & Fittings
• Item Subcategory : Surge protector / electrical accessory

Product Data

• UPC : 781381703222
• GTIN : 00781381703222
• Country of Origin : Mexico
• Dimensions : 3-1/8 in L x 2-1/4 in H
• Weight : 5.19
• Certification : CSA C22.2 No 30, UL 886
