EN4SD242012GY - Hammond Eclipse 24x20x12 NEMA 3R/4 Wall Mount Enclosure

EN4SD242012GY

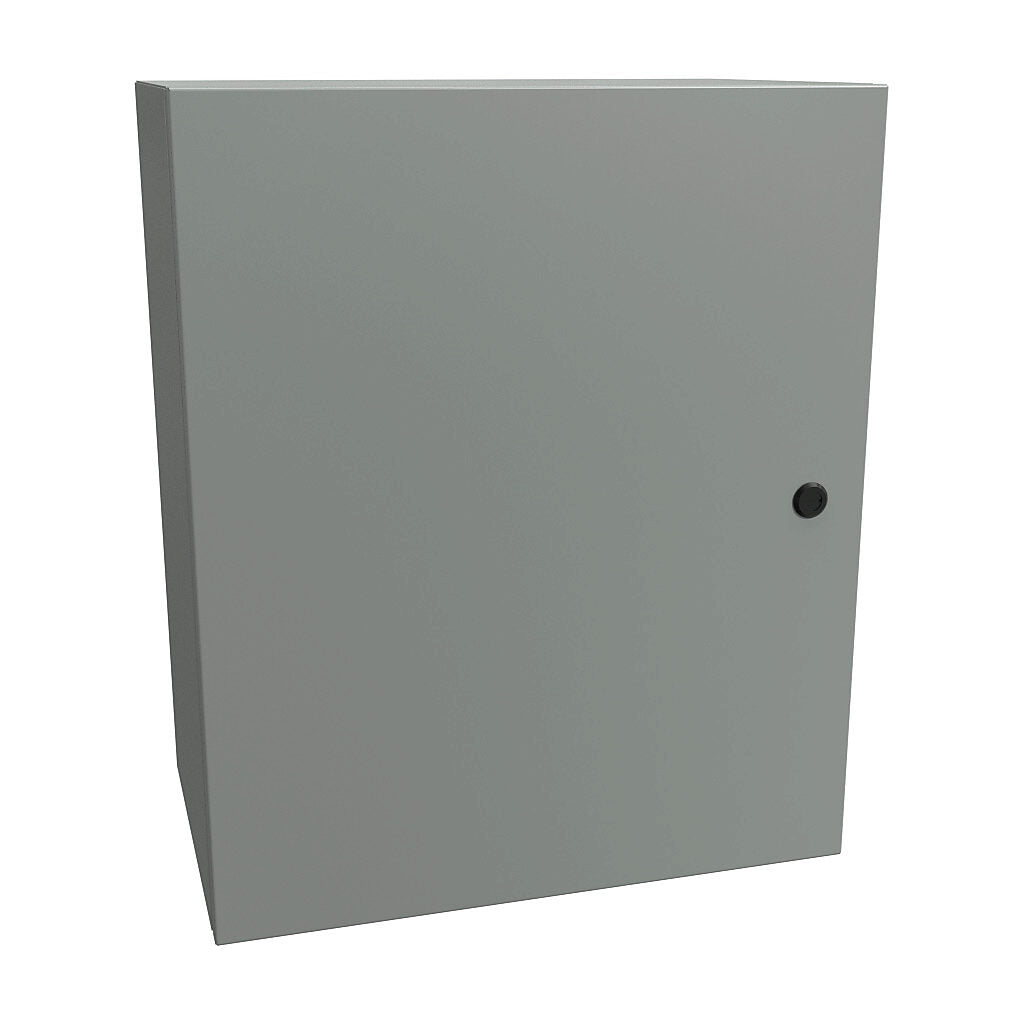

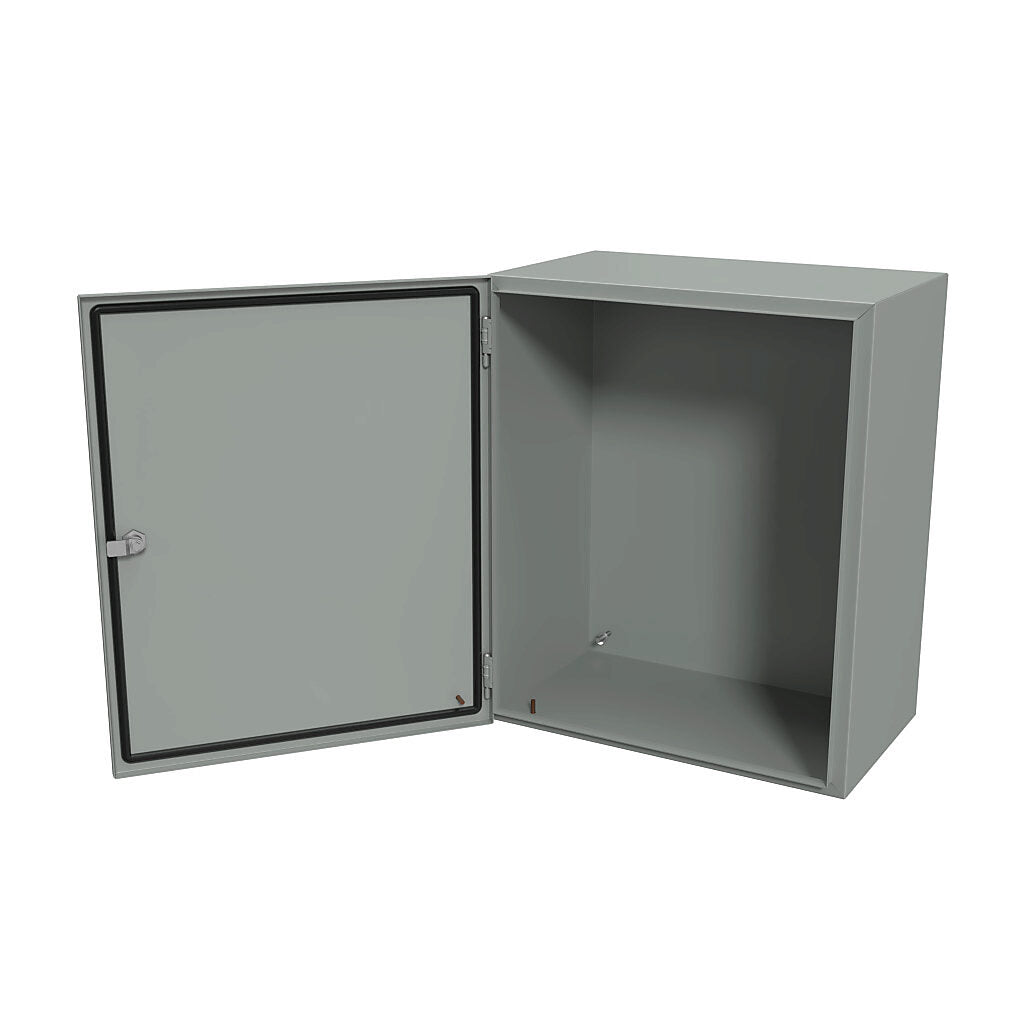

EN4SD242012GY is a Hammond Eclipse series wall-mount electrical enclosure designed for NEMA 3R/4/12 outdoor and indoor applications. This single-door enclosure features a carbon steel construction with ANSI 61 gray powder coat finish and provides robust protection for electrical components and distribution equipment. The enclosure measures 24 inches in height, 20 inches in width, and 12 inches in depth, with a total capacity of 5760 cubic inches. Construction includes formed 14 or 16 gauge steel with smooth, continuously welded seams ground smooth for durability. The door features a quarter-turn slot latch requiring a tool for opening, providing added security. A seamless poured-in-place gasket and formed lip on the enclosure exclude flowing liquids and contaminants. Doors are easily removable for modifications and are interchangeable. The enclosure is wall-mounted with feet and includes a 3-point handle latch system.

• NEMA Rating: NEMA 3R/4/12
• Dimensions: 24 in H x 20 in W x 12 in D
• Material: Carbon Steel
• Finish: ANSI 61 Gray Powder Coat
• Door Type: Single Hinged Door
• Locking Mechanism: Quarter-Turn Slot Latch
• Capacity: 5760 cu-in
• Mounting: Wall Mount with Feet
• Series: Eclipse
• Certifications: UL 508A, CSA, CE Marking, IEC 60529, RoHS Compliant
• Country of Origin: Canada
• Warranty: 1 Year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Please note that circuit breakers are not included with the enclosures and must be purchased separately.

Specifications

• Part Number: EN4SD242012GY
• Manufacturer : Hammond
• Brand : Hammond Mfg
• Category : Circuit Breaker
• Item Subcategory : Enclosure

Product Data

• UPC : 62398044733
• GTIN : 00623980447339
• Country of Origin : Canada
• Weight : 5.19
