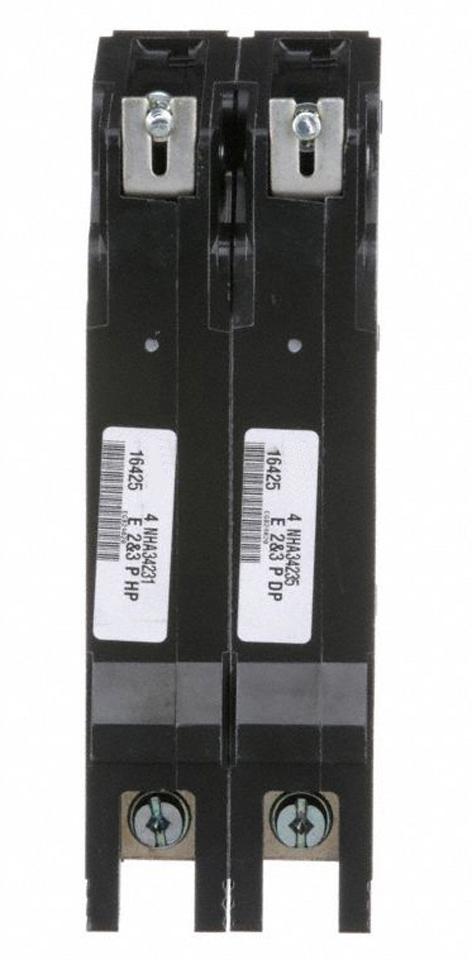

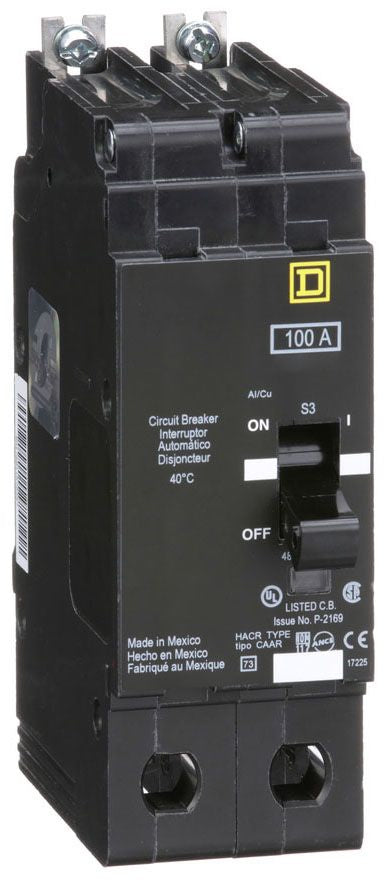

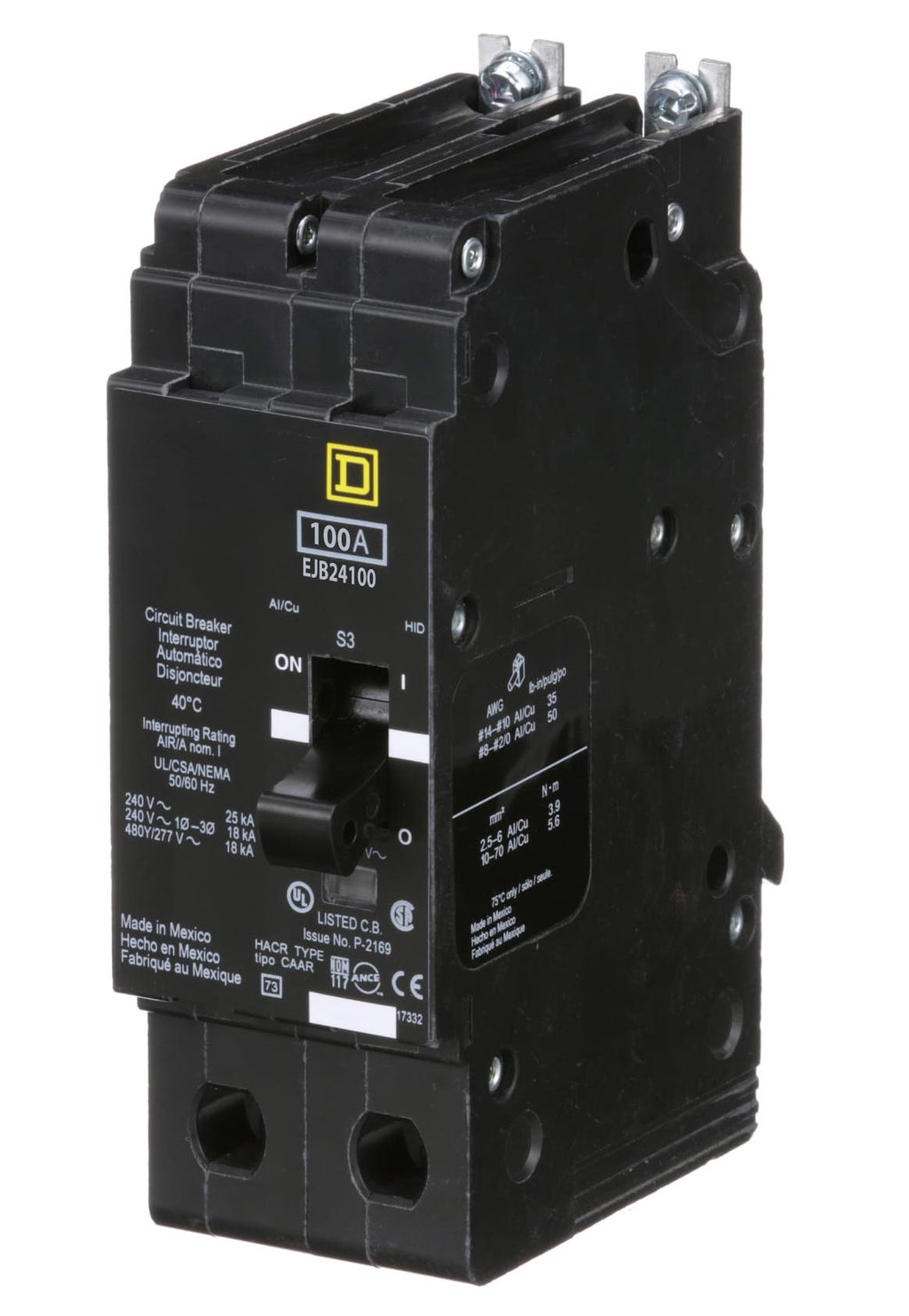

EJB24100 - Square D 100A 2-Pole Molded Case Circuit Breaker 480Y/277V Bolt-On E-Frame Thermal Magnetic

EJB24100

EJB24100 is a Square D 2-pole molded case circuit breaker rated for 100 amps and 480Y/277 volts AC with bolt-on mounting.EJB24100 features a thermal-magnetic trip unit providing superior overload and short circuit protection. It is designed for use in Square D NF panelboards and supports aluminum lug electrical connections. The breaker has a 65kA interrupt rating at 480V and 100kA at 240V, with a holding current of 270 amps and a trip current rating of 875 amps. It includes a trip indicator for local signaling and is HID/HACR rated.

Key Specifications
• Amperage: 100A
• Voltage: 480Y/277 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA @ 480V, 100kA @ 240V
• Series/Frame: EJB Series, E-Frame
• Trip Unit: Thermal Magnetic
• Certifications: HID-Rated, HACR-Rated
• Electrical Connection: Aluminum Lugs
• Holding Current: 270A
• Local Signaling: Trip Indicator
• Dimensions: 5.66" H x 1.96" W x 4.05" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EJB24100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EJB Series
• Type : EJB
• Voltage : 480
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901968498
• GTIN : 00785901968498
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.47
• Panel Type : NF panelboard
• Certification : cULus

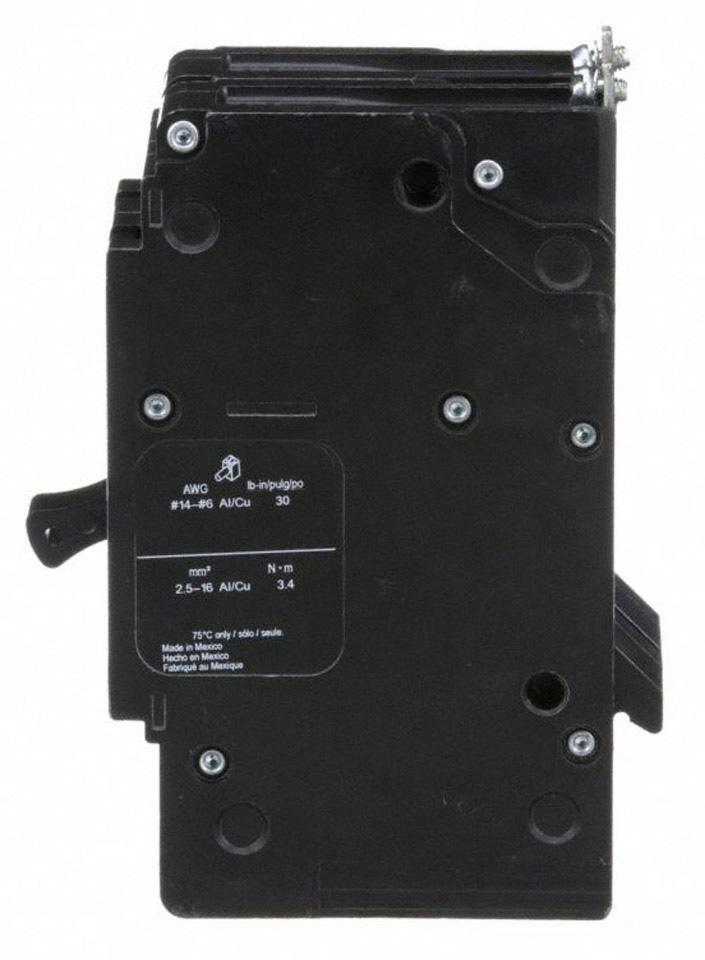

• Wire Size : AWG 12 to AWG 2/0 Aluminum, AWG 14 to AWG 2/0, Copper
