EJB14020 - Square D Free Standing 277V 20A 1 pole circuit breaker 65kA@480V

SKU: EJB14020-New

Title: New
Price:
Sale price $97.99
Stock:
In stock, ready to be shipped

We also have No Box, Recertified, and Surplus options available.
Call (866) 377-3532 for a price!

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

Description

EJB14020

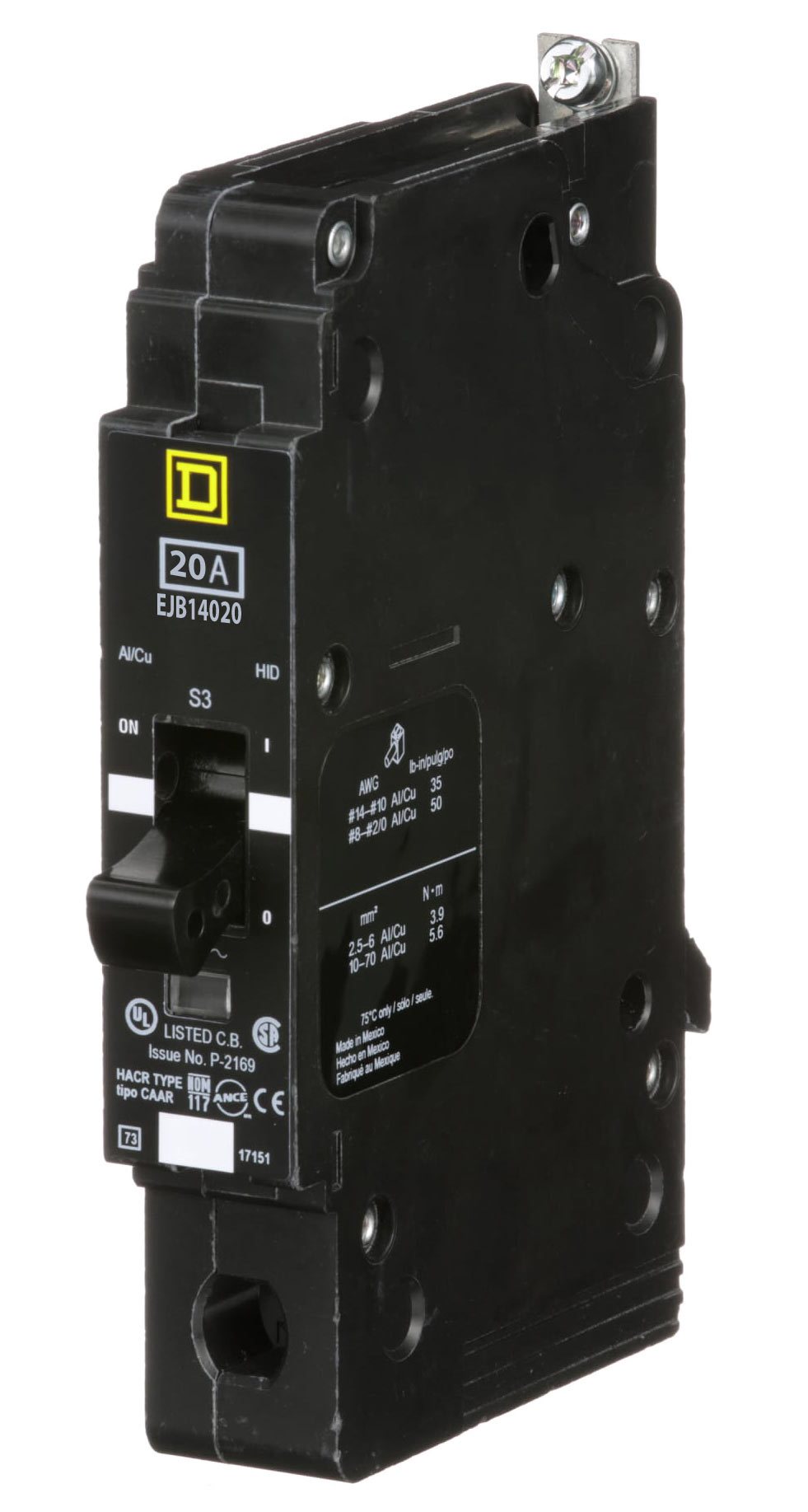

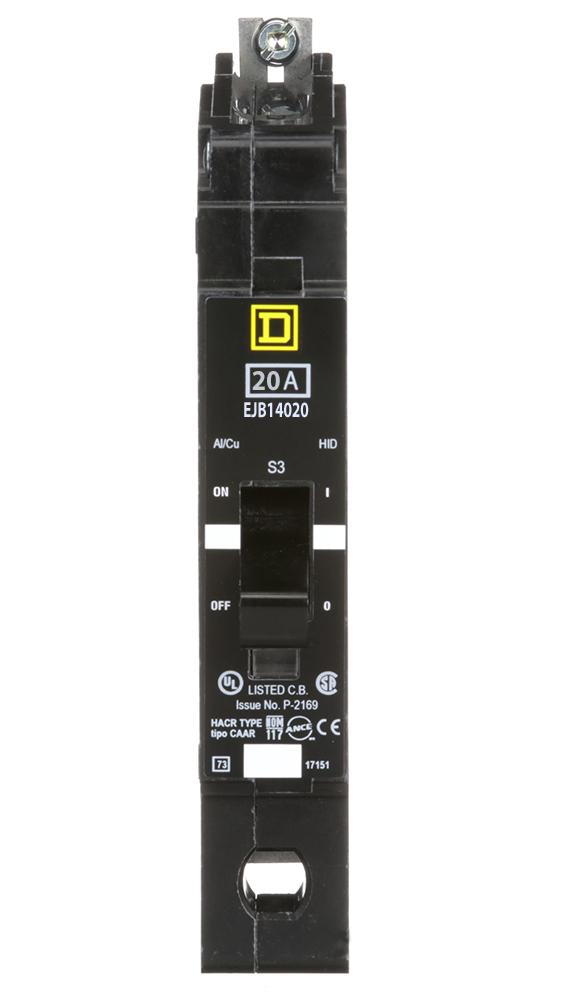

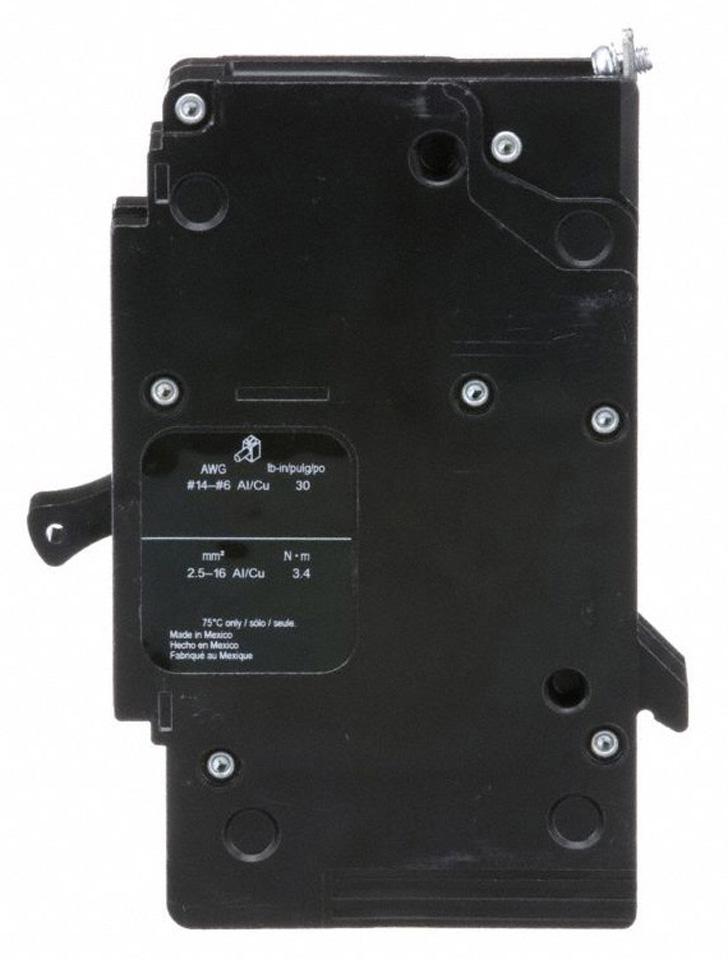

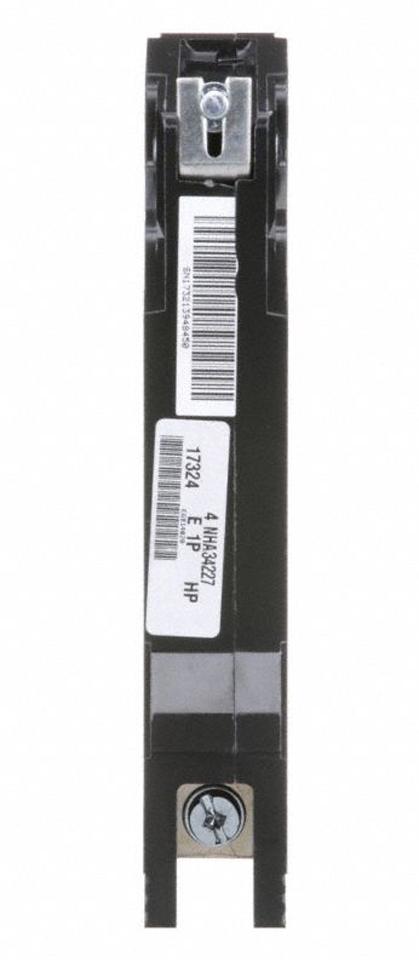

The Square D EJB14020 is a Molded Case Circuit Breaker. This type EJB circuit breaker is a member of The EJB Series family. The EJB14020 is a 1 pole, 277 Volt, 20 amp rated circuit breaker, with an AIC rating of 65kA@480V. The EJB14020 is manufactured by Schneider Electric. The EJB14020 uses a Bolt-On connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.


Specifications

  • Part Number: EJB14020
  • Manufacturer : Schneider Electric
  • Item Subcategory : Molded Case
  • Family : EJB Series
  • Type : EJB
  • Voltage : 277
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 65kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : J; E-Frame
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
  • Temp Rating : 104 °F (40 °C)

Product Data

  • UPC : 785901130505
  • GTIN : 00785901130505
  • Country of Origin : Mexico
  • Dimensions : Height 6.64 in (168.66 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
  • Weight : 1.3
  • Panel Type : NF panelboard
  • Standards : cULus
  • Certification : cULus
  • Wire Size : AWG 12...AWG 6 aluminum<br />AWG 14...AWG 6 copper
