EJ161410 - Hammond Eclipse Junior 16x14x10 NEMA 4 Steel Enclosure

EJ161410

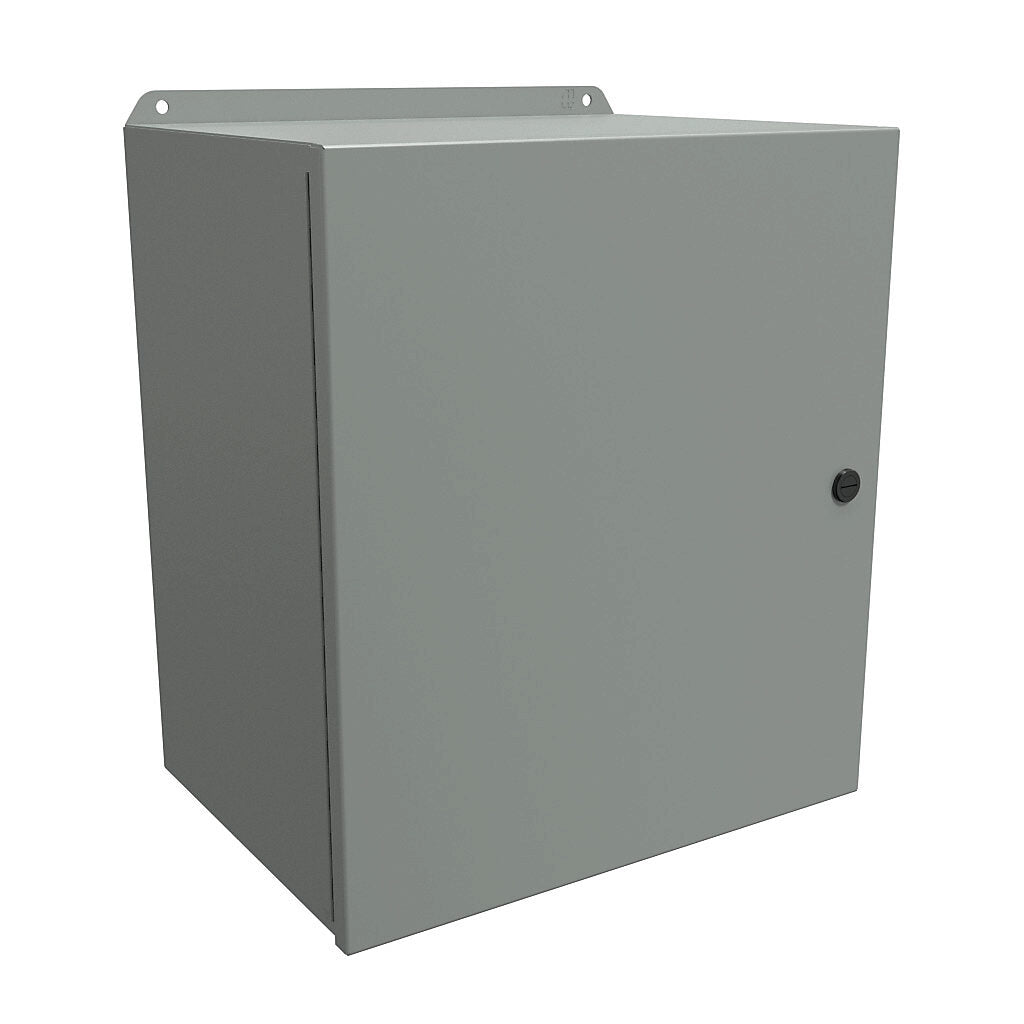

EJ161410 is a Hammond Eclipse Junior series wall-mount electrical enclosure designed for industrial and commercial applications requiring NEMA 3R/4/12/13 protection.

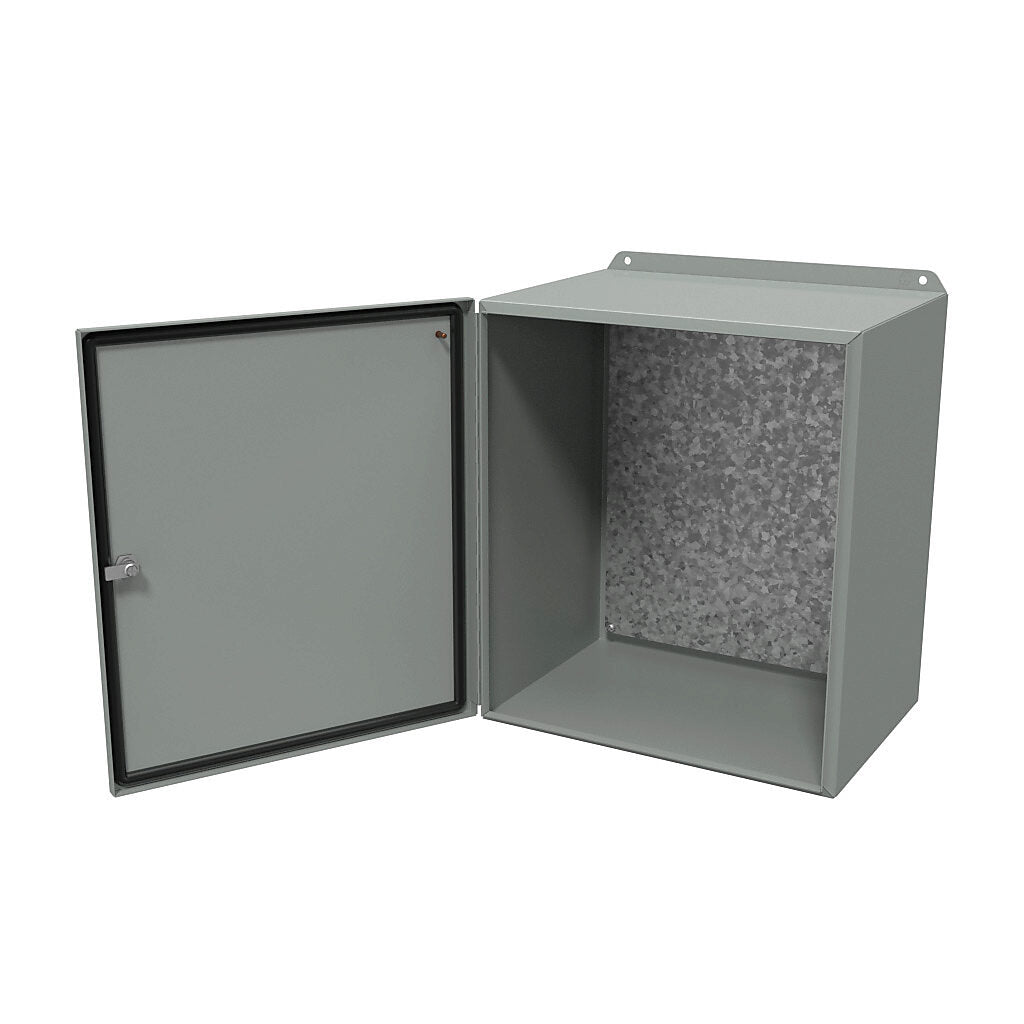

This single-door junction box features a carbon steel construction with ANSI 61 gray powder coat finish and dimensions of 16 inches height x 14 inches width x 10 inches depth (406 mm x 356 mm x 254 mm). The enclosure includes a continuously hinged cover with 304 stainless steel hinges, 1/4-turn semi-flush latch, and a pre-drilled mounting panel. The body and cover are formed from 16 gauge steel with 14 gauge welded mounting brackets for secure wall installation.

• NEMA Rating: 3R/4/12/13
• Dimensions: 16 in H x 14 in W x 10 in D
• Material: Carbon Steel
• Finish: ANSI 61 Gray Powder Coat
• Cover Type: Continuously Hinged
• Hinge Material: 304 Stainless Steel
• Latch Type: 1/4-turn Semi-Flush
• Mounting: Wall Mount
• Weight: 28 lbs
• Includes Pre-drilled Mounting Panel

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Please note that circuit breakers are not included with the enclosures and must be purchased separately.

Specifications

• Part Number: EJ161410
• Manufacturer : Hammond
• Brand : Hammond Mfg
• Category : Circuit Breaker
• Item Subcategory : Enclosure

Product Data

• UPC : 62398035788
• GTIN : 00623980357881
• Country of Origin : Canada
• Weight : 5.19
• Certification : UL 508A Type 3R, 4, 12 and 13; CSA Type 3R, 4, 12 and 13; Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66; NEMA Type 3R, 4, 12 and 13; IEC 60529, IP66
