Description
EJ16106LG

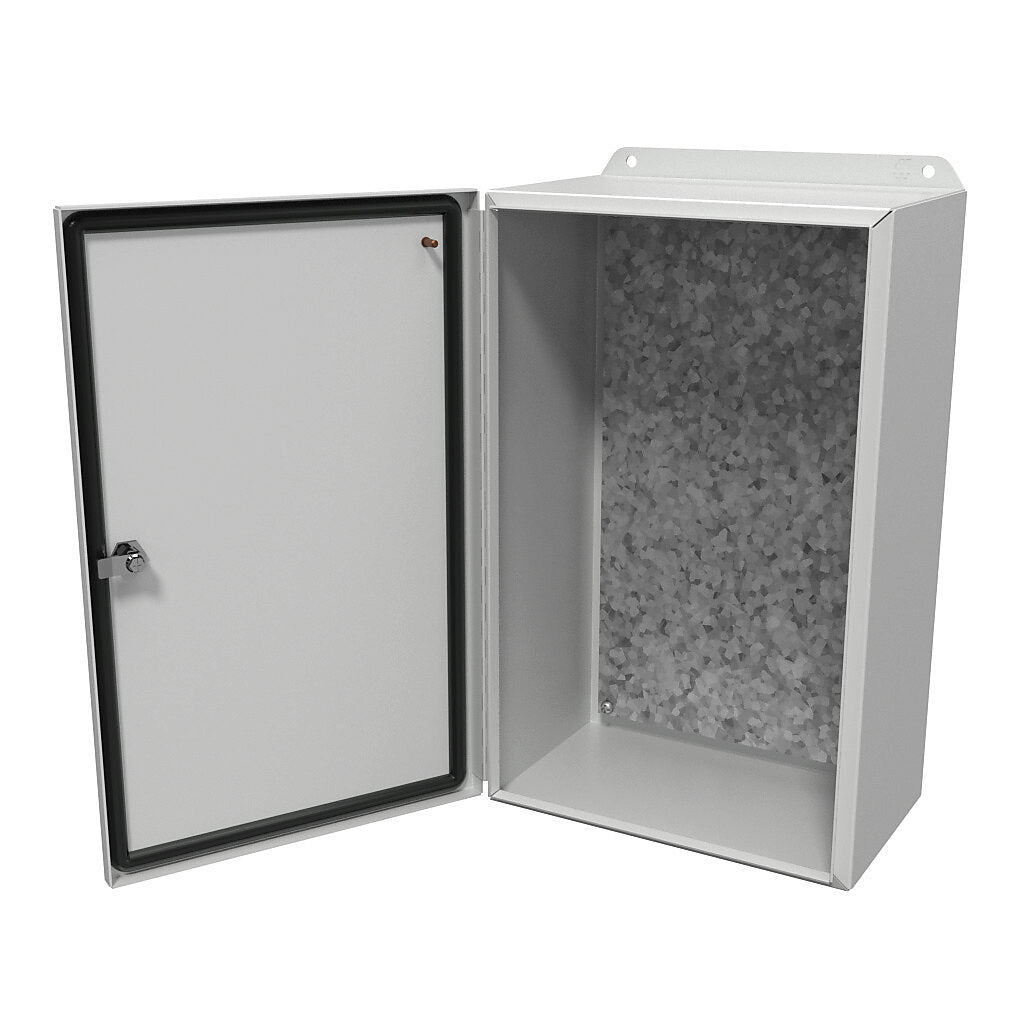

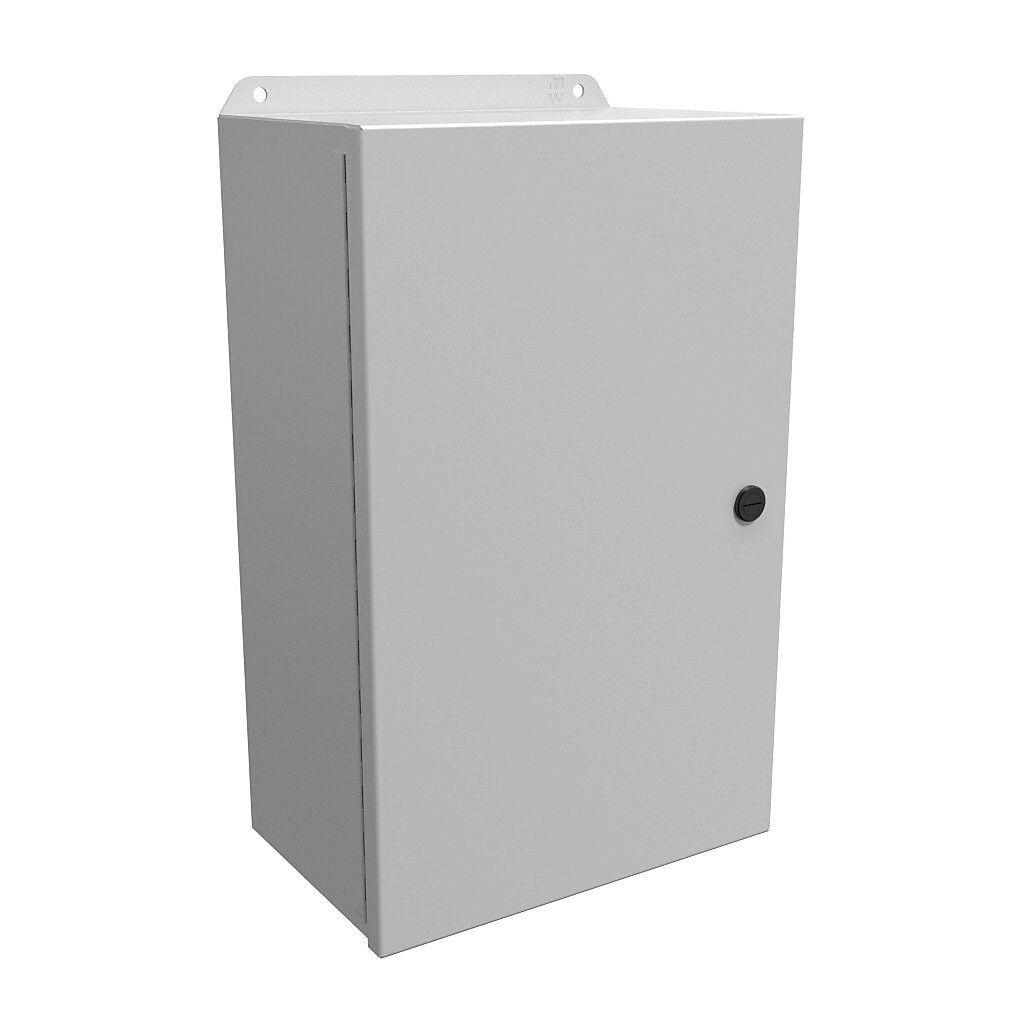

EJ16106LG is a Hammond Eclipse Junior series steel wall mount enclosure with NEMA 3R/4/12/13 ratings, measuring 16 x 10 x 6 inches.This enclosure features a light gray powder-coated carbon steel construction, a continuously hinged door with 304 stainless steel hinges providing 180-degree opening, and 14 gauge welded mounting brackets. It is designed for robust protection in industrial environments, compliant with UL508A standards.
- Dimensions: 16 x 10 x 6 inches (HxWxD)
- Material: Carbon steel with powder coat finish
- Color: Light gray (RAL 7035)
- Mounting Type: Wall mount with welded brackets
- Door: Continuous hinge with 304 stainless steel hinges
- Type Ratings: NEMA 3R, 4, 12, 13
- Series: Eclipse Junior
- Weight: 18 lbs (8.16 kg)
- Compliance: UL508A
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: EJ16106LG
- Manufacturer : Hammond
- Brand : Hammond Mfg
- Category : Circuit Breaker
- Item Subcategory : Enclosure
Product Data
- UPC : 62398005907
- GTIN : 00623980059075
- Country of Origin : Canada
- Weight : 5
- Certification : UL 508A Type 3R, 4, 12 and 13; CSA Type 3R, 4, 12 and 13; Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66; NEMA Type 3R, 4, 12 and 13; IEC 60529, IP66
