Description
EJ1086AL

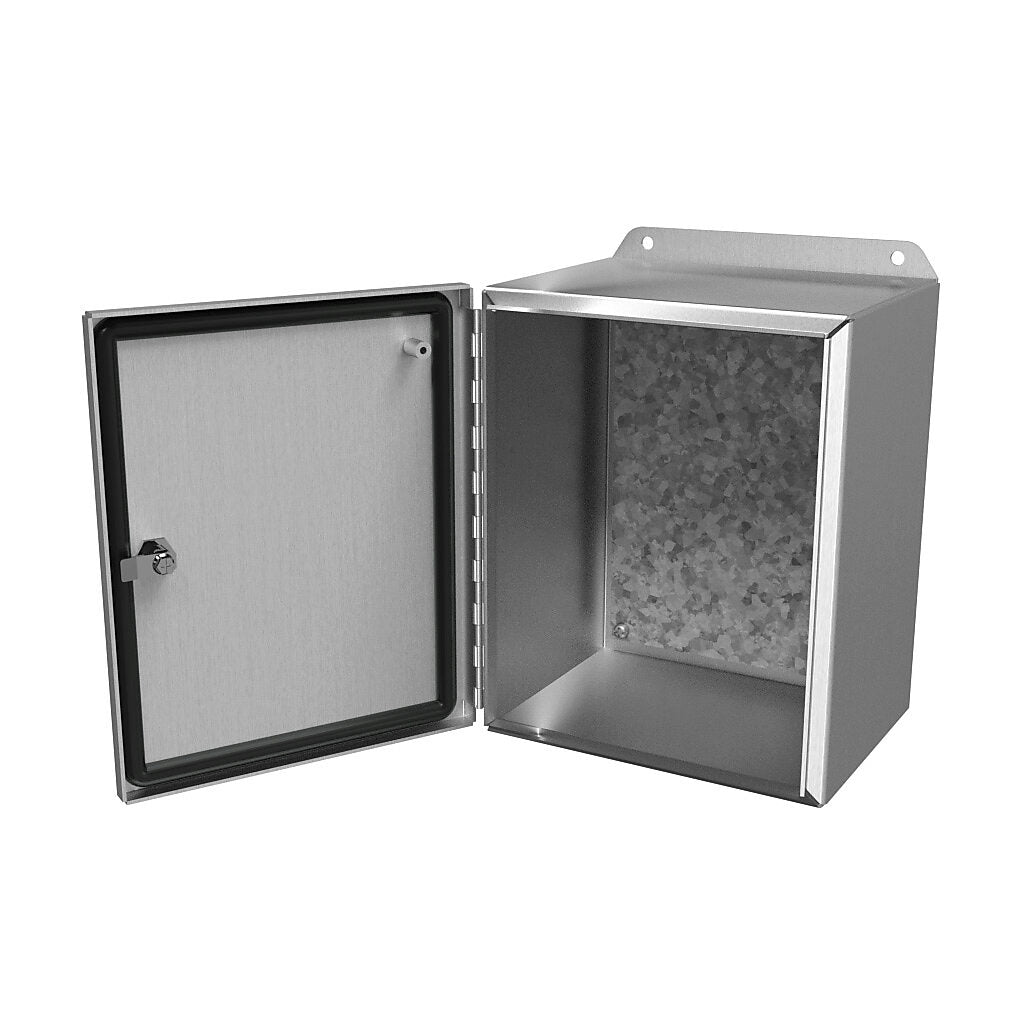

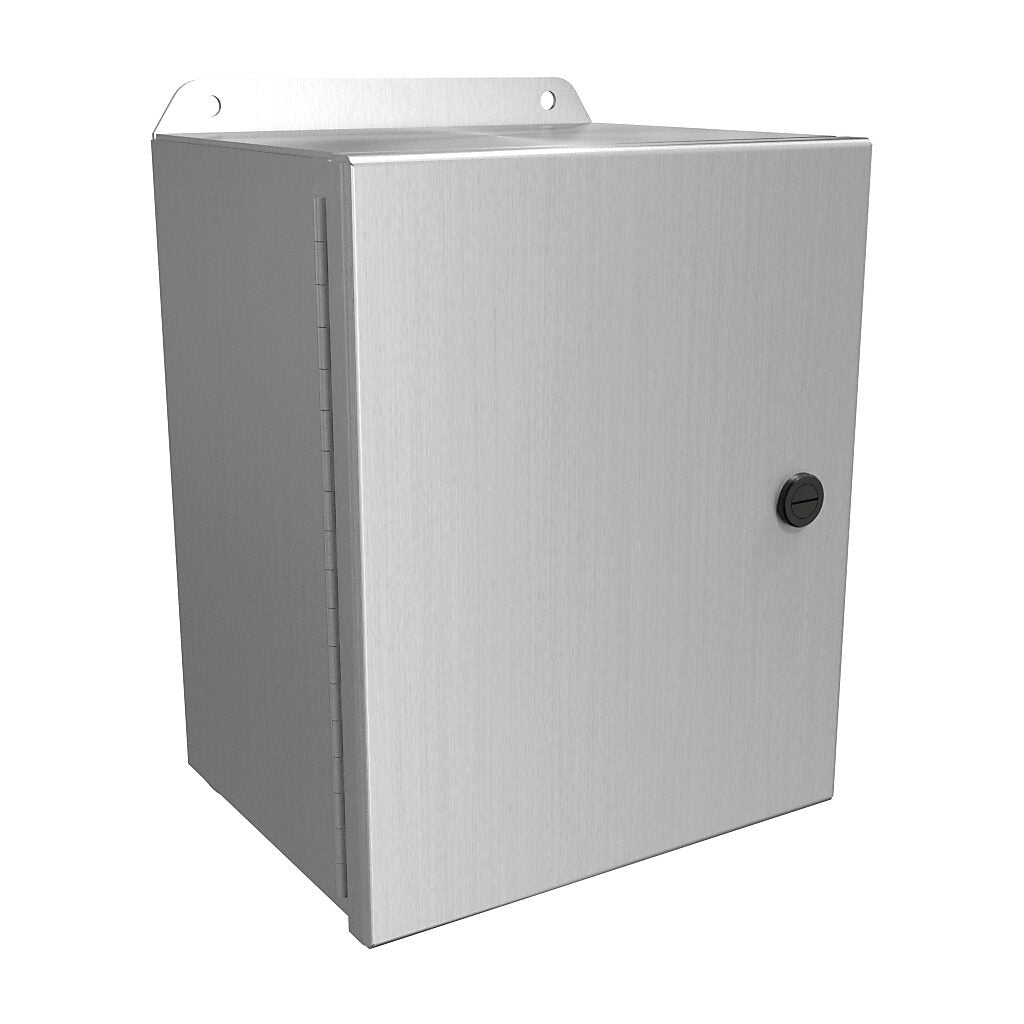

EJ1086AL is a Hammond Eclipse Junior series aluminum enclosure designed for reliable circuit breaker and junction box applications. This enclosure features a robust, single-door design with a 1/4-turn semi-flush 316 stainless steel latch for secure access and protection. Constructed from 5052-H32 aluminum, the EJ1086AL offers excellent durability and corrosion resistance. The enclosure is wall-mountable and provides a compact footprint ideal for a variety of industrial and commercial installations. Its continuous hinge door and panel facilitate easy installation and maintenance.
- Manufacturer: Hammond
- Series: Eclipse Junior N4X
- Material: 5052-H32 Aluminum
- Dimensions: 10 x 8 x 6 inches (254 x 203 x 152 mm)
- Mounting Type: Wall Mount
- Door Type: Single Door, Continuous Hinge
- Latch: 1/4-turn Semi-Flush 316 Stainless Steel
- Weight: 7 lbs (3.18 kg)
- Compliance: UL508A
- IP Rating: IP66
- NEMA Ratings: NEMA 3R, 4, 4X, 12, 13
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: EJ1086AL
- Manufacturer : Hammond
- Brand : Hammond Mfg
- Category : Circuit Breaker
- Item Subcategory : Enclosure
Product Data
- UPC : 62398005922
- GTIN : 00623980059228
- Country of Origin : Canada
- Weight : 7
- Certification : UL 508A Type 3R, 4, 4X, 12, and 13; CSA Type 3R, 4, 4X, 12, and 13; Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66; NEMA Type 3R, 4, 4X, 12 and 13; IEC 60529, IP66
