EIDA3060 S784 - Eaton Switch 60A 240-600V

EIDA3060 S784

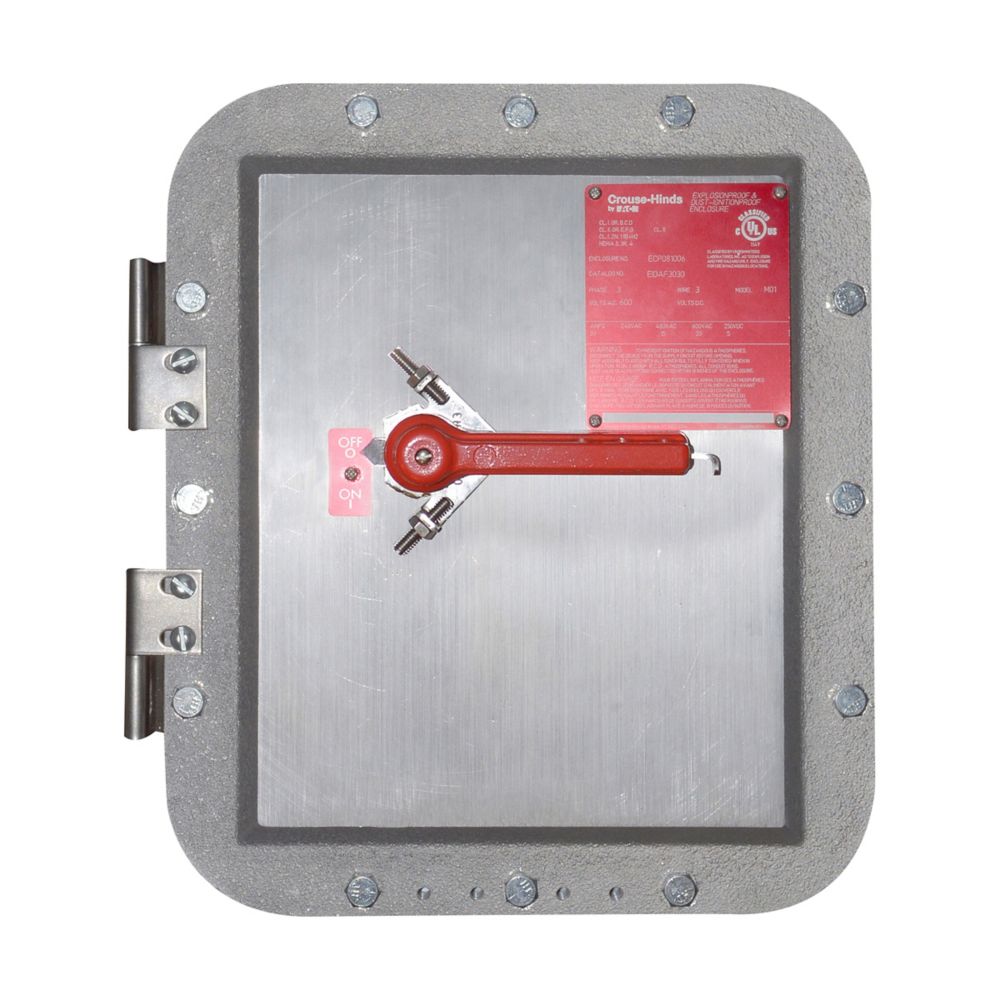

EIDA3060 S784 is a compact explosionproof non-fused disconnect switch manufactured by Eaton Crouse-Hinds for hazardous classified locations. This 60-ampere rated switch is designed for Class I, Division 1 & 2 (Groups B, C, D), Class I Zones 1 & 2, Class II Division 1 (Groups E, F, G), and Class III environments. The switch features a rotary handle actuator, copper-free aluminum construction, and includes a single auxiliary contact block. It is rated for 240-600 VAC and 250 VDC operation with horsepower ratings of 10 HP, 20 HP, and 40 HP. The enclosure measures 10.47 inches in length, 9.65 inches in width, and 12.47 inches in height, with a total weight of 36 pounds. Key Specifications

• Part Number: EIDA3060 S784
• Manufacturer: Eaton
• Amperage Rating: 60 A
• Voltage Rating: 240-600 V AC, 250 V DC
• Switch Type: Non-fused
• Horsepower: 10 HP / 20 HP / 40 HP
• Enclosure Type: Explosionproof
• Material: Copper-free aluminum
• Auxiliary Contacts: Single block
• NEMA Rating: 3, 3R, 4, 7, 9
• Actuator: Rotary handle
• Dimensions: 10.47 in L x 9.65 in W x 12.47 in H
• Weight: 36 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EIDA3060 S784
• Manufacturer : Eaton
• Brand : Eaton
• Category : Switch
• Item Subcategory : EID Explosionproof, Compact Disconnect Switches
• Voltage : 240-600 V AC, 250 V DC
• Amperage : 60 A
• Horse Power : 10 HP / 20 HP / 40 HP
• Class Rating : Class I Division 1 & 2 Groups B, C, D; Class I Zones 1 & 2; Class II Division 1 Groups E, F, G; Class III
• Aux Contacts : Single block
• Switch Style : Rotary handle
• Nema Rating : 3, 3R, 4, 7, 9
• Switch Type : Non-fused
• Enclosure : Explosionproof
• Metal Type : Copper-free aluminum
• Shipping Dimensions : 10.47 in L x 9.65 in W x 12.47 in H
• Material : Copper-free aluminum
• NEC hazardous rating : Class I, Zone 2 Class I, Division 1 Class I, Division 2 Class I, Zone 1 Class II, Division 1 Class III
• Special features : Auxiliary contact (single block)

Product Data

• UPC : 662276155978
• Dimensions : 10.47 in x 12.47 in x 9.65 in (Length/Depth x Height x Width)
• Weight : 36 lb
