Product Info
- Manufacturer:Eaton
Description
EIBA3035

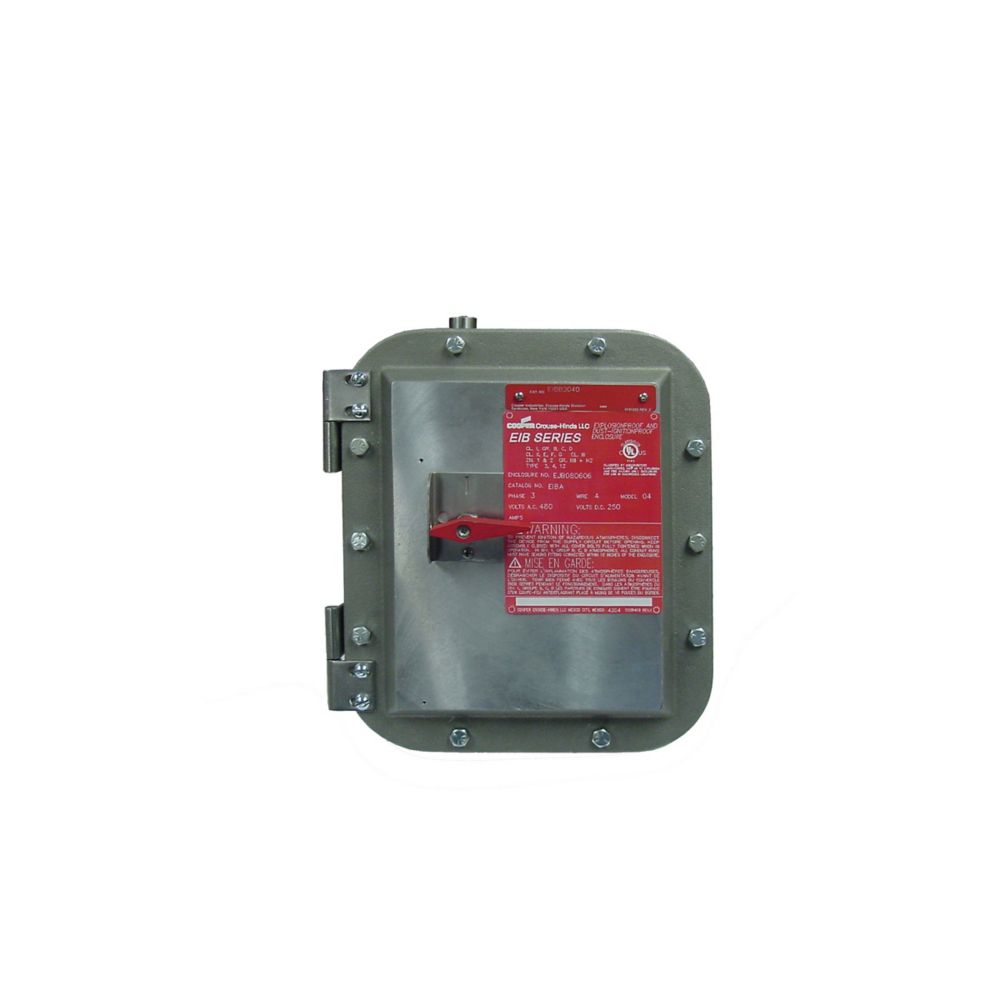

EIBA3035 is an Eaton Crouse-Hinds series EIB explosionproof compact circuit breaker designed for hazardous locations. Key Specifications
- Part Number: EIBA3035
- Manufacturer: Eaton
- Amperage: 35 A
- Voltage: 600 V
- Poles: 3
- Frame Type: EG
- AIC Rating: 18 kA at 600V
- Enclosure: NEMA 4, Class I Division 1 Groups B, C, D
- Construction: Bolted/ground joint cover, copper-free aluminum
- Standards: UL 1203, CSA C22.2 No. 30
Specifications
- Part Number: EIBA3035
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : EIB Explosionproof Compact Circuit Breakers
- Voltage : 600 V
- Amperage : 35 A
- Poles : 3
- AIC rating : 18 kA
- Frame Size : EG
- Nema Rating : NEMA 4
- Enclosure : Class I Division 1 Groups B, C, D
- Metal Type : Copper-free aluminum
- Mounting : Bolted/ground joint cover
- Trip Type : Fixed thermal, Fixed magnetic
- NEC hazardous rating : Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
Product Data
- UPC : 662276097353
- GTIN : 00662276000000
- Dimensions : 10.47 in x 12.47 in x 7.65 in (Length/Depth x Height x Width)
- Weight : 60 lb
- Standards : NEC/CEC
