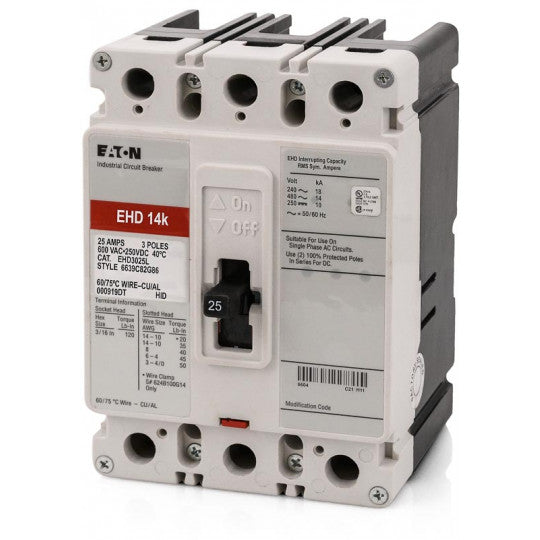

EHD3025L - Cutler Hammer 25A 480VAC 3 Pole Molded Case Circuit Breaker, Series C, Thermal Magnetic, Panel Mount

EHD3025L

EHD3025L is a Cutler Hammer 3 pole molded case circuit breaker rated for 25 amperes and 480 volts AC, designed for panel mounting.This Eaton Cutler Hammer Series C (EHD) circuit breaker features fixed thermal and fixed magnetic trip units with a standard interrupt rating of 14 kA at 480 VAC and 18 kA at 240 VAC. It supports 3 poles with line and load side lug terminals, suitable for 14 to 1/0 AWG wire sizes. The breaker is designed for 50/60 Hz operation and complies with NEMA AB1-1993 enclosure standards. It includes patented high-speed blow-open contact design for superior performance and is suitable for reverse feed applications.

Key Specifications
• Amperage: 25 A
• Voltage: 480 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 14 kA at 480 VAC, 18 kA at 240 VAC
• Series/Frame: C Series, EHD Frame
• Trip Unit: Fixed Thermal / Fixed Magnetic (Non-Interchangeable)
• Mounting Type: Panel Mount
• Connection: Line and Load Lug Terminals
• Wire Range: 14 to 1/0 AWG
• Frequency: 50/60 Hz
• Certifications: NEMA AB1-1993
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: EHD3025L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EHD
• Voltage : 480
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 786679317235
• GTIN : 00786679317235
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
