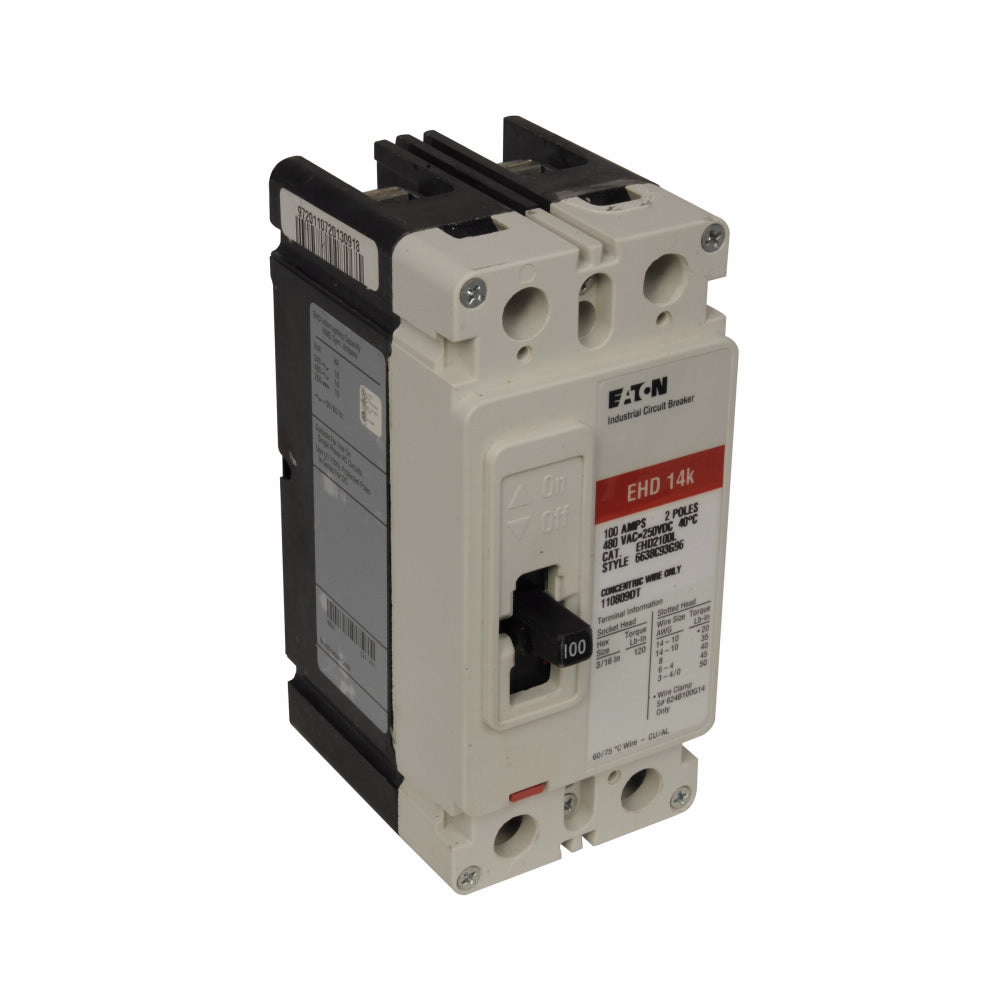

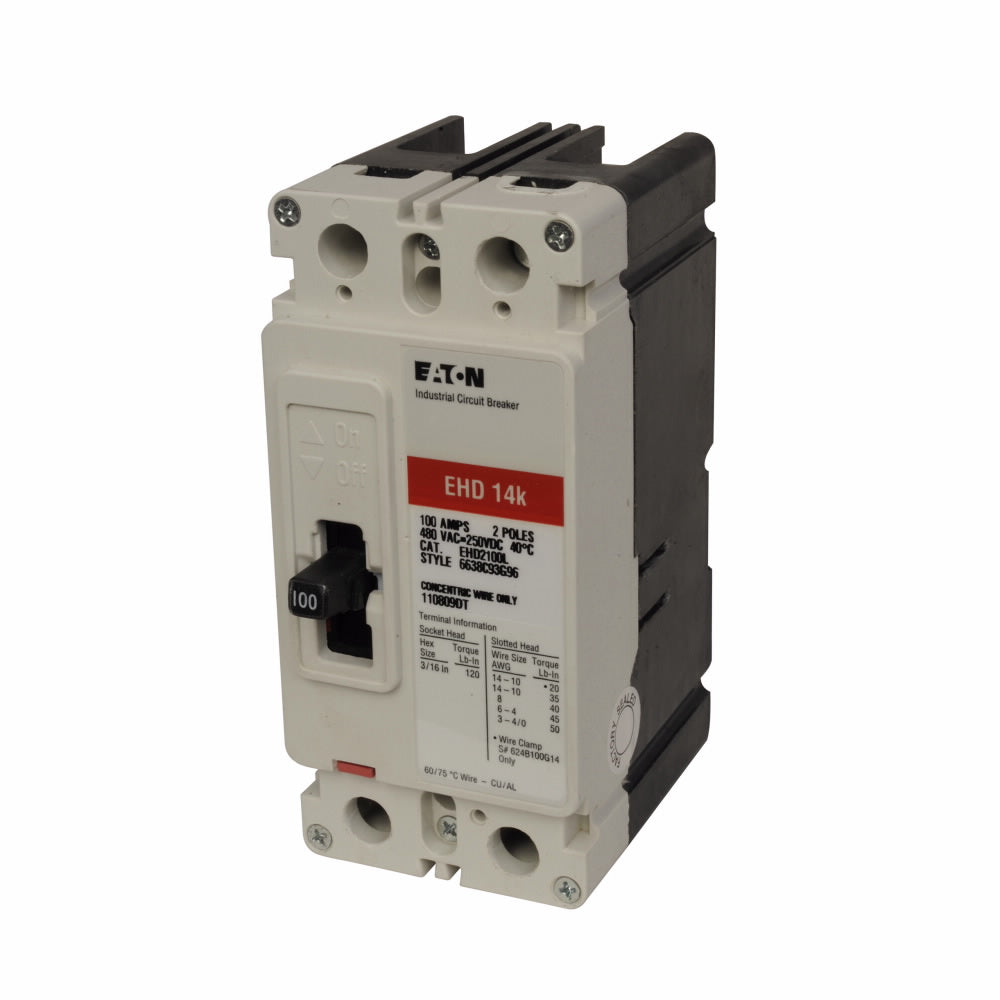

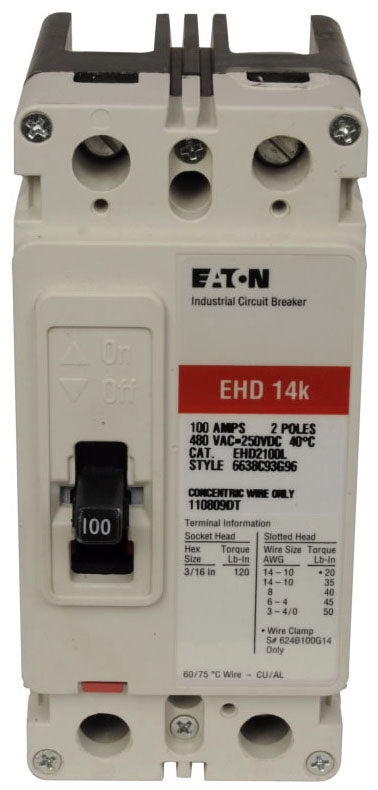

EHD2050 - Eaton 50 Amp 480 VAC 2 Pole Series C Molded Case Circuit Breaker F Frame

EHD2050

EHD2050 is a 2 pole, 50 amp, 480 VAC molded case circuit breaker from Eaton's Series C with F frame and thermal magnetic protection.This Eaton EHD2050 circuit breaker features a thermal magnetic trip unit (T186) with long-time and instantaneous trip functions, a 14 kA interrupt rating at 480 VAC, and feed-thru connection type. It is designed for single-phase applications and includes line and load side lug terminals.

• Amperage: 50 A
• Voltage: 480 VAC / 250 VDC
• Poles: 2
• Frame Type: F Frame
• Trip Unit: T186 thermal magnetic
• Interrupt Rating: 14 kA at 480 VAC
• Connection: Feed-Thru
• Phase: 1
• Series: Eaton Series C
• Certifications: UL Listed
• Dimensions: 6 x 2.75 x 3.38 inches
• Weight: 3.15 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EHD2050
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EHD
• Voltage : 480
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 100A/F
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679317471
• GTIN : 00786679317471
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 3
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
