2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

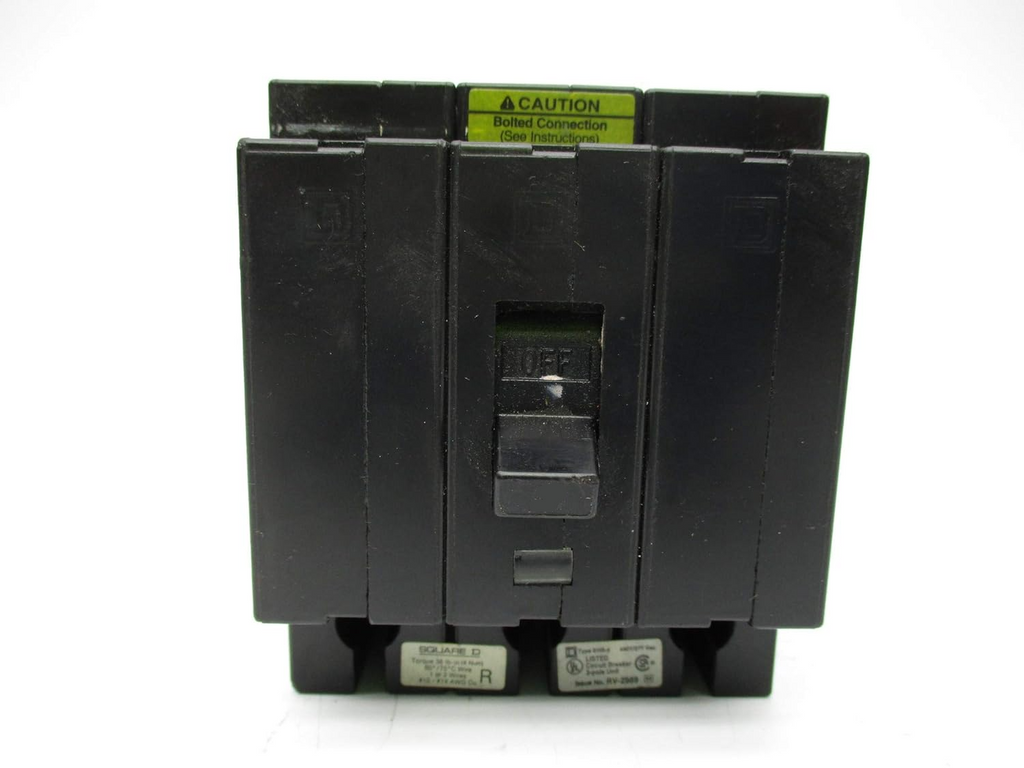

EHB34090
EHB34090 is a 90 amp, 3 pole circuit breaker from Square D designed for reliable protection in industrial and commercial electrical systems.This Square D EHB34090 circuit breaker features a bolt-on mounting style and is rated for 480 volts AC. It has a 14kA interrupting capacity at 277V and uses a thermal magnetic trip unit for precise overload and short circuit protection. The breaker is built on the robust EHB frame, ensuring durability and compatibility with Series 3 and E1 panelboards.
- Amperage: 90 Amps
- Voltage: 480 Volts AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 14kA @ 277V
- Frame Type: EHB
- Trip Unit: Thermal Magnetic
- Compatible with Series 3 and E1 panelboards
- Dimensions: Approx. 3.00"W x 3.50"L x 2.63"D
- Certifications: Meets industry standards for circuit protection
Specifications
- Part Number: EHB34090
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EHB Series
- Type : EHB
- Voltage : 480
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 040892655568
- GTIN : 00040892655568
- Weight : 1
