- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description

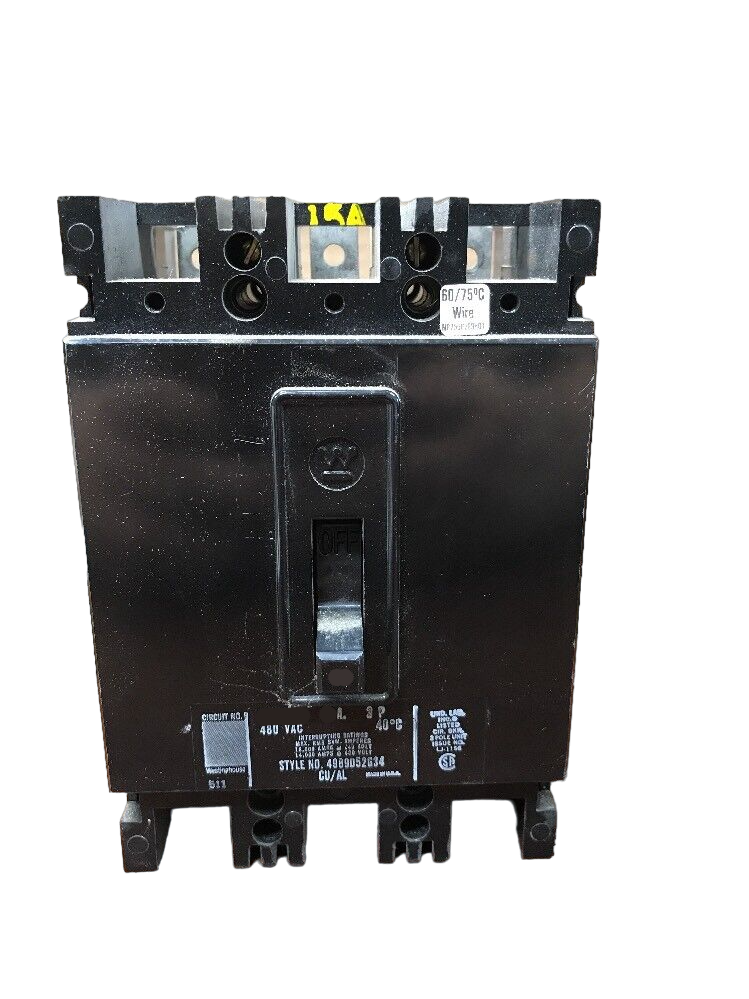

EHB3090L
EHB3090L is a Westinghouse EHB series molded case circuit breaker designed for industrial and commercial power distribution applications requiring reliable thermal magnetic protection. This 90 ampere, 3 pole breaker operates at a maximum voltage of 480 volts AC and features a non-interchangeable thermal magnetic trip unit rated for continuous operation at 40 degrees Celsius. The EHB frame style provides compact, space-efficient mounting in panelboards and distribution equipment. Key Specifications
- Part Number: EHB3090L
- Manufacturer: Westinghouse
- Circuit Breaker Type: EHB Molded Case
- Amperage Rating: 90 Amp
- Poles: 3
- Maximum Voltage: 480V AC
- Trip Unit: Thermal Magnetic Non-interchangeable
- Continuous Rating: 40 degrees Celsius
- Interrupting Rating: 25,000 Amp Symmetrical at 480V AC
Specifications
- Part Number: EHB3090L
- Manufacturer : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : AB DE-ION
- Type : EHB
- Voltage : 480
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 11
