Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
EHB24090

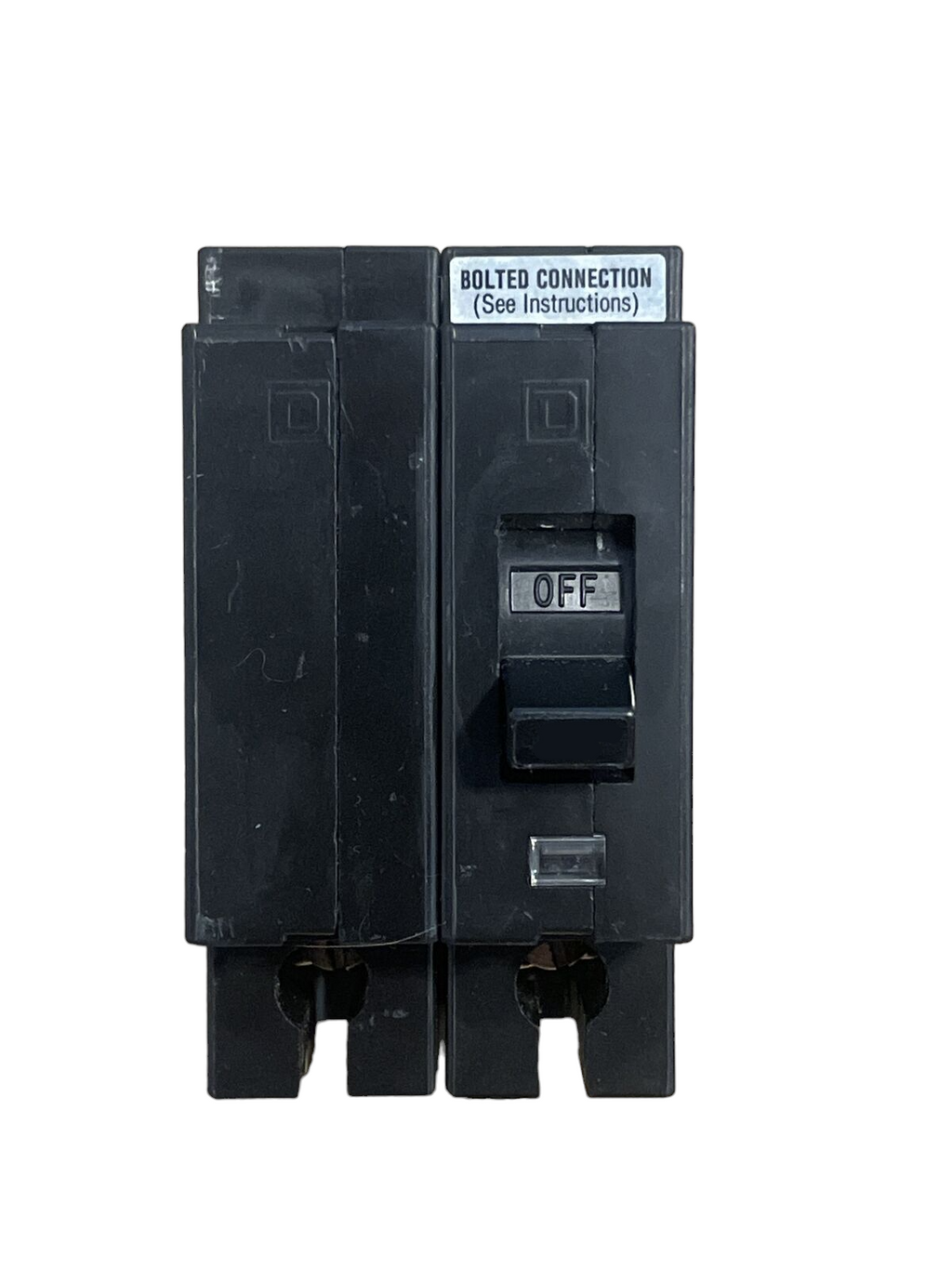

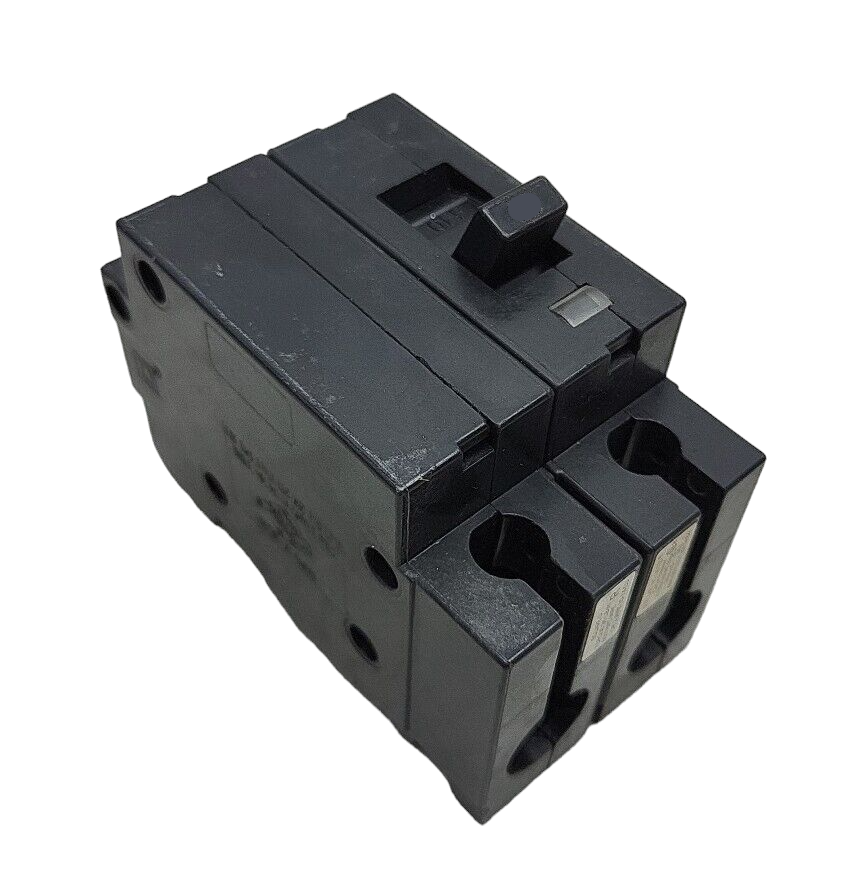

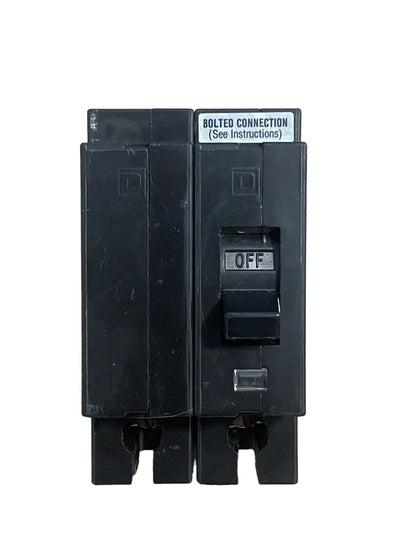

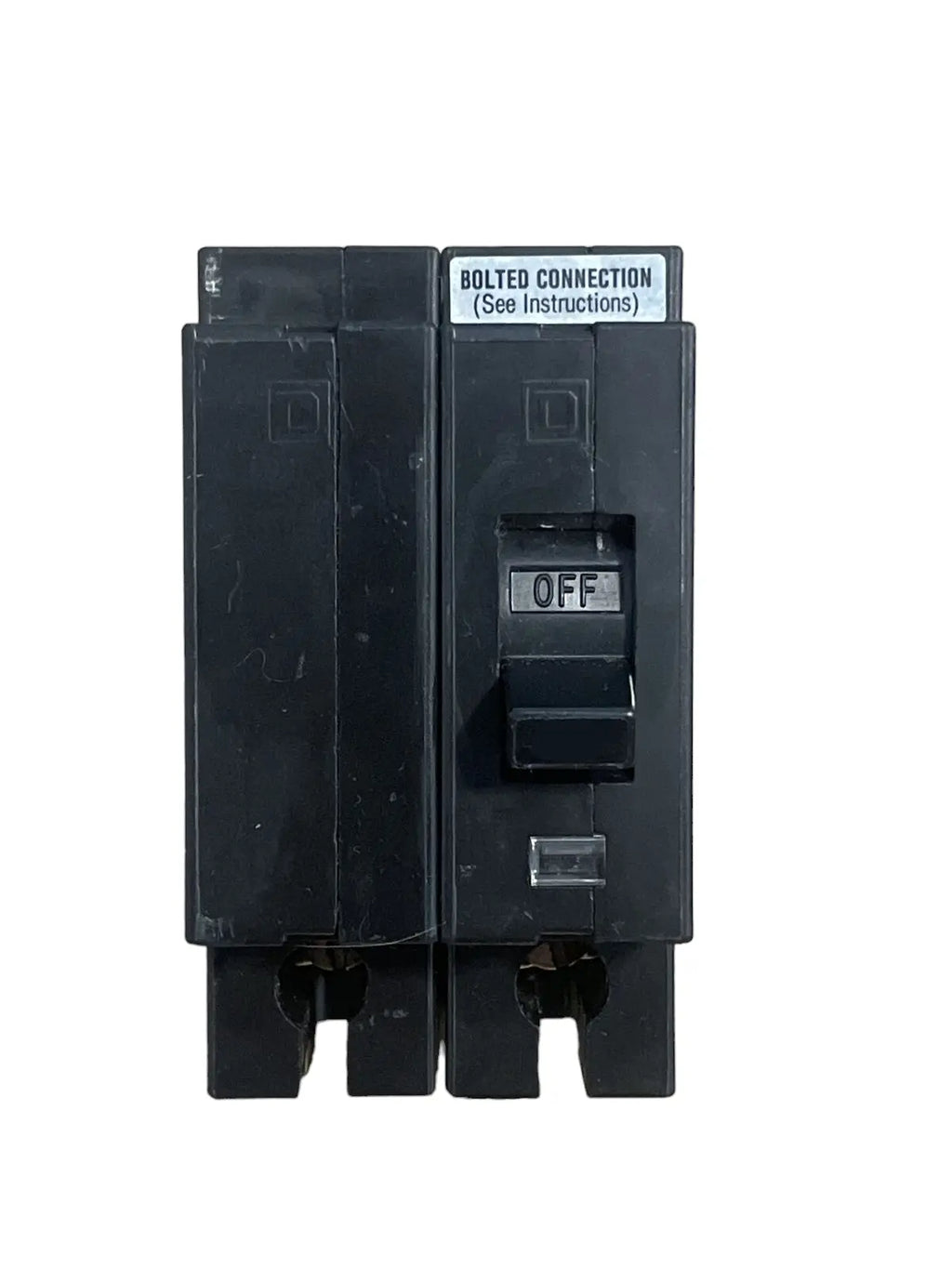

EHB24090 is a 2-pole, 90 amp, 480 Volt bolt-on circuit breaker from Square D designed for reliable thermal magnetic protection.This Square D EHB24090 circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has a bolt-on mounting type and an interrupting rating of 14kA at 277V. The breaker is rated for single-phase use and is part of the EHB series with an EH frame. It is suitable for use in Square D NF panelboards and supports aluminum and copper lug connections.
- Amperage: 90A
- Voltage: 277/480 VAC
- Poles: 2
- Phase: 1
- Mounting Type: Bolt-On
- Interrupting Rating: 14kAIC @ 277V
- Series/Frame: EHB Series / EH Frame
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Connection: Aluminum and Copper Lugs
- Application: HID-Rated / HACR-Rated
- Certifications: Meets applicable UL standards
Specifications
- Part Number: EHB24090
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EHB Series
- Type : EHB
- Voltage : 480
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901883814
- Weight : 1
