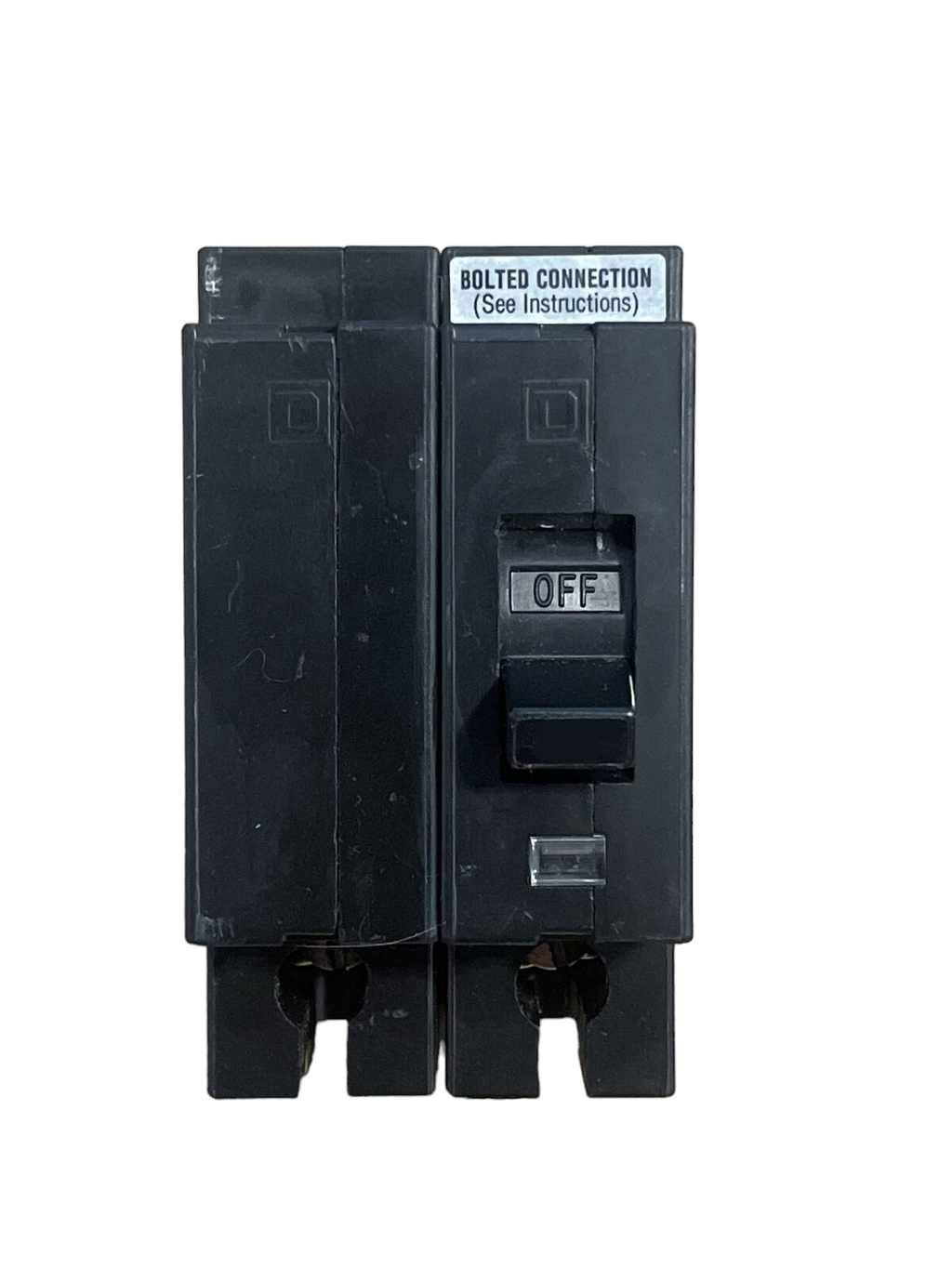

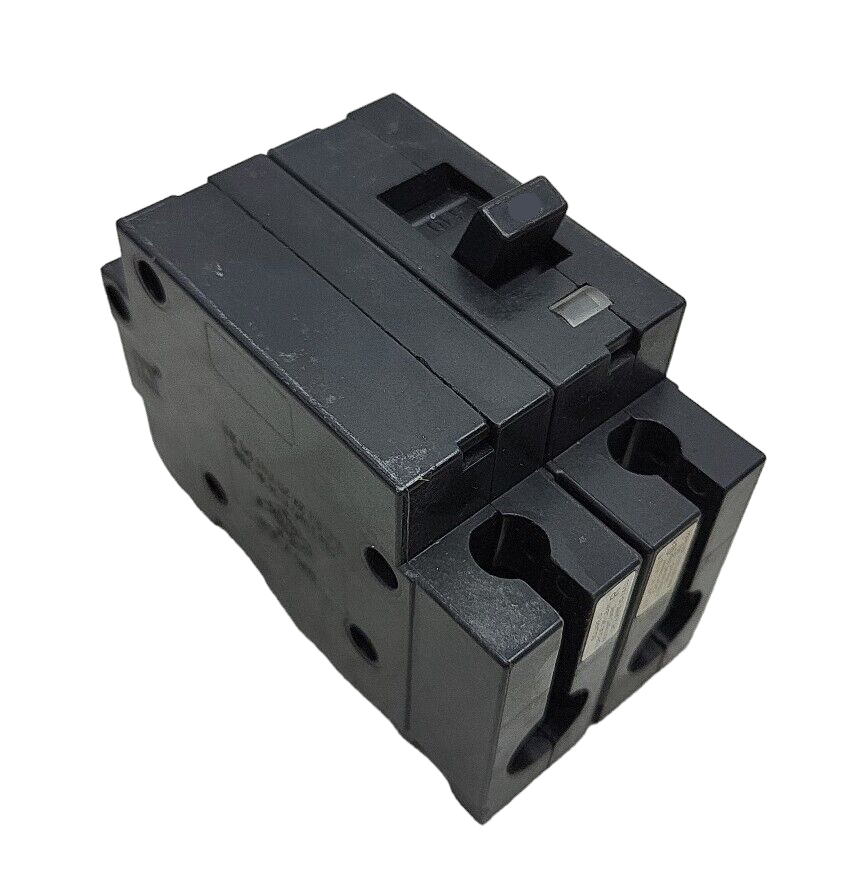

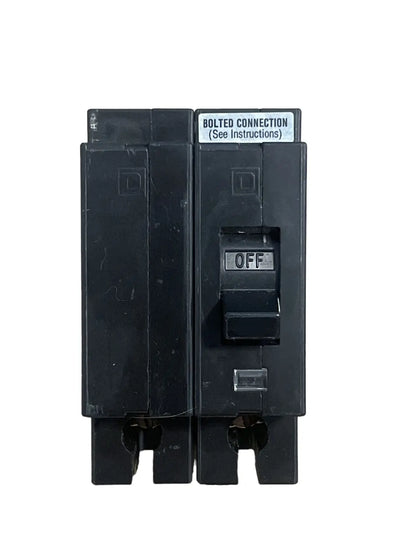

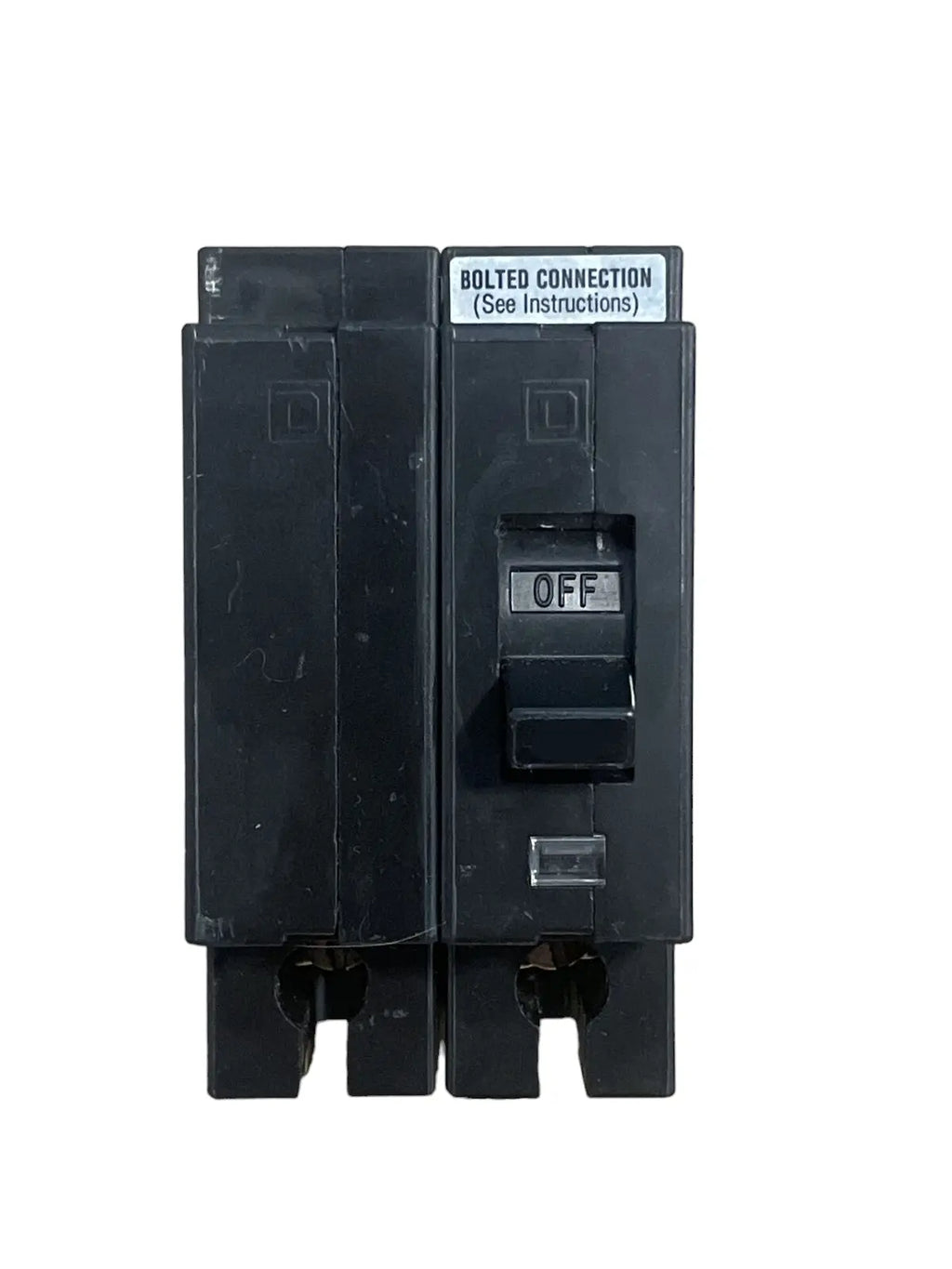

EHB24060 - Square D 60 Amp 480V 2 Pole Bolt-On Molded Case Circuit Breaker, EHB Series, 14kA Interrupt, Thermal Magnetic Trip, UL & CSA Certified

EHB24060

EHB24060 is a Square D molded case circuit breaker designed for industrial and commercial power distribution applications.

This 2-pole, 60 amp, 480V AC circuit breaker features a bolt-on mounting style, thermal magnetic trip unit, and a 14kA interrupting rating at 277V. It is part of the EHB series and is suitable for use in NEHB panelboards. The breaker is UL Listed and CSA Certified for safety and compliance.

Key Specifications

• Part Number: EHB24060
• Manufacturer: Square D
• Amperage: 60A
• Voltage: 480V AC (277/480Y)
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 14kA @ 277V
• Series/Frame: EHB (EH Frame)
• Trip Unit: Thermal Magnetic (Long Time & Instantaneous)
• Certifications: UL Listed, CSA Certified
• Application: Industrial, Commercial
• Panel Compatibility: NEHB Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EHB24060
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EHB Series
• Type : EHB
• Voltage : 480
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 14kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901031758
• GTIN : 00785901031758
• Weight : 1
