Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
EHB24040

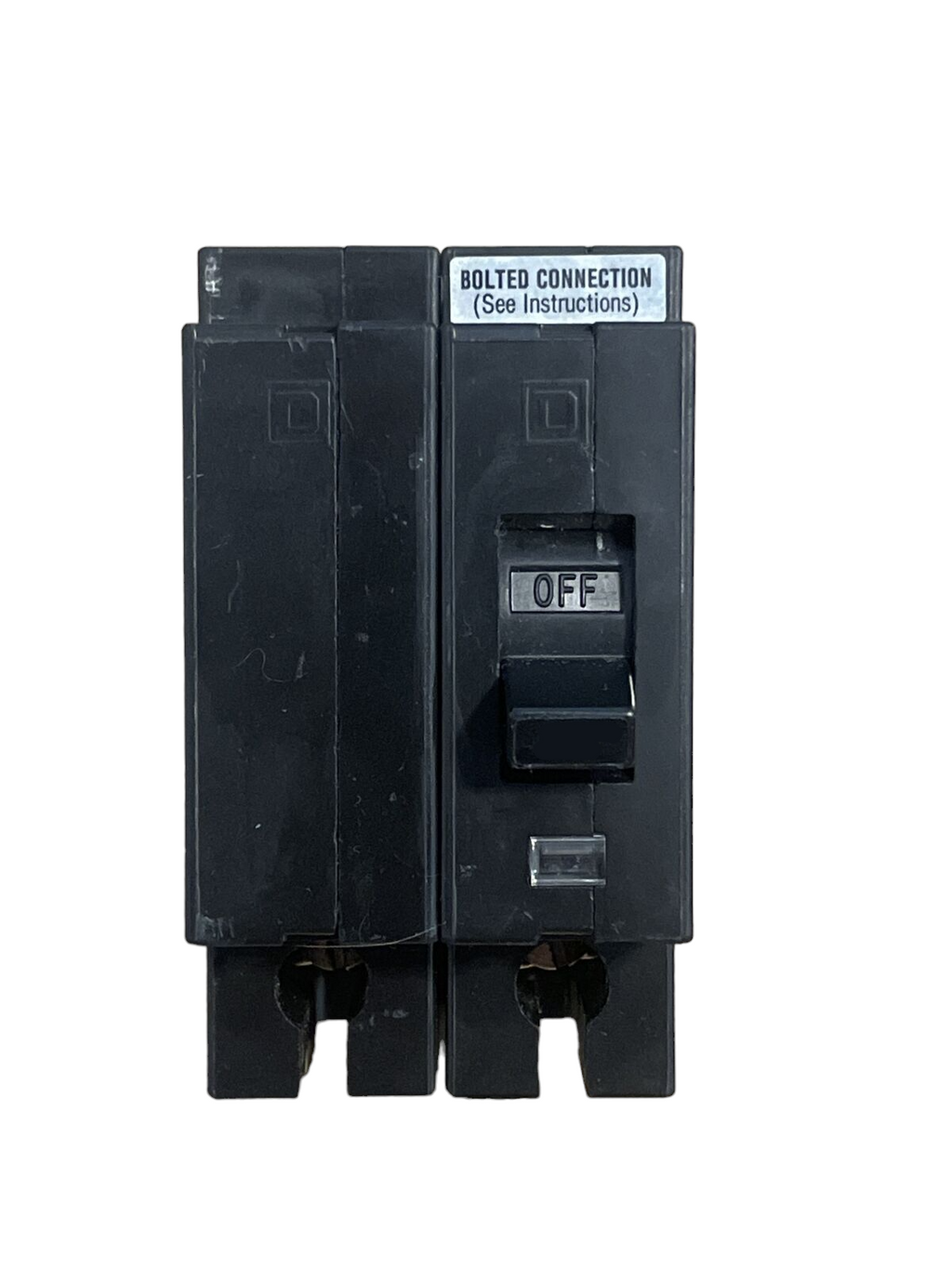

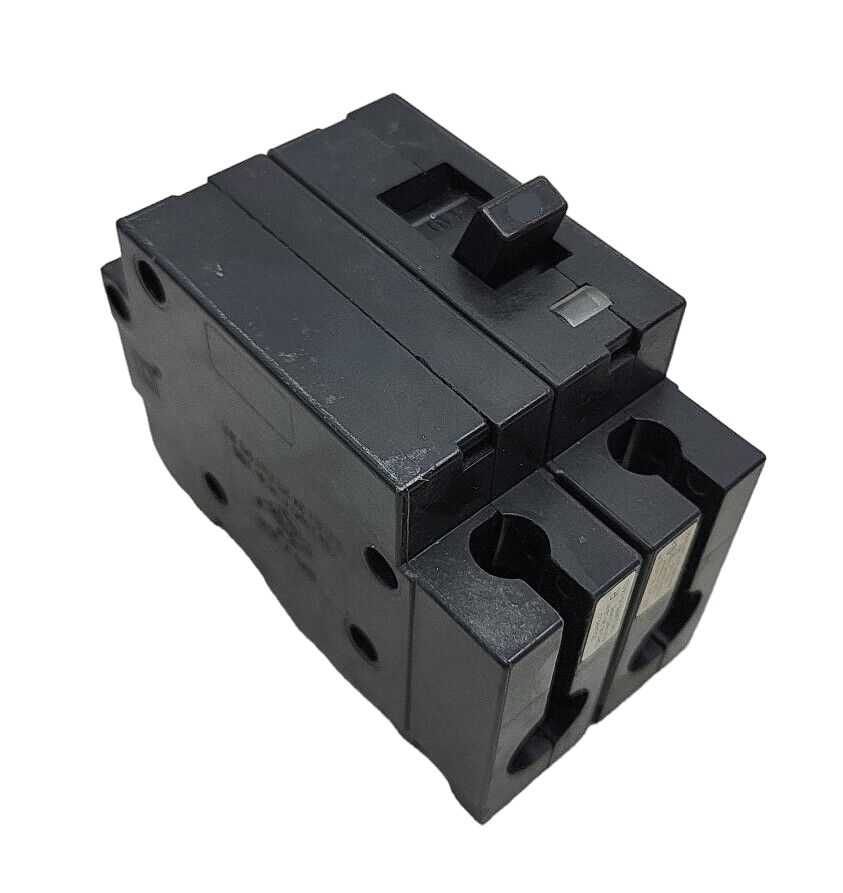

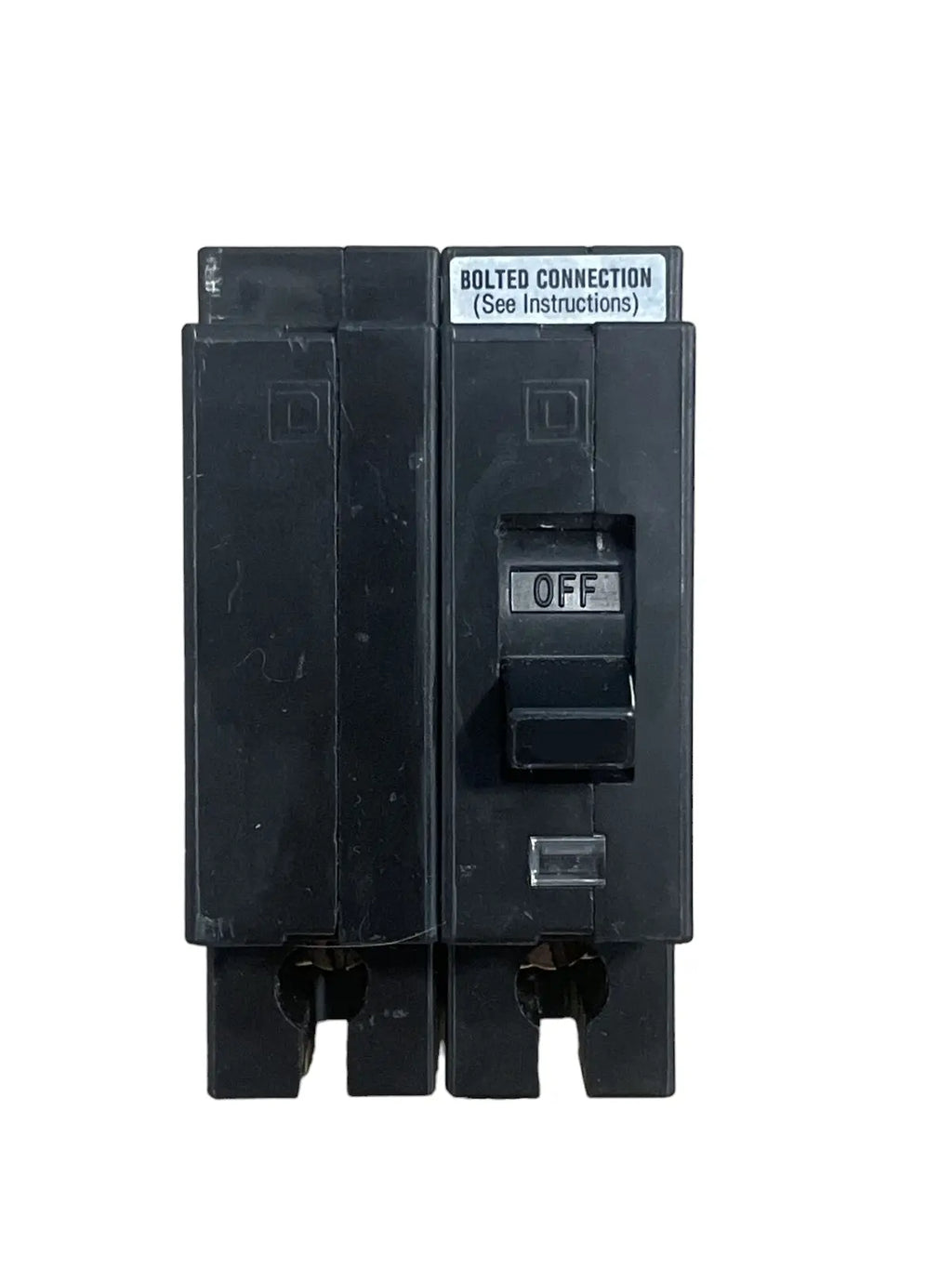

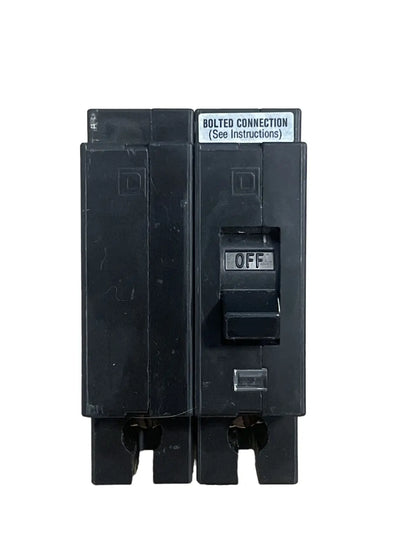

EHB24040 is a 2 pole molded case circuit breaker manufactured by Square D with a 40 amp current rating and 480Y/277VAC voltage rating. This thermal magnetic circuit breaker is designed for industrial and commercial power distribution applications, offering reliable overload and short circuit protection. The EH frame design provides compact mounting in panelboards and distribution equipment.
- Amperage: 40A
- Poles: 2
- Voltage: 480Y/277VAC
- Frame Type: EH
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 14kA at 480V
- Mounting Type: Bolt-On
- Wire Range: AWG 12 to AWG 2/0 aluminum; AWG 14 to AWG 2/0 copper
Specifications
- Part Number: EHB24040
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EHB Series
- Type : EHB
- Voltage : 480
- Amperage : 40
- Phase : 1
- Poles : 2
- AIC rating : 14kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 646826272131
- GTIN : 00635909357193
- Weight : 1
