Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
EHB1080S

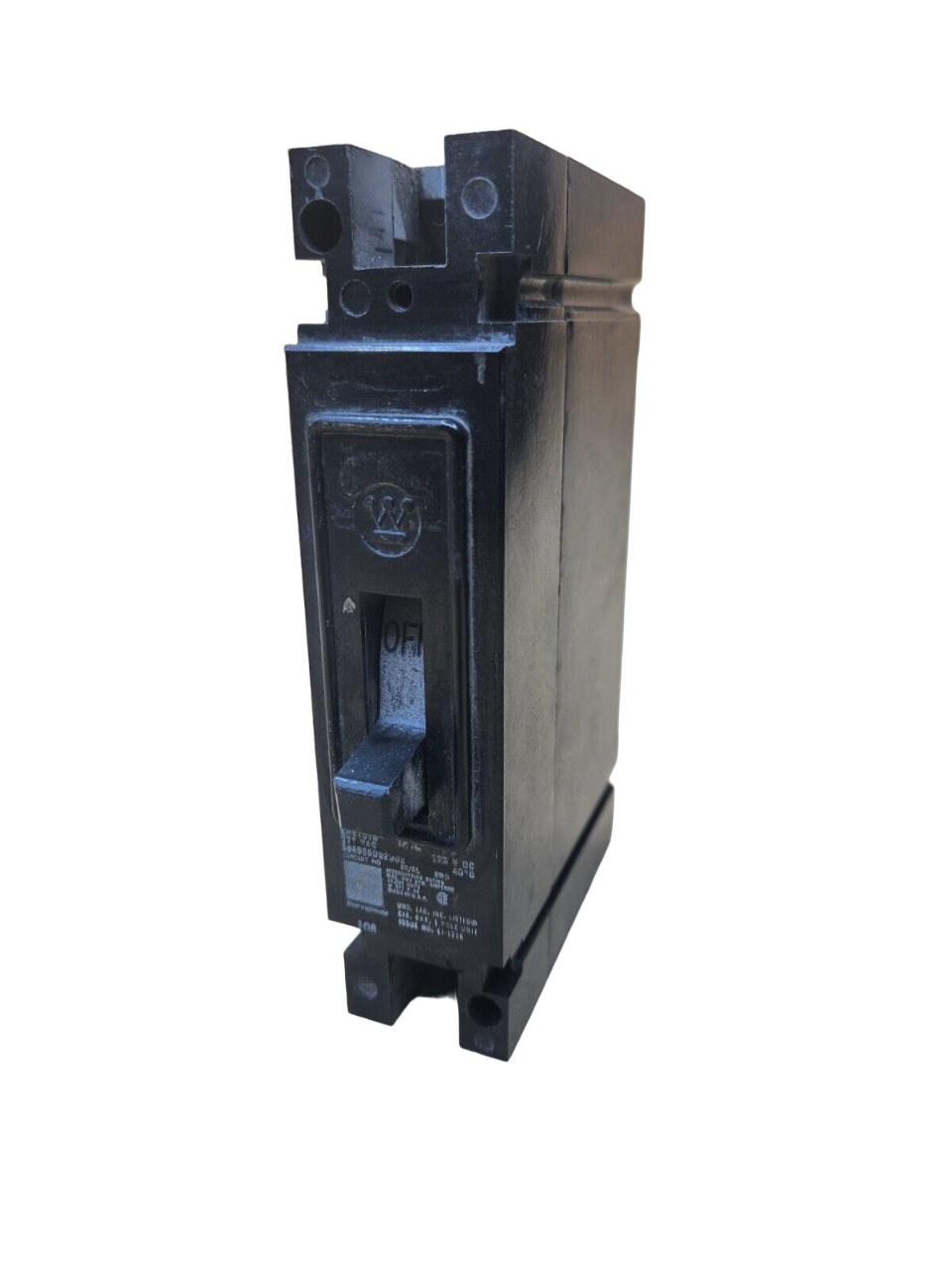

EHB1080S is a Westinghouse 80-ampere, single-pole circuit breaker rated for 277 volts AC maximum, designed for reliable overload and short-circuit protection in electrical systems. This thermal magnetic breaker features a compact design suitable for branch circuit applications and industrial control panels. Key Specifications
- Amperage: 80 Amp
- Poles: 1
- Voltage Rating: 277V AC Maximum
- Trip Unit: Thermal Magnetic
- Interrupting Capacity: 14,000 Amp Symmetrical at 277V AC
- Frame Type: EHB
- Mounting: Bolt-on configuration
- Dimensions: 1.375 inches x 6 inches x 3.375 inches
- Thermal Overload Protection: Automatic
- Short-Circuit Protection: Fixed trip unit
Specifications
- Part Number: EHB1080S
- Manufacturer : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : AB DE-ION
- Type : EHB
- Voltage : 277
- Amperage : 80
- Phase : 1
- Poles : 1
- AIC rating : 10kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 1
