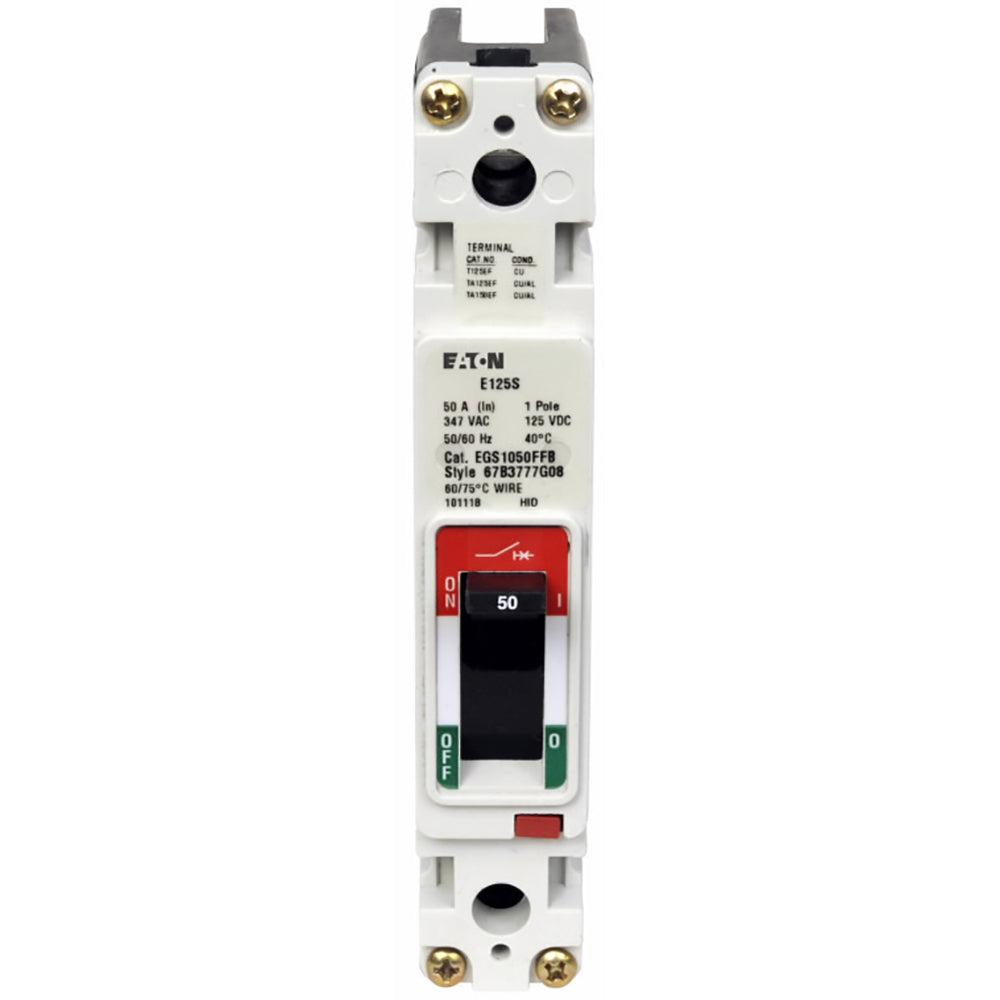

EGS1050FFB - Cutler Hammer 50A 600Y/347V Single-Pole EG-Frame Molded Case Circuit Breaker Series G Bolt-On

EGS1050FFB

EGS1050FFB is a Cutler Hammer molded case circuit breaker designed for reliable circuit protection in electrical systems.

This Series G EG-frame breaker features a 50 ampere rating with a single-pole configuration and a voltage rating of 600Y/347 Vac. It utilizes a fixed thermal and fixed magnetic trip unit and is designed for bolt-on mounting. The breaker has an interrupt rating of 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, and 22 kAIC at 600Y/347 Vac, ensuring robust fault current interruption. It is IEC rated and CE marked for compliance with international standards.

• Amperage: 50 A
• Voltage Rating: 600Y/347 Vac
• Number of Poles: Single-pole
• Frame Type: EG-frame
• Series: Series G
• Trip Type: Fixed thermal, fixed magnetic
• Mounting Type: Bolt-on
• Interrupt Rating: 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, 22 kAIC at 600Y/347 Vac
• Frequency: 50/60 Hz
• Certifications: IEC Rated, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGS1050FFB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGS
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 85kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685382036
• GTIN : 00786685382036
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 1 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : IEC Rated,UL Listed,CSA Certified,CE Marked
