Product Info
- Manufacturer:Eaton
- Sub-Category:Automatic Transfer
Description

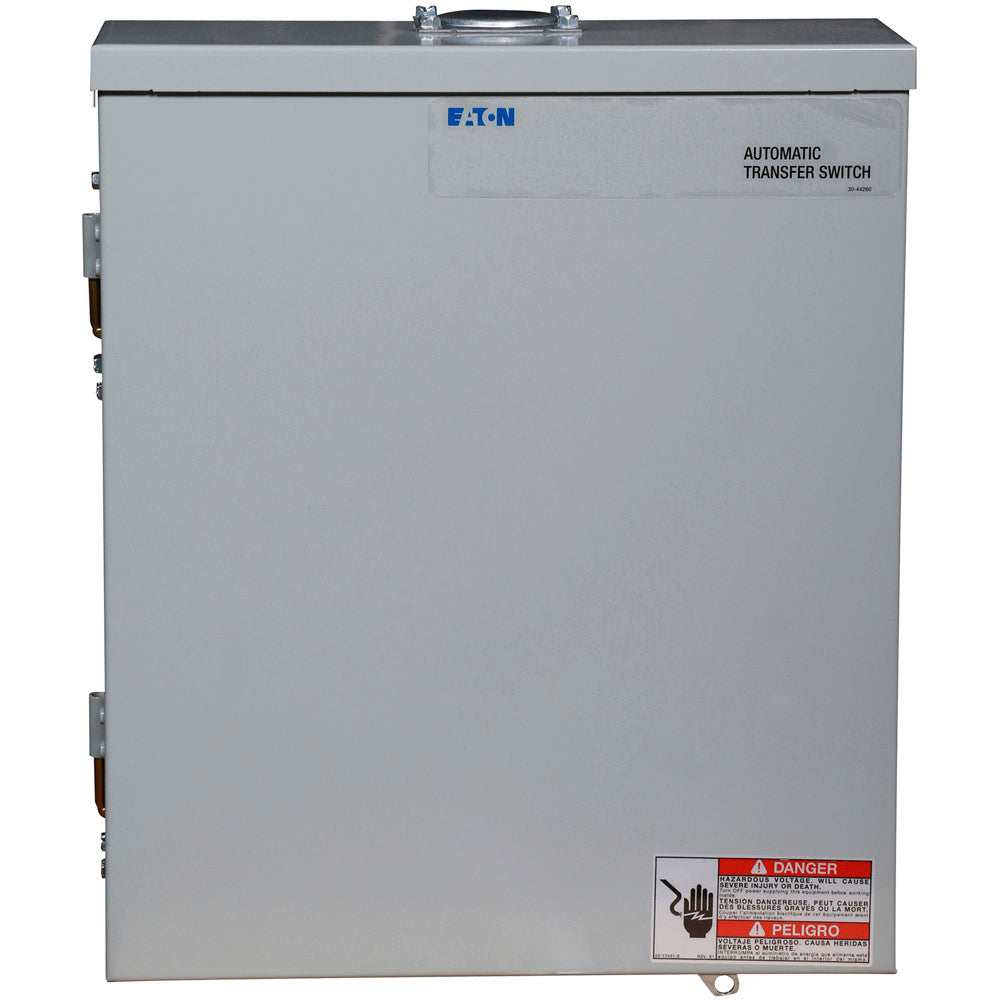

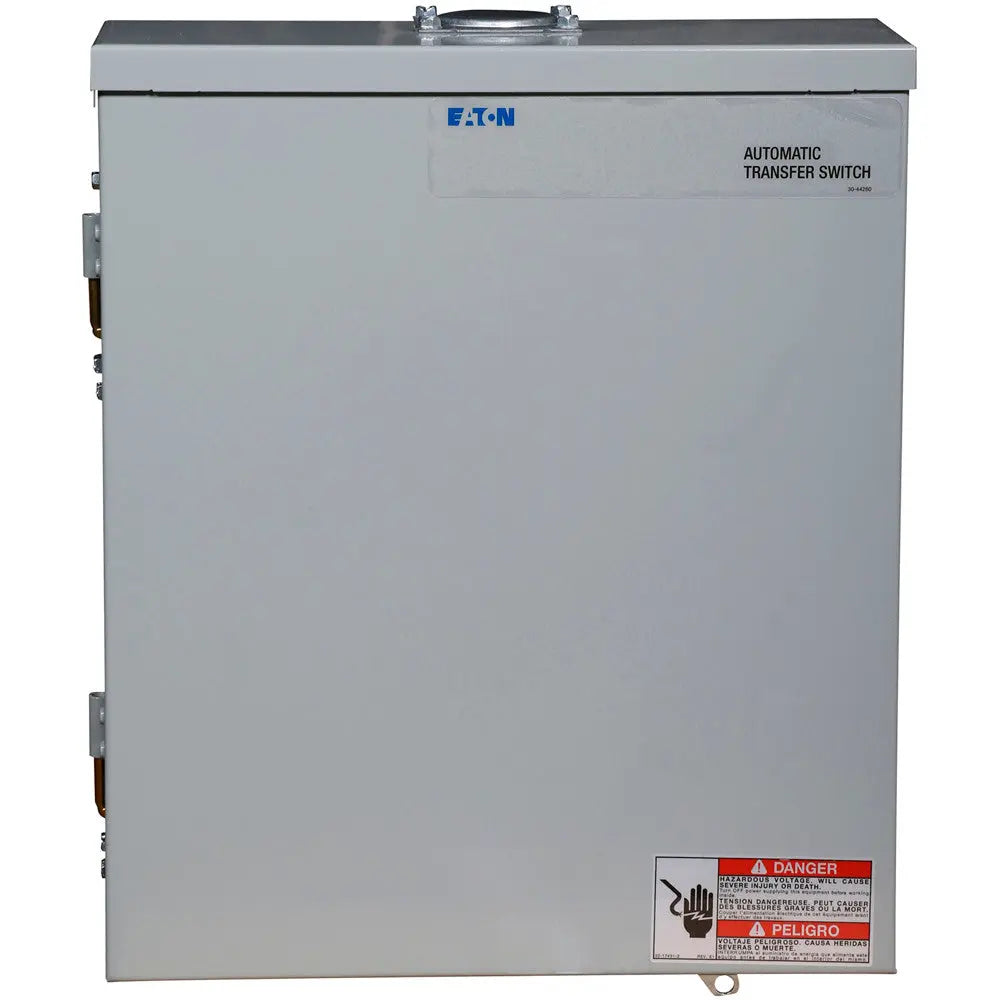

EGS100A
EGS100A is a standard automatic transfer switch designed for residential applications requiring reliable power transfer between two AC sources. This mechanically held, 2-pole switch operates at 120/240V AC with a 100-ampere rating and surface-mount installation in a NEMA 3R enclosure. The switch features load management capabilities with 2 load shed contacts, 50/60 Hz frequency rating, and accepts contactor wire ranging from 14 to 2/0 AWG. Mechanical and electrical interlock design prevents simultaneous connection of both power sources, ensuring safe operation. A manual override lever allows for manual transfer function when needed. The unit is rated for continuous load current not exceeding 80 percent of the switch rating and is suitable for use on circuits capable of delivering up to 10,000 rms symmetrical amperes at 240 volts maximum.
- Amperage: 100A
- Voltage: 120/240V AC
- Poles: 2-pole
- Enclosure Rating: NEMA 3R
- Mounting: Surface
- Frequency: 50/60 Hz
- Load Shed Contacts: 2
- Wire Range: 14 to 2/0 AWG
- Mechanical Interlock: Yes
- Manual Override: Yes
- Dimensions: 14.31" W x 5.32" D x 16.87" H
- Weight: 35 lb
Specifications
- Part Number: EGS100A
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Automatic Transfer
- Compatible Frames : SGHA
Product Data
- GTIN : 00786685423081
- Weight : 45
