EGH3125FFG - Cutler Hammer 125A 600V 3-Pole Molded Case Circuit Breaker Fixed Thermal Magnetic Trip

EGH3125FFG

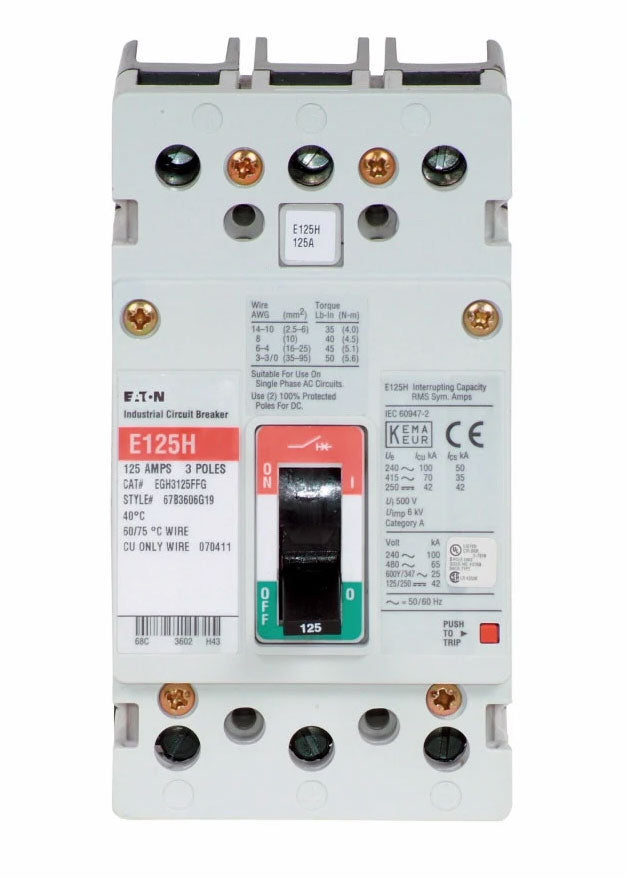

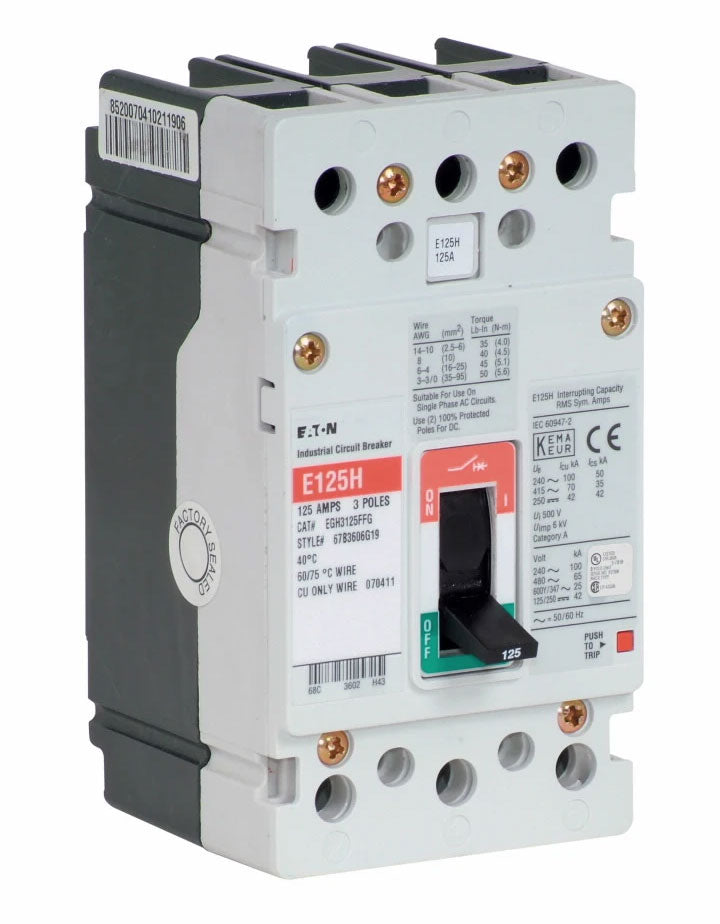

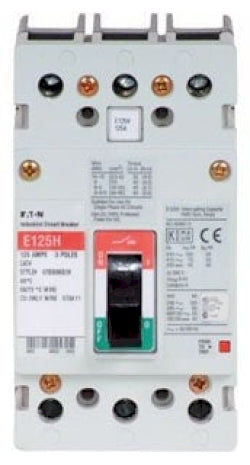

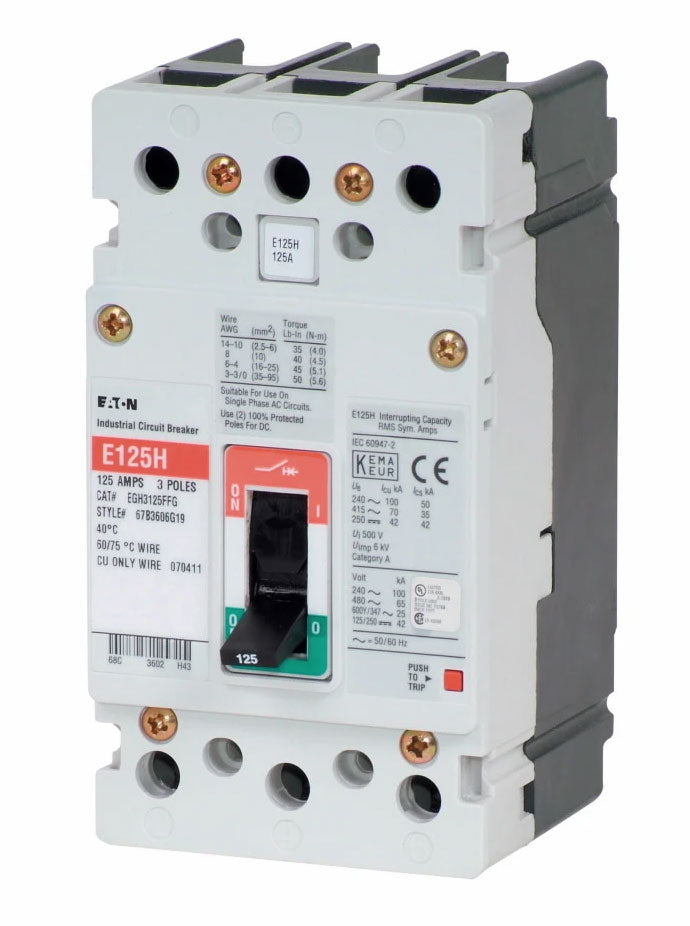

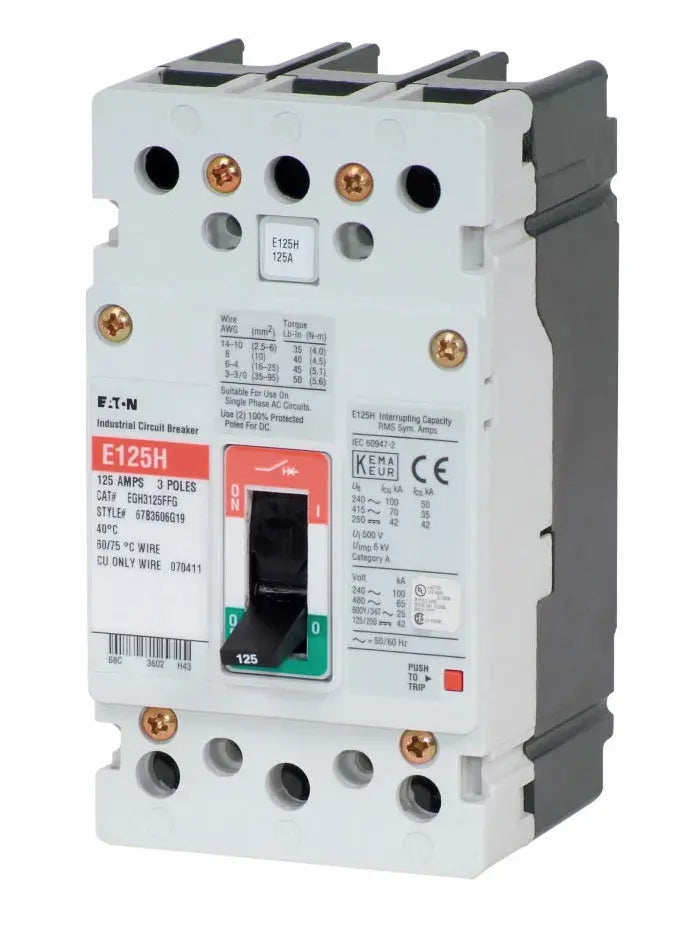

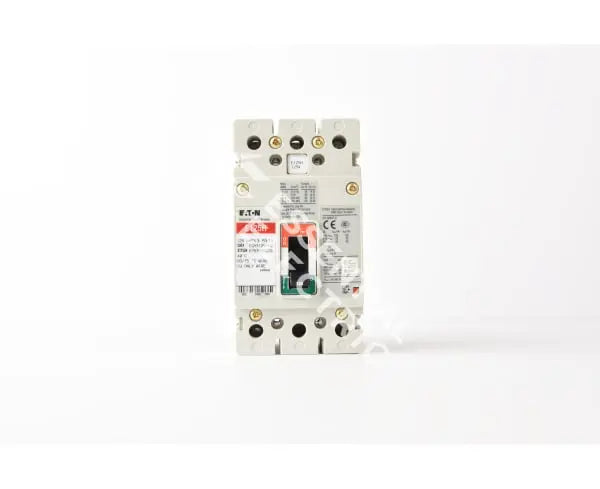

EGH3125FFG is a Cutler Hammer Series G molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This three-pole breaker features a 125A current rating, 600Y/347V AC voltage rating, and a fixed thermal magnetic trip unit for precise overload and short-circuit protection. It is built with an EG frame and feed-thru mounting, making it suitable for a wide range of applications requiring robust circuit protection. The EGH3125FFG offers a high interrupting capacity of 65kA at 480V, 35kA at 600Y/347V, and 100kA at 240V, ensuring safety in demanding environments. It includes line and load side lug terminals for secure connections and is certified to meet industry standards for performance and reliability.

• Part Number: EGH3125FFG
• Manufacturer: Cutler Hammer
• Series/Frame: Series G, EG Frame
• Amperage: 125A
• Voltage: 600Y/347V AC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA @ 480V, 35kA @ 600Y/347V, 100kA @ 240V
• Protection Type: Thermal Magnetic
• Functions: Fixed Thermal, Fixed Magnetic Trip
• Standards: UL Listed, CSA Certified
• Dimensions: 3" x 3" x 2.99"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGH3125FFG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGH
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous

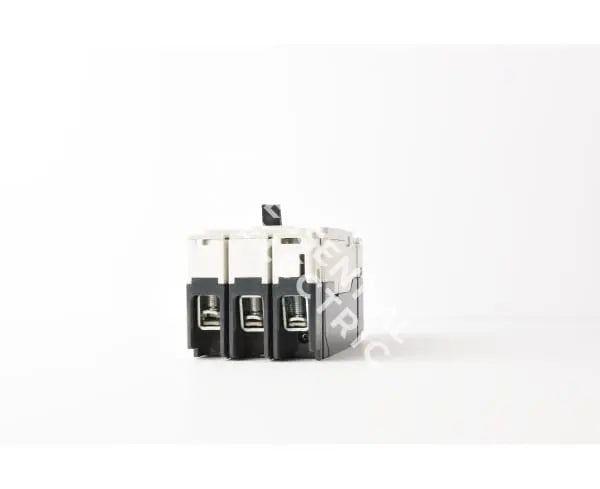

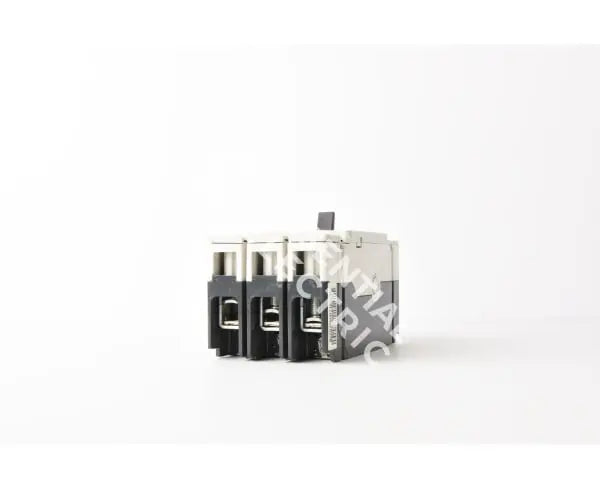

• Terminal Connection : Line/Load Lug
• Frame Size : 125A/EG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782114877647
• GTIN : 00782114877647
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 3
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
