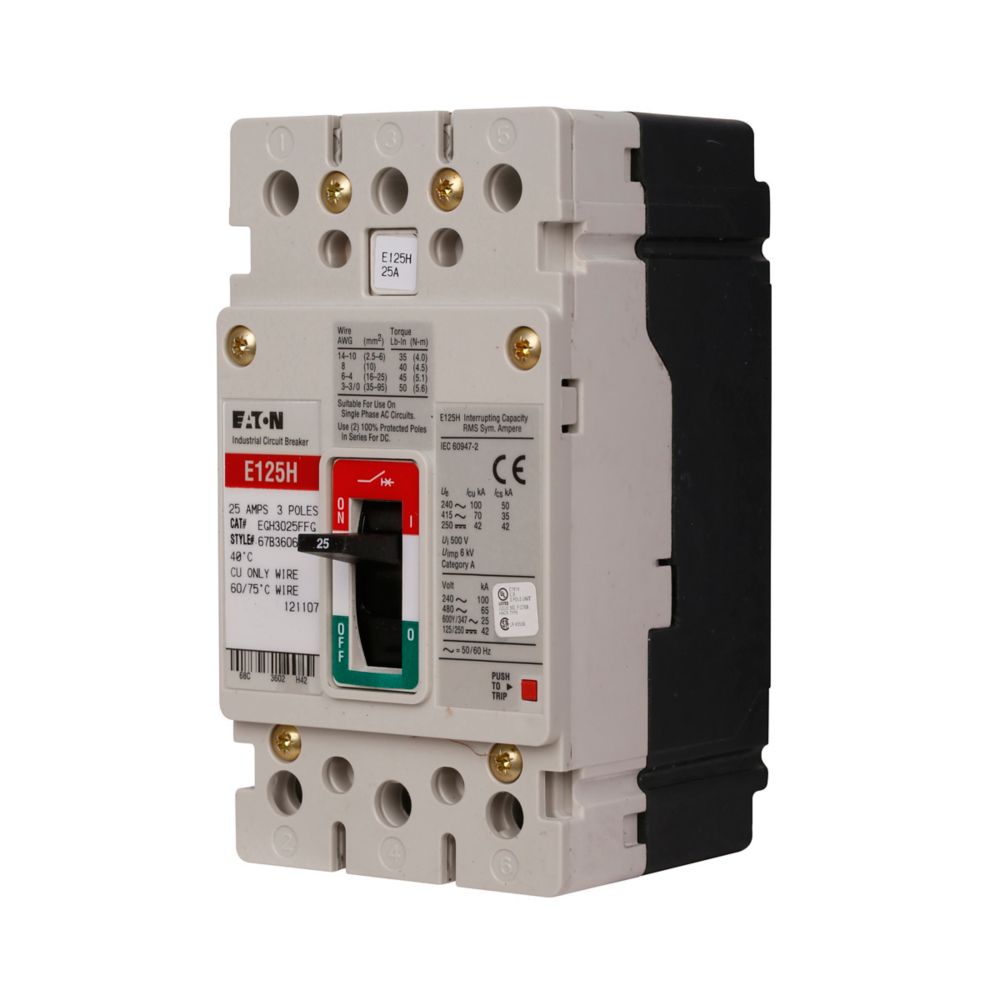

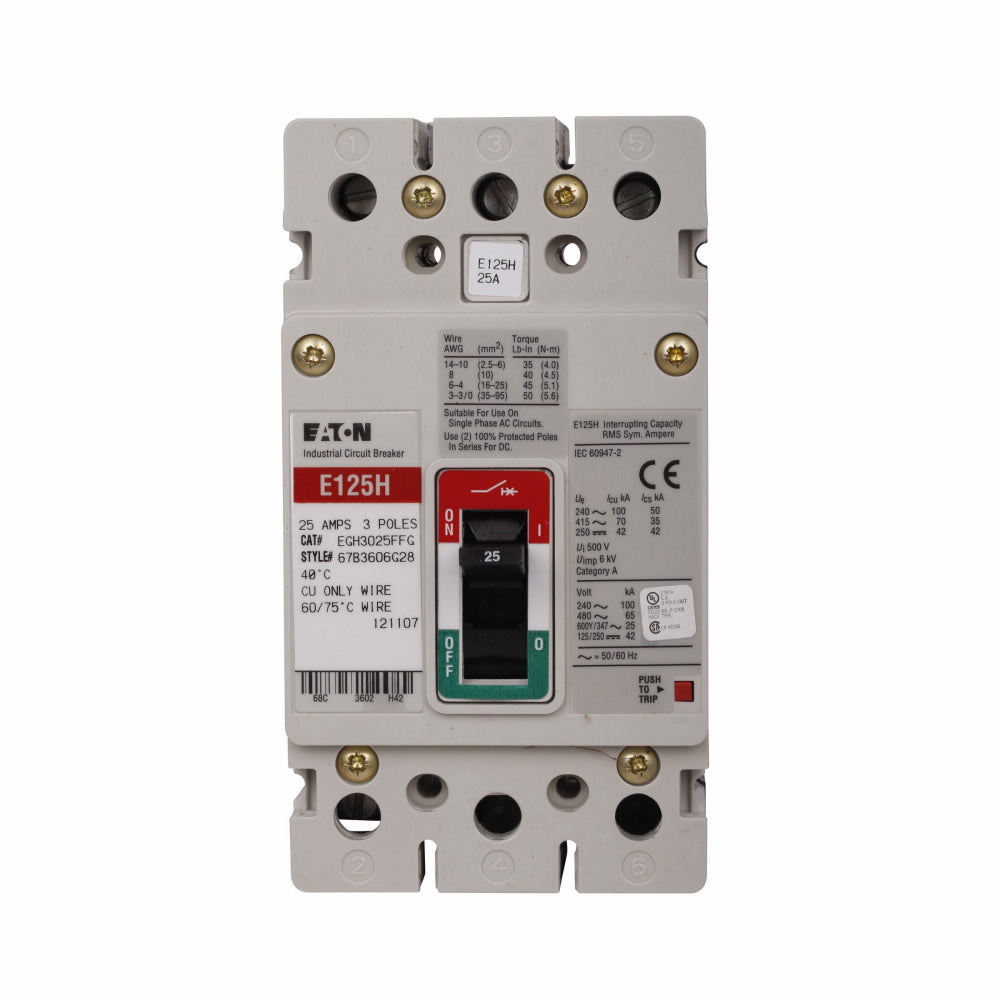

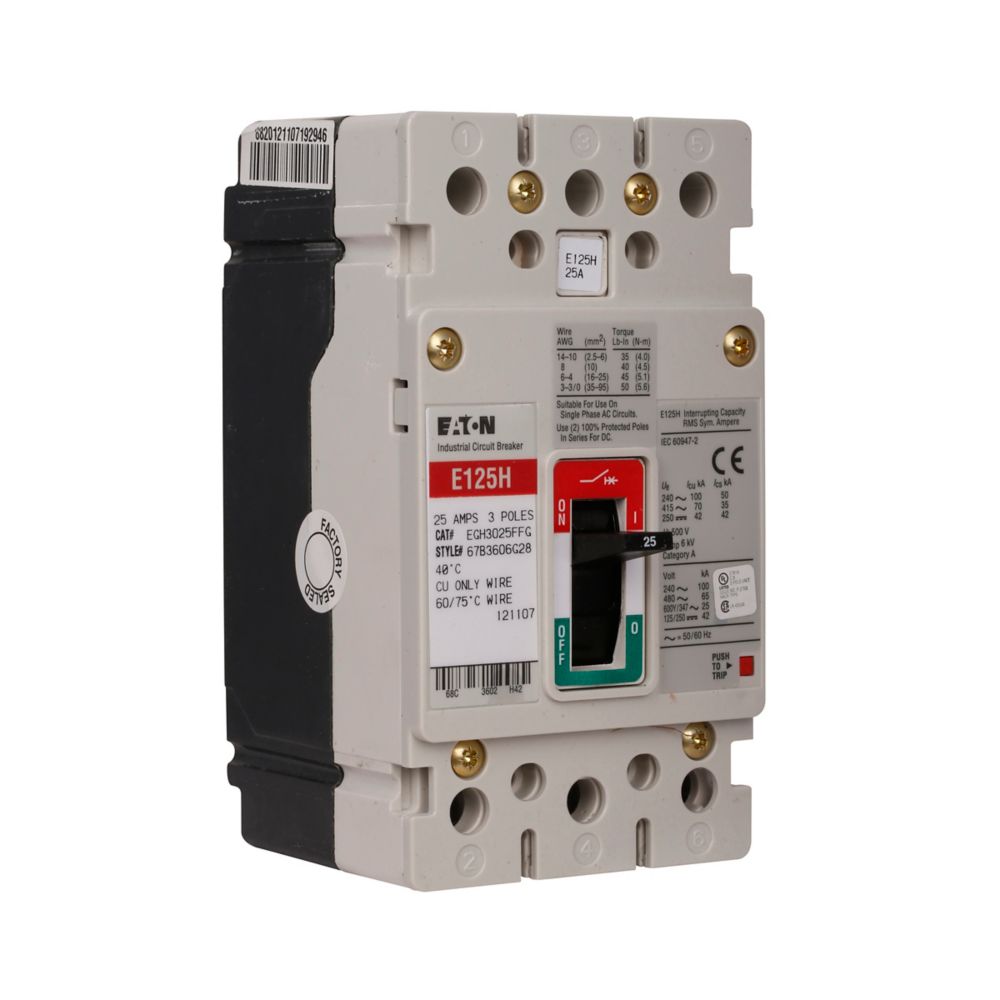

EGH3025FFB - Cutler Hammer 25 Amp 600V 3 Pole EG Frame Molded Case Circuit Breaker

EGH3025FFB

EGH3025FFB is a Cutler Hammer molded case circuit breaker designed for 3-pole, 25 amp, 600 Volt applications with an EG frame.This circuit breaker features a thermal magnetic trip unit with fixed thermal and magnetic trip settings. It supports bolt-on mounting and is rated for 65 kA interrupting capacity at 480 VAC, 100 kA at 240 VAC, and 35 kA at 347 VAC. The breaker is UL listed and suitable for residential, commercial, and industrial use.

• Amperage: 25 Amp
• Voltage Rating: 600Y/347 VAC
• Poles: 3
• Frame Type: EG Frame
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kA @ 480 VAC, 100 kA @ 240 VAC, 35 kA @ 347 VAC
• Trip Unit: Fixed Thermal Magnetic
• UL Listed
• Series: G Series
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGH3025FFB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGH
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685381848
• GTIN : 00786685381848
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : IEC Rated,CSA Certified,UL Listed,CE Marked
