EGE3100FFG - Cutler Hammer 100A 600Y/347V 3-Pole Molded Case Circuit Breaker, EG Frame, Fixed Thermal/Magnetic Trip, 25kAIC @ 480V, UL/CSA/CE/IEC Certified

EGE3100FFG

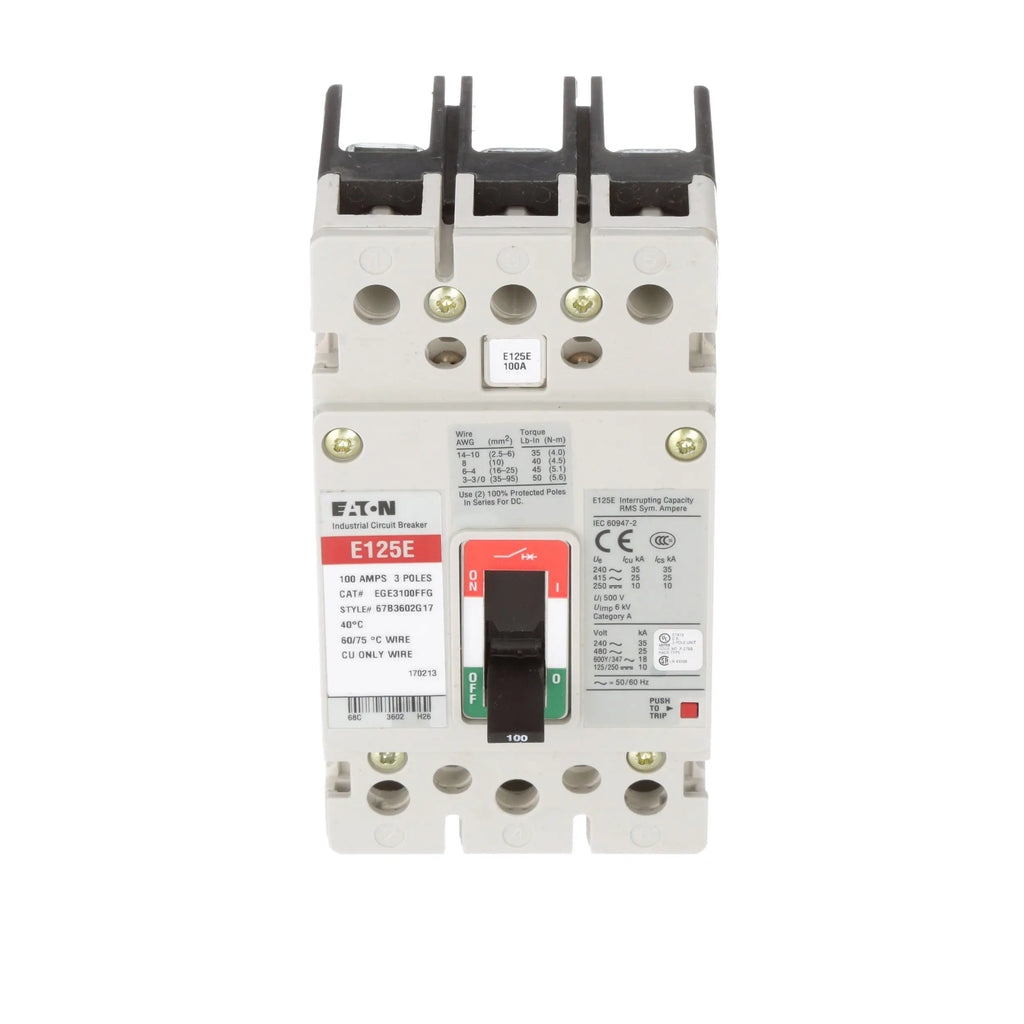

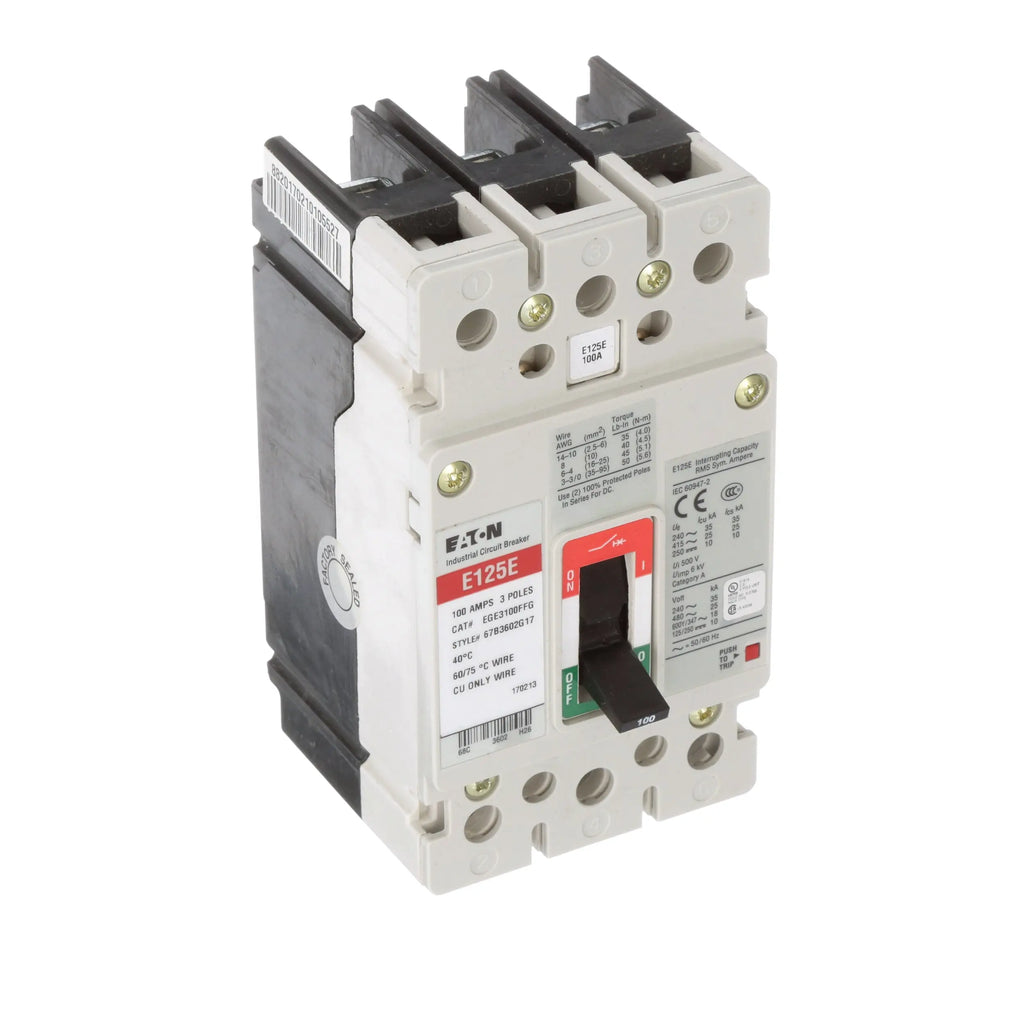

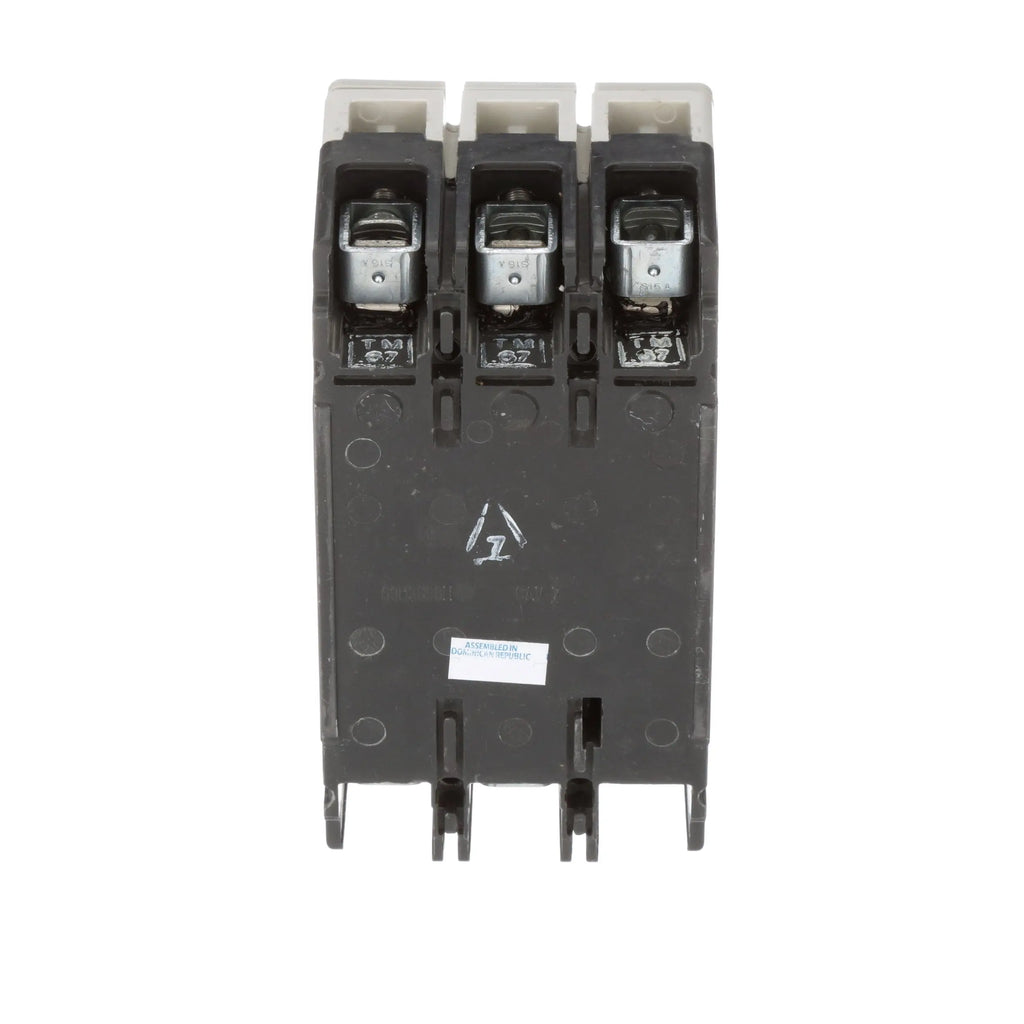

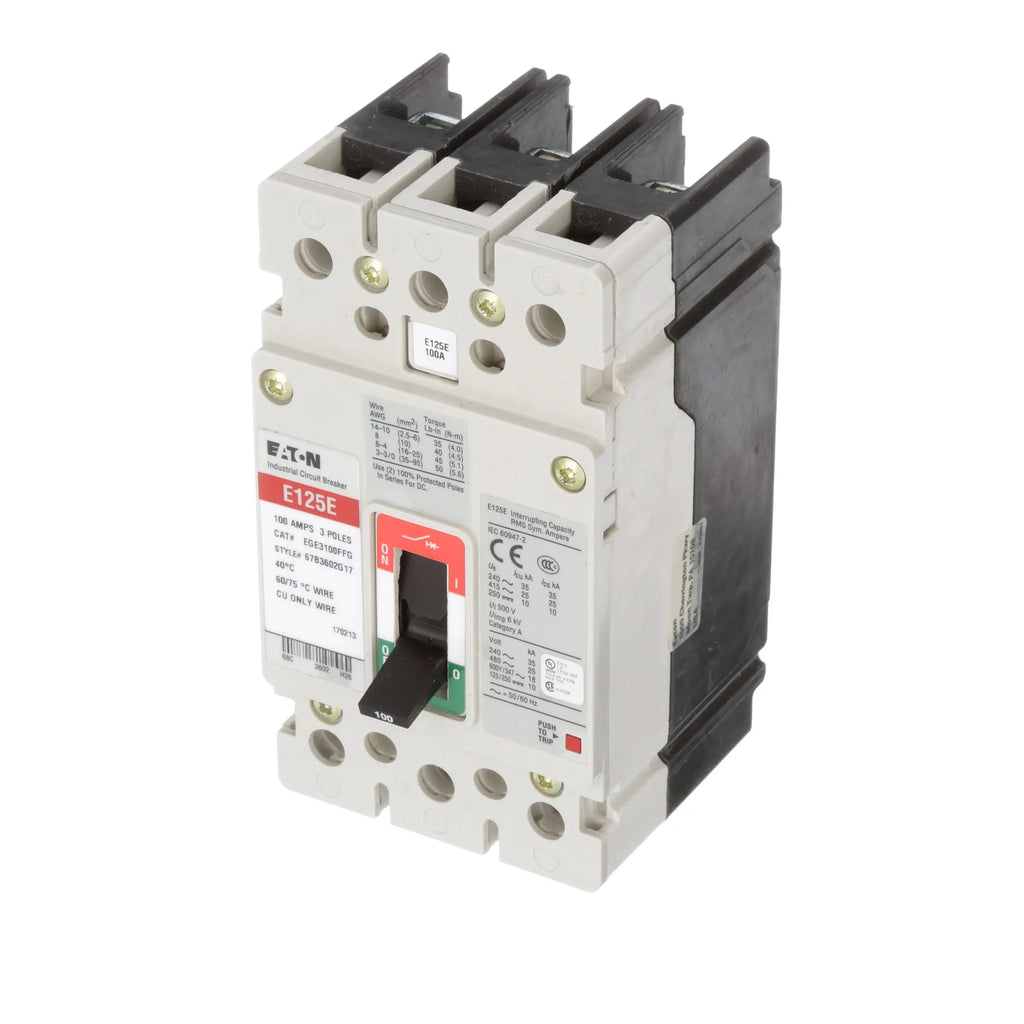

EGE3100FFG is a Cutler Hammer (Eaton) Series G molded case circuit breaker designed for reliable protection in commercial and industrial power distribution applications.

This three-pole circuit breaker features a 100A amperage rating, 600Y/347V voltage rating, and a fixed thermal/magnetic trip unit. It is UL Listed, CSA Certified, CE Marked, and IEC Rated for global compliance. The EG frame design supports panel mounting and is compatible with optional accessories such as auxiliary switches, shunt trips, and undervoltage releases. The breaker offers high interrupting capacity with ratings up to 35kAIC at 240V, 25kAIC at 480V, and 18kAIC at 600Y/347V.

Key Specifications
• Part Number: EGE3100FFG
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 100A
• Voltage: 600Y/347V AC
• Poles: 3
• Mounting Type: Panel
• Interrupt Rating: 35kAIC @ 240V, 25kAIC @ 480V, 18kAIC @ 600Y/347V
• Series/Frame: EG (Series G)
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Terminal: Line and load
• Certifications: UL Listed, CSA Certified, CE Marked, IEC Rated
• Frequency: 50/60 Hz
• Dimensions: 2.99" L x 3" W x 5.5" H
• Weight: 2.91 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGE3100FFG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGE
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 125A/EG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782114876824
• GTIN : 00782114876824
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 2.91
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
