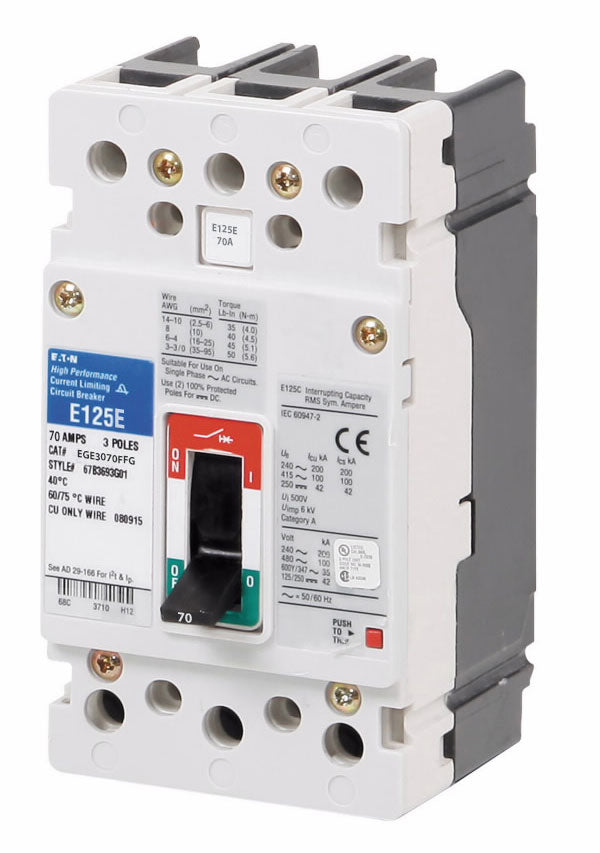

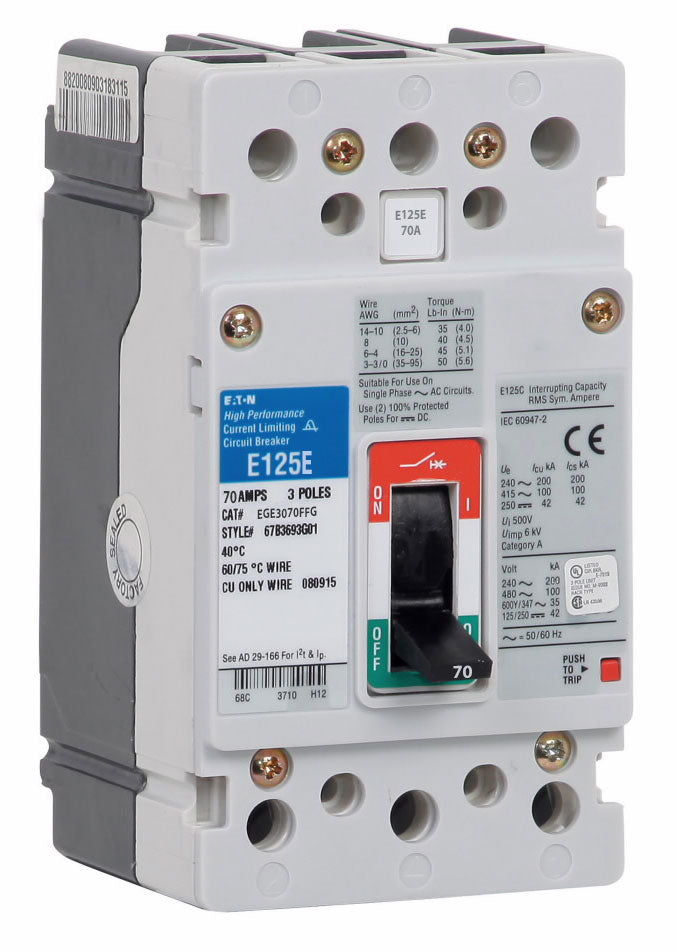

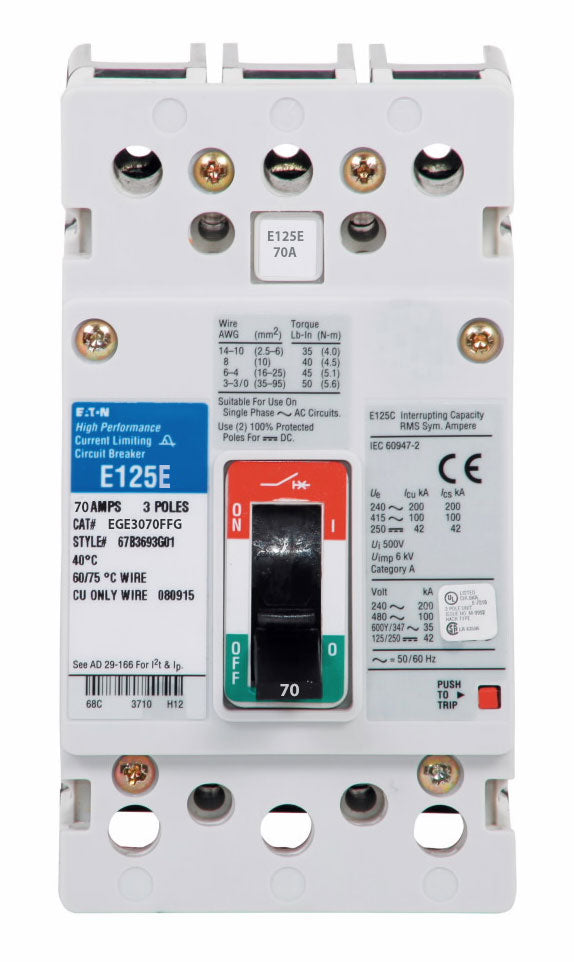

EGE3070FFG - Eaton Series G 3-Pole 70A 600V Molded Case Circuit Breaker Fixed Thermal Magnetic Trip

EGE3070FFG

EGE3070FFG is a three-pole molded case circuit breaker from Eaton's Series G, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a fixed thermal and fixed magnetic trip unit, rated for 70 amps and 600Y/347 Vac, with a robust interrupt rating suitable for a variety of applications. It is suitable for panel mounting and provides both line and load connections for flexible installation. The EGE3070FFG is built with an EG-frame and offers protection for three-phase systems, supporting 50/60 Hz operation. It is certified to UL, CSA, and IEC standards, ensuring compliance with North American and international safety requirements. The breaker is designed for durability and ease of use in demanding environments.

• Part Number: EGE3070FFG
• Manufacturer: Eaton
• Series/Frame: Series G, EG-frame
• Poles: 3
• Amperage: 70 A
• Voltage: 600Y/347 Vac
• Interrupt Rating: 35 kAIC @ 240 Vac, 25 kAIC @ 480 Vac, 18 kAIC @ 600Y/347 Vac
• Mounting Type: Panel
• Connection: Line and Load
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Frequency: 50/60 Hz
• Certifications: UL Listed, CSA Certified, IEC Rated, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGE3070FFG
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGE
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 125A/EG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782114876794
• GTIN : 00782114876794
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 2.85
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
