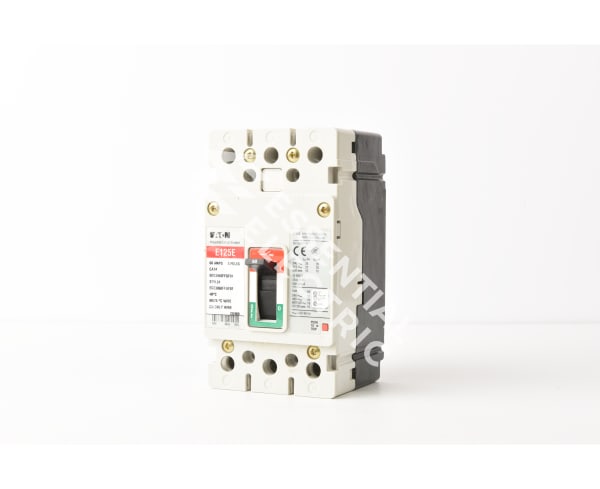

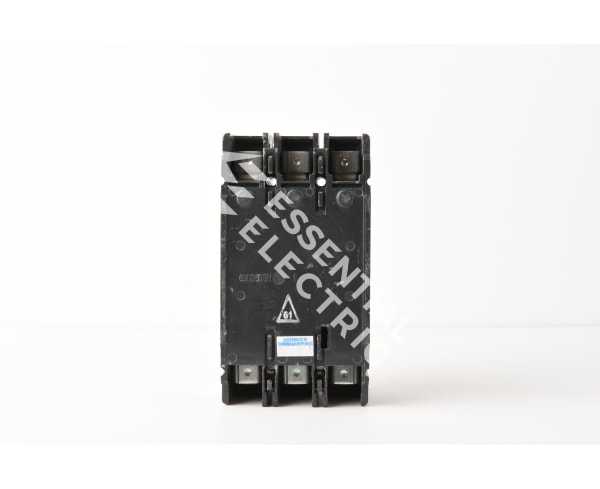

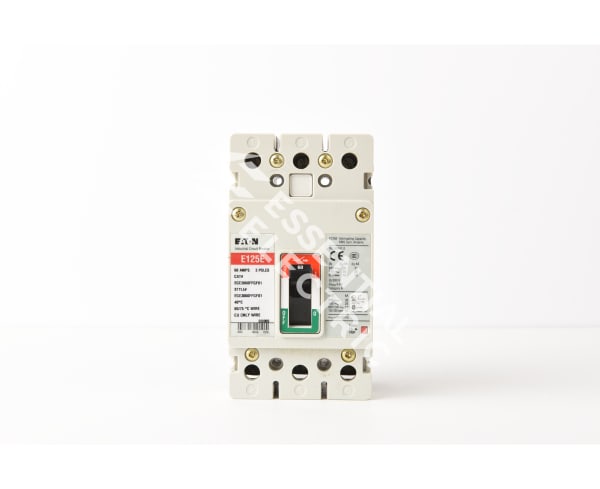

EGE3060FFG - Cutler Hammer 60A 600Y/347VAC 3-Pole G Series Molded Case Circuit Breaker

EGE3060FFG

EGE3060FFG is a Cutler Hammer molded case circuit breaker from the G Series designed for reliable circuit protection.This 3-pole breaker features a 60 amp rating and supports voltages up to 600Y/347 VAC. It uses a fixed thermal and fixed magnetic trip unit for dependable overload and short circuit protection. The breaker is designed for DIN rail mounting with box terminals and offers interrupt ratings of 35 kAIC at 240 VAC, 25 kAIC at 480 VAC, and 18 kAIC at 600Y/347 VAC. It is UL listed, CSA certified, IEC rated, and CE marked, ensuring compliance with multiple safety standards.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 600Y/347 VAC
• Poles: 3
• Series/Frame: G Series, EG-frame
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting Type: DIN Rail
• Interrupt Rating: 35 kAIC @ 240 VAC, 25 kAIC @ 480 VAC, 18 kAIC @ 600Y/347 VAC
• Terminal Type: Box Terminal
• Certifications: UL Listed, CSA Certified, IEC Rated, CE Marked
• Frequency: 50/60 Hz
• Optional Accessories: Auxiliary Switch, Shunt Trip, Undervoltage Release

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGE3060FFG
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGE
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 125A/EG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782114876770
• GTIN : 00782114876770
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 2.93
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
