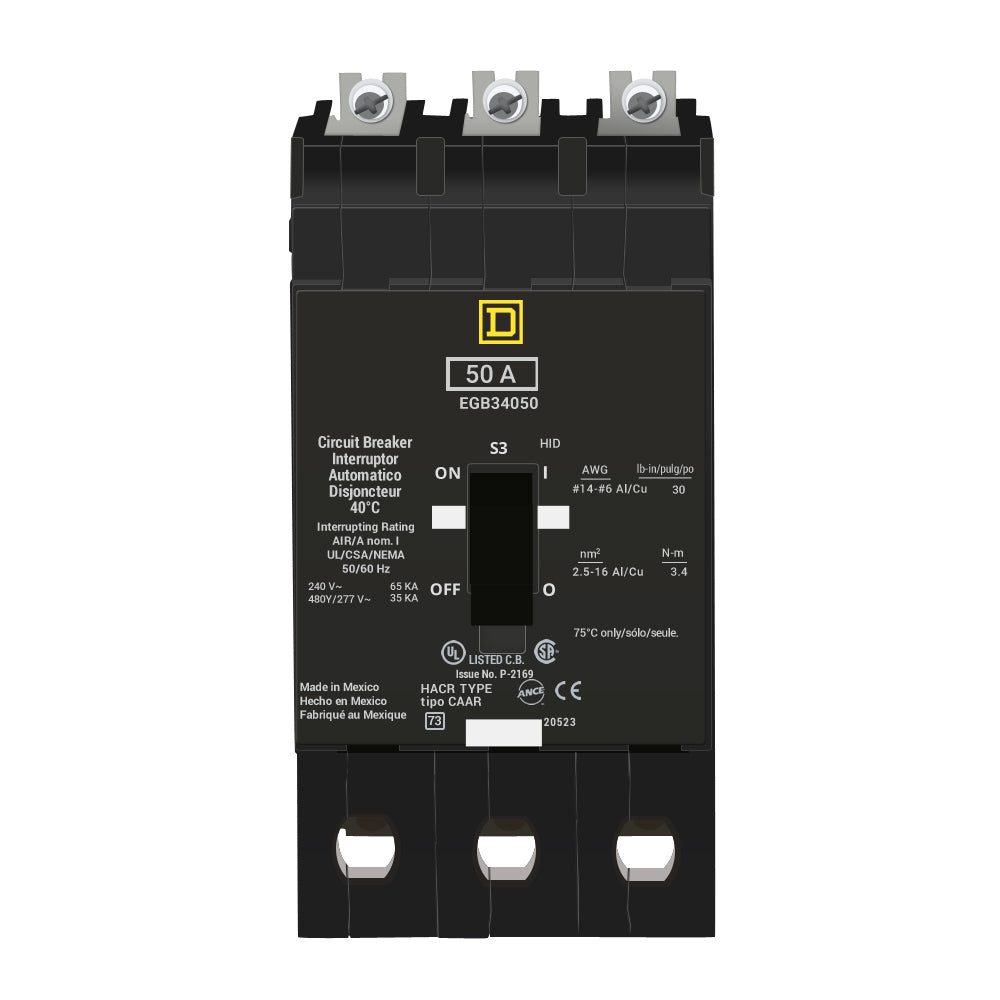

EGB34050 - Schneider Electric (Square D) 3-Pole 50 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EGB

EGB34050

EGB34050 is a bolt-on molded case circuit breaker manufactured by Schneider Electric (Square D). It is a Type EGB device rated for 50 A, 3 poles, and 480Y/277 V AC. It provides thermal-magnetic protection for overload and short-circuit conditions and installs using a secure bolt-on connection in NF and NQ panelboards, delivering reliable performance for feeder and branch circuits in lighting, HVAC, and power distribution applications.

• Part Number: EGB34050
• Manufacturer: Schneider Electric (Square D)
• Product Type: Bolt-On Thermal-Magnetic Circuit Breaker
• Type: EGB
• Poles: 3
• Amperage Rating: 50 A
• Voltage Rating: 480Y/277 V AC
• Interrupting Rating: 35 kA @ 480Y/277 V AC
• Trip Unit: Fixed thermal-magnetic
• Mounting: Bolt-on (for NF/NQ panelboards)
• Application: Branch/feeder protection, EPO systems (with shunt trip), and automation control
• Certifications: UL 489 Listed, CSA Certified, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGB34050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 480Y/277
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/EGB
• Temp Rating : 104 °F (40 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901073024
• GTIN : 00785901073024
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.51 lb
• Panel Type : NF panelboard
• Standards : cULus
• Certification : cULus
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
