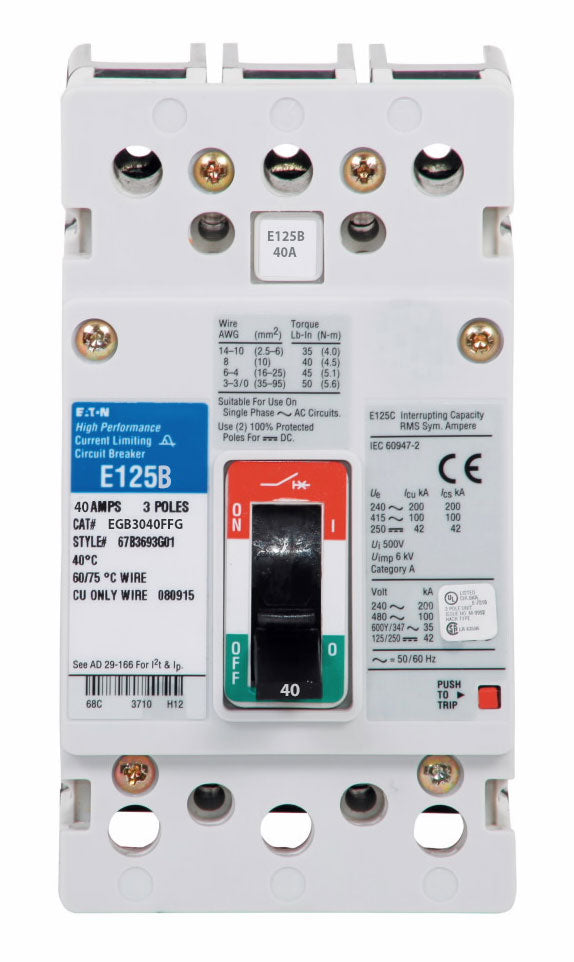

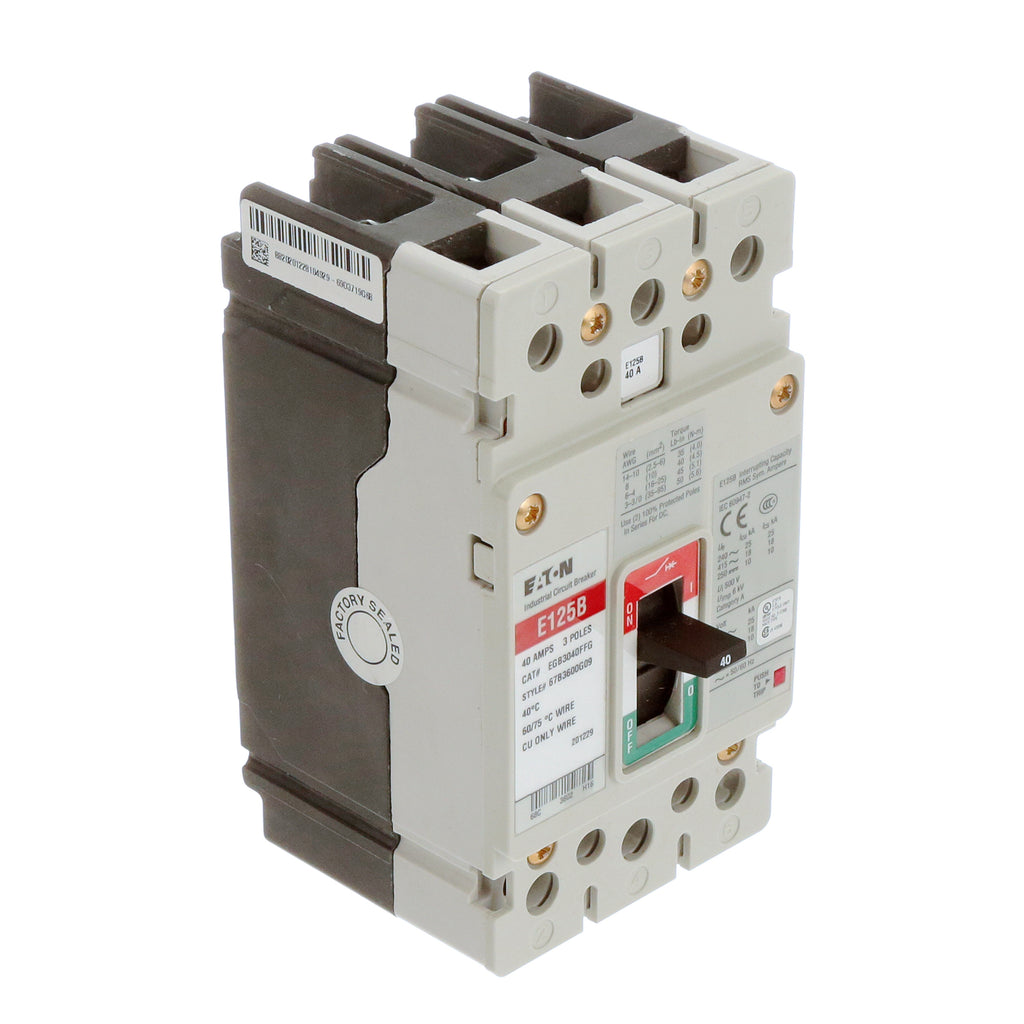

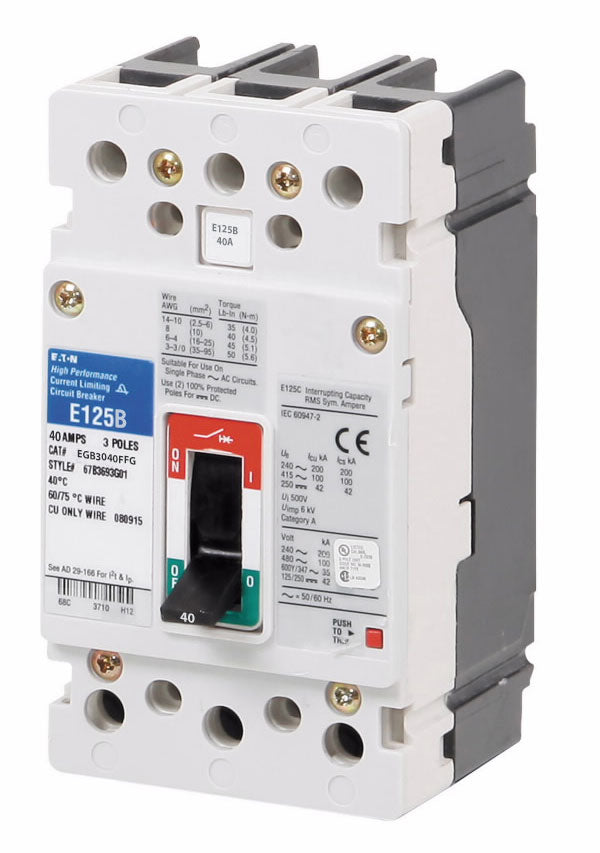

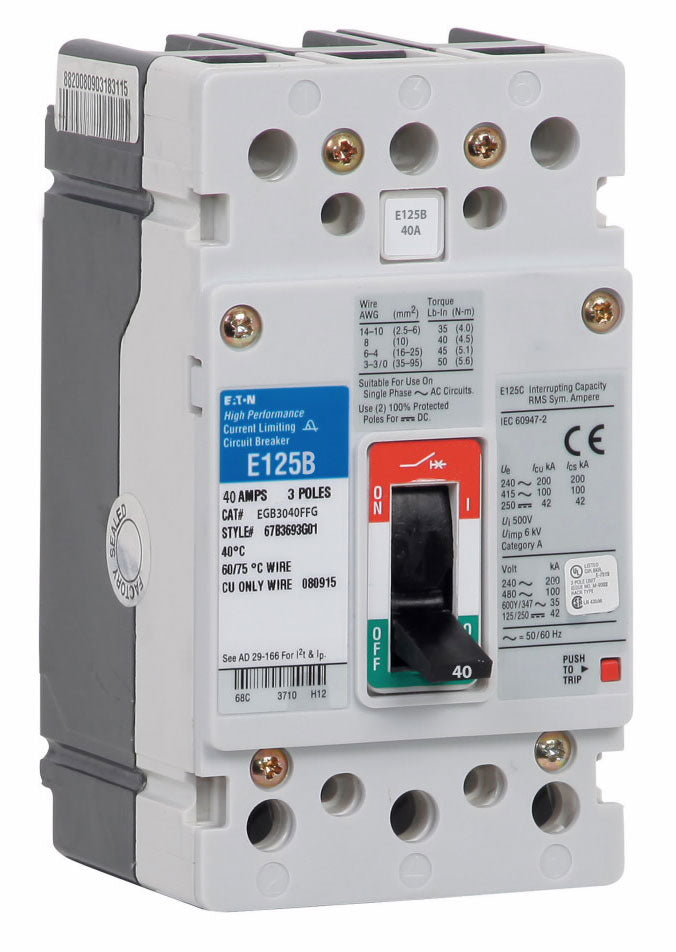

EGB3040FFG - Cutler Hammer 40 Amp 480V 3 Pole Molded Case Circuit Breaker Series G

EGB3040FFG

EGB3040FFG is a Cutler Hammer Series G 3 pole molded case circuit breaker rated for 40 amps and 480 volts. It features a thermal magnetic trip unit with long-time and instantaneous trip functions.

This molded case circuit breaker is designed for feed-thru mounting and provides branch circuit protection with an interrupt rating of 18kA at 480V. It includes line and load side lug terminals and complies with UL 489, CSA 22.2, and IEC EN60898/60947-2 standards. The breaker has a fixed thermal and magnetic trip unit and is suitable for three-phase applications.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Series: G (Type EGB)
• Amperage: 40 A
• Voltage Rating: 480 VAC
• Poles: 3
• Interrupt Rating: 18kA at 480V
• Trip Unit: Fixed Thermal / Fixed Magnetic (LI - Long-Time and Instantaneous)
• Mounting Type: Feed-Thru
• Terminals: Line and Load Side Lugs
• Standards: UL 489, CSA 22.2, IEC EN60898/60947-2
• Weight: 2.9 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGB3040FFG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGB
• Voltage : 480
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782114876343
• GTIN : 00782114876343
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 2.9
• Certification : CSA Certified,IEC Rated,UL Listed,CE Marked
