EGB3030FFG - Cutler Hammer 30A 3-Pole 600Y/347VAC Molded Case Circuit Breaker, EG Series G Frame, Fixed Thermal/Magnetic Trip, Panel Mount, 18KAIC

EGB3030FFG

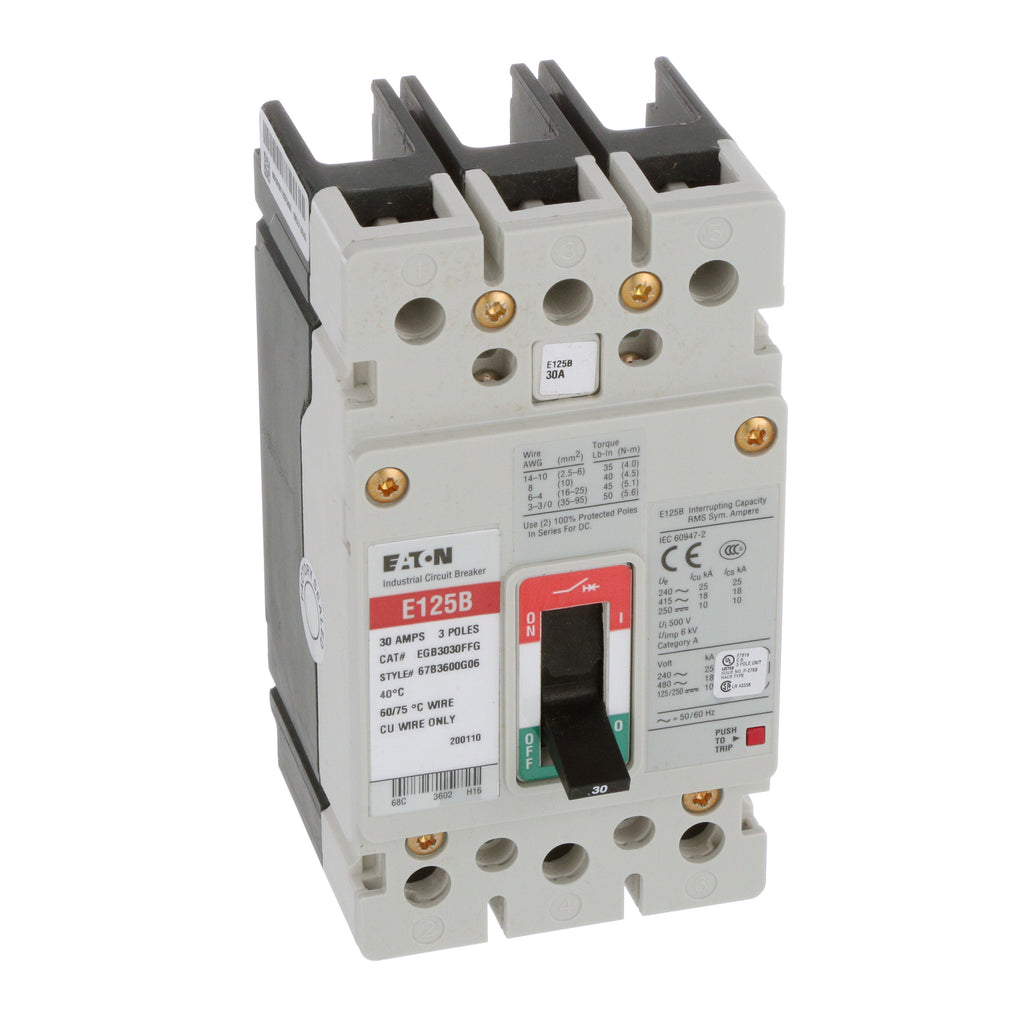

EGB3030FFG is a Cutler Hammer (Eaton) Series G molded case circuit breaker designed for reliable protection in three-phase electrical systems.

This complete breaker features a fixed thermal, fixed magnetic trip unit, three poles, and a 30A rating. It is suitable for panel mounting and is rated for 600Y/347VAC systems, with an interrupting capacity of 18KA at 480VAC. The EG-frame design ensures robust performance for industrial and commercial applications.

Key Specifications
• Part Number: EGB3030FFG
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 30A
• Voltage: 600Y/347VAC, 480VAC
• Poles: 3
• Mounting Type: Panel
• Interrupt Rating: 18KA @ 480VAC, 25KA @ 240VAC
• Series/Frame: EG Series, G Frame
• Trip Unit: Fixed thermal, fixed magnetic
• Certifications: Not specified in available data
• Terminal Type: With terminal lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGB3030FFG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : EGB
• Voltage : 480
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782114876312
• GTIN : 00782114876312
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 2.88
• Certification : UL Listed,CSA Certified,IEC Rated,CE Marked
• Wire Size : 14 to 3/0 AWG
