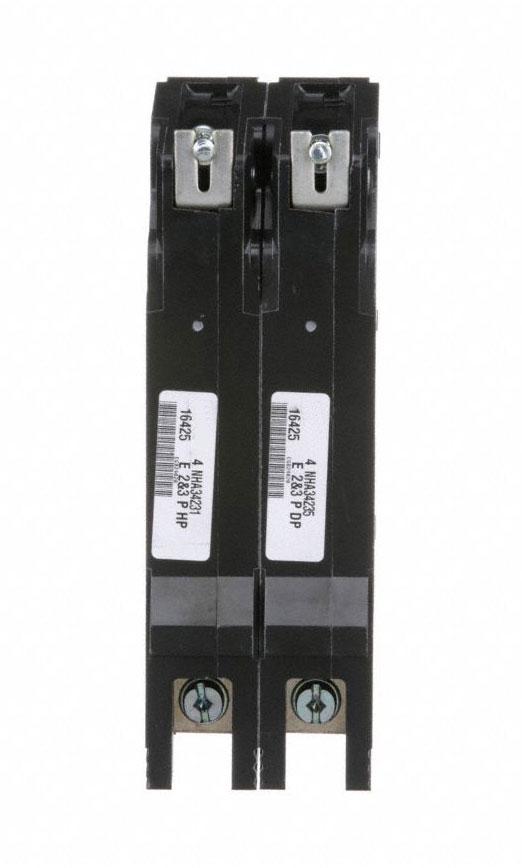

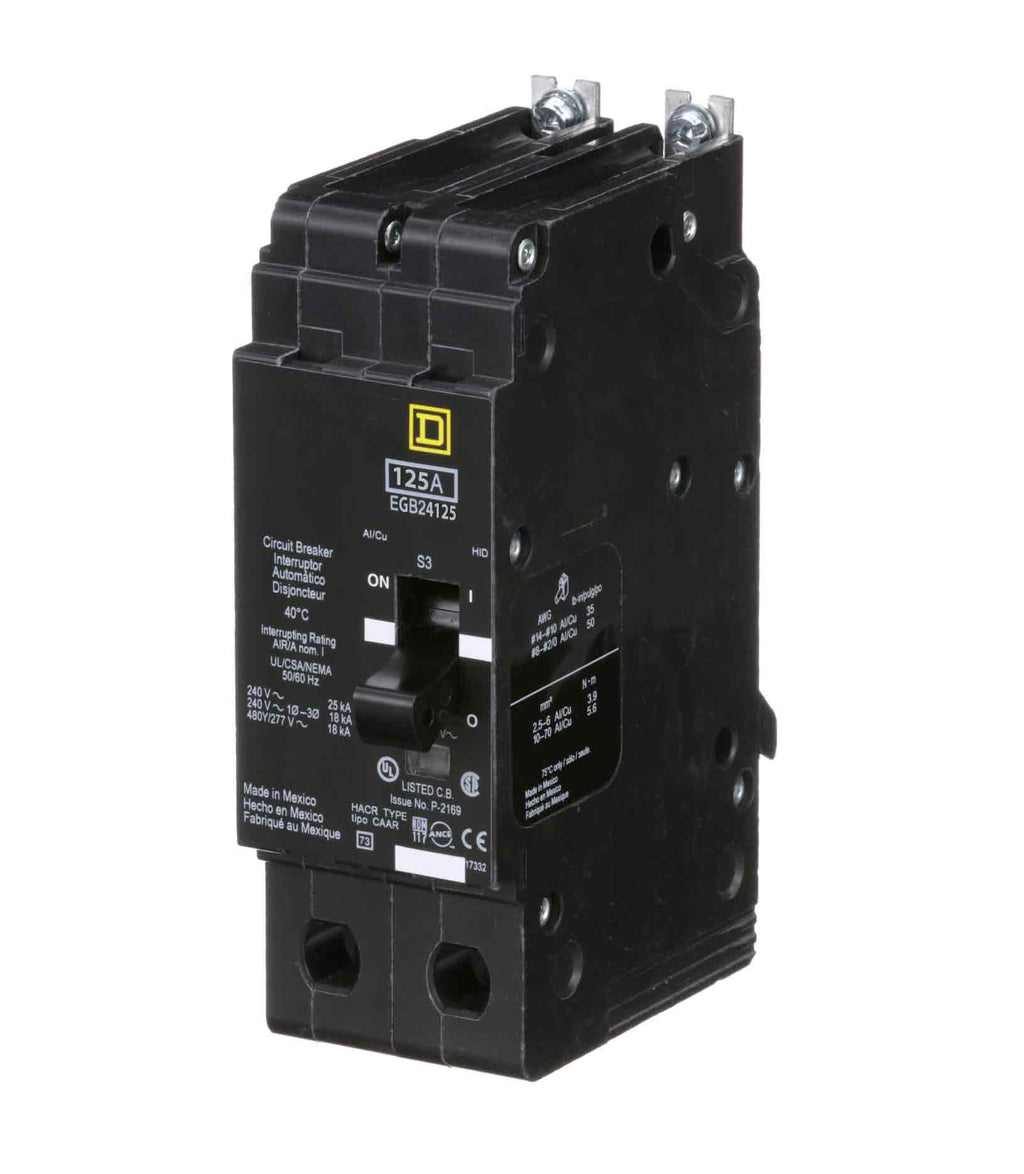

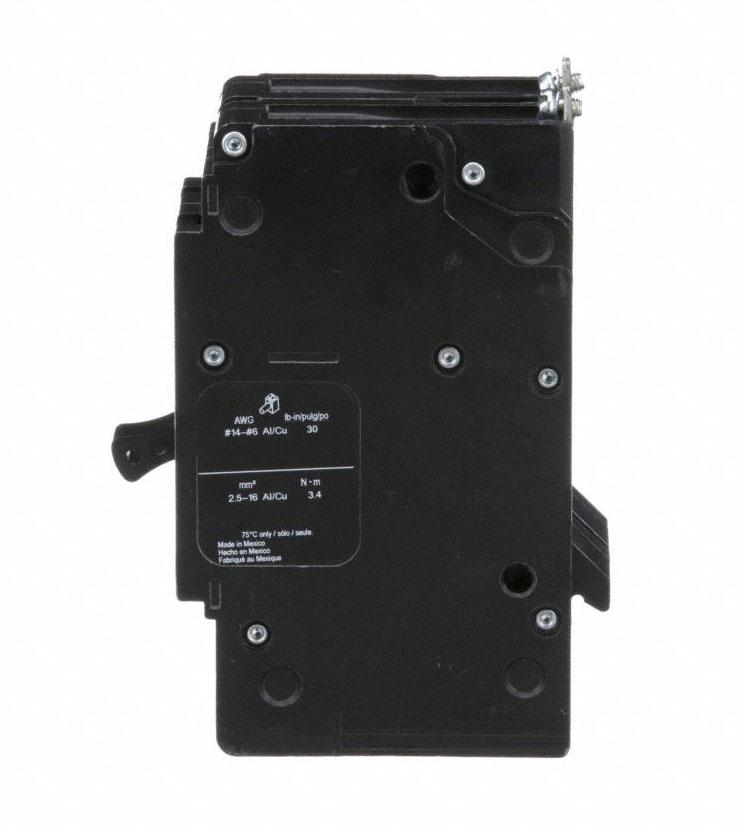

EGB24125 - Square D 125 Amp 2-Pole 480Y/277V Molded Case Circuit Breaker Bolt-On E-Frame

EGB24125

EGB24125 is a Square D molded case circuit breaker designed for reliable protection in electrical systems.This 2-pole circuit breaker features a 125 amp rating and supports a maximum operating voltage of 480Y/277 volts AC. It uses a thermal magnetic trip unit with long-time and instantaneous protection functions. The breaker is bolt-on mounted and compatible with Square D NF panelboards. It has a 35kA interrupting rating at 480 volts and is UL listed for safety. Electrical connections are made via aluminum lugs, and it supports AWG 12 to 2/0 aluminum and AWG 14 to 2/0 copper wiring.

Key Specifications
• Amperage: 125 A
• Voltage: 480Y/277 V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA @ 480V
• Series/Frame: EGB, E-Frame
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Connection: Aluminum Lugs
• Compatible Panelboard: Square D NF
• Certifications: UL Listed (US and Canada)
• Dimensions (HxWxD): 5.66" x 1.96" x 4.05"
• Weight: 3 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: EGB24125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 480
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901128618
• GTIN : 00785901128618
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.458
• Panel Type : NF panelboard
• Certification : cULus
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
