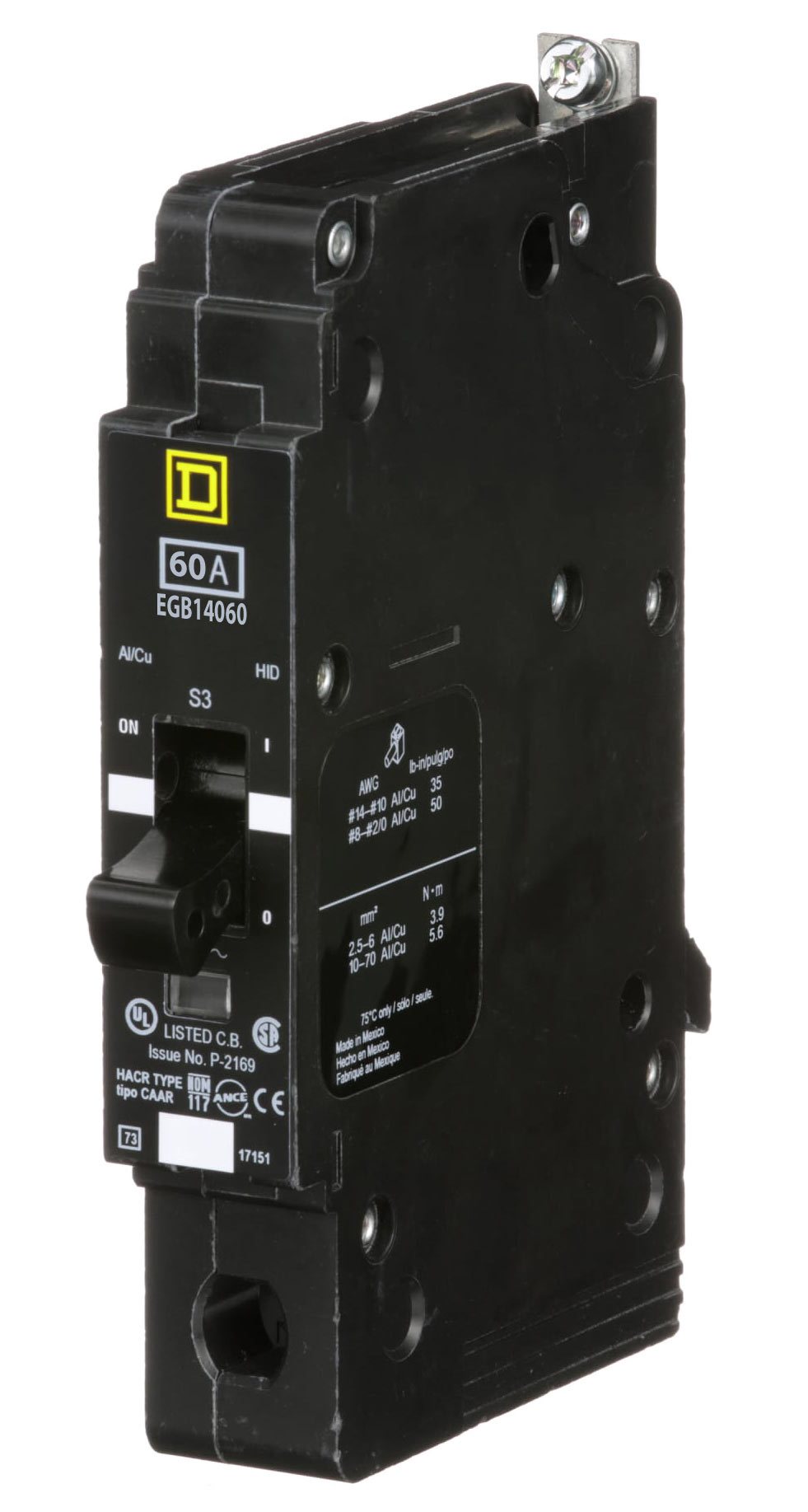

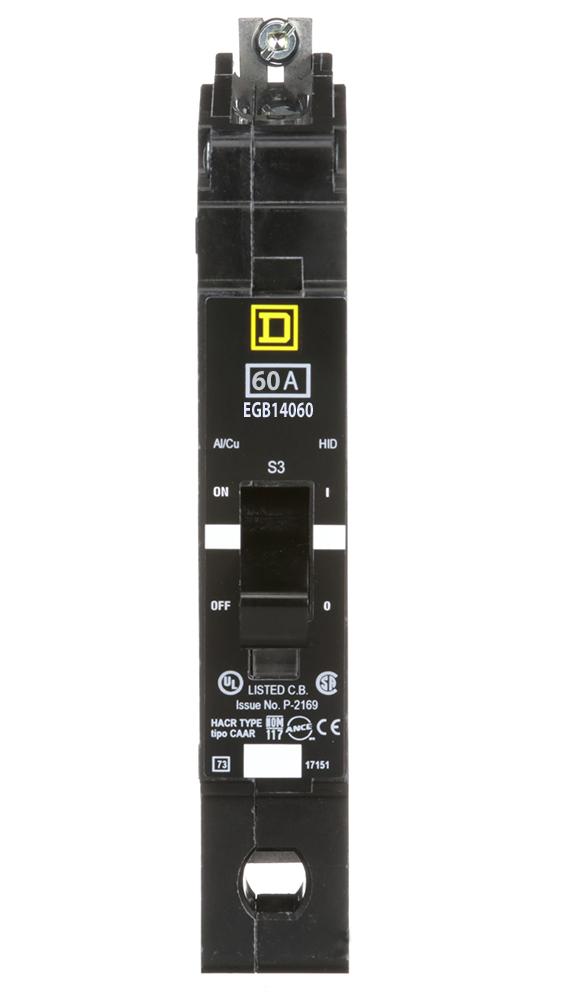

EGB14060 - Square D 60A 277V 1-Pole Bolt-On Molded Case Circuit Breaker E-Frame Thermal Magnetic Trip

EGB14060

EGB14060 is a 1-pole, 60A, 277V bolt-on molded case circuit breaker from the Square D EGB series, designed for reliable branch circuit protection in NF panelboards.This Square D EGB14060 circuit breaker features a thermal-magnetic trip unit for overload and short-circuit protection, a 35kA interrupt rating at 277V, and is UL Listed, CSA-rated, and HACR-rated for use in lighting and general applications. The compact E-Frame design and bolt-on mounting make installation easy and secure.

• Part Number: EGB14060
• Manufacturer: Square D
• Series/Frame: EGB E-Frame
• Poles: 1
• Ampere Rating: 60A
• Voltage Rating: 277V AC
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA @ 277V
• Protection Type: Thermal Magnetic
• Trip Unit: Long-Time and Instantaneous
• Certifications: UL Listed, CSA, HACR
• Application: NF Panelboards, Lighting Circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EGB14060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 277
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901128519
• GTIN : 00785901128519
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.279
• Panel Type : NF panelboard
• Certification : cULus
• Wire Size : AWG 14 to AWG 2/0, AWG 12 to AWG 2/0, Cu/Al
