EGB14030 - Square D 30 Amp 277 Volt 1 Pole Bolt-On Molded Case Circuit Breaker EGB Series

EGB14030

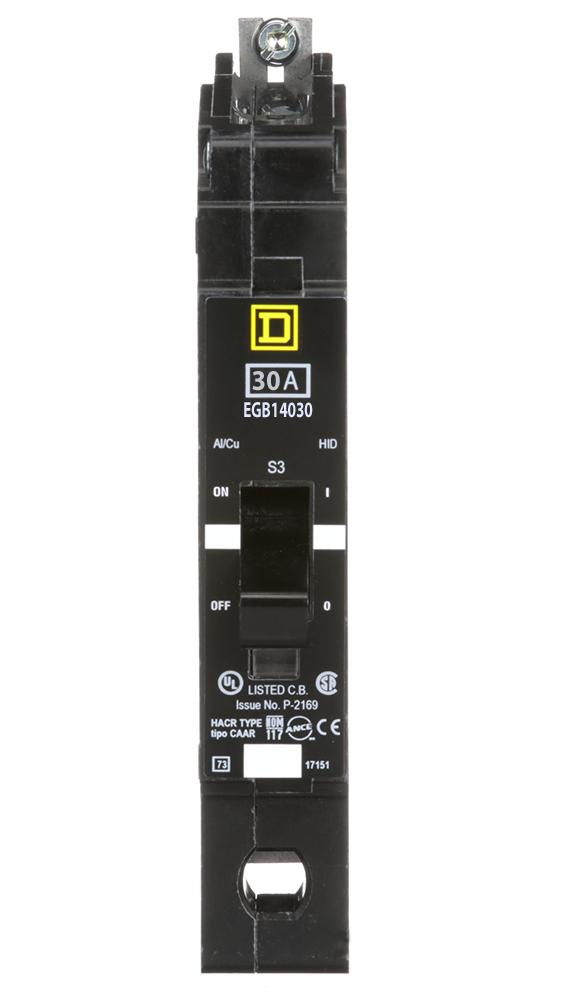

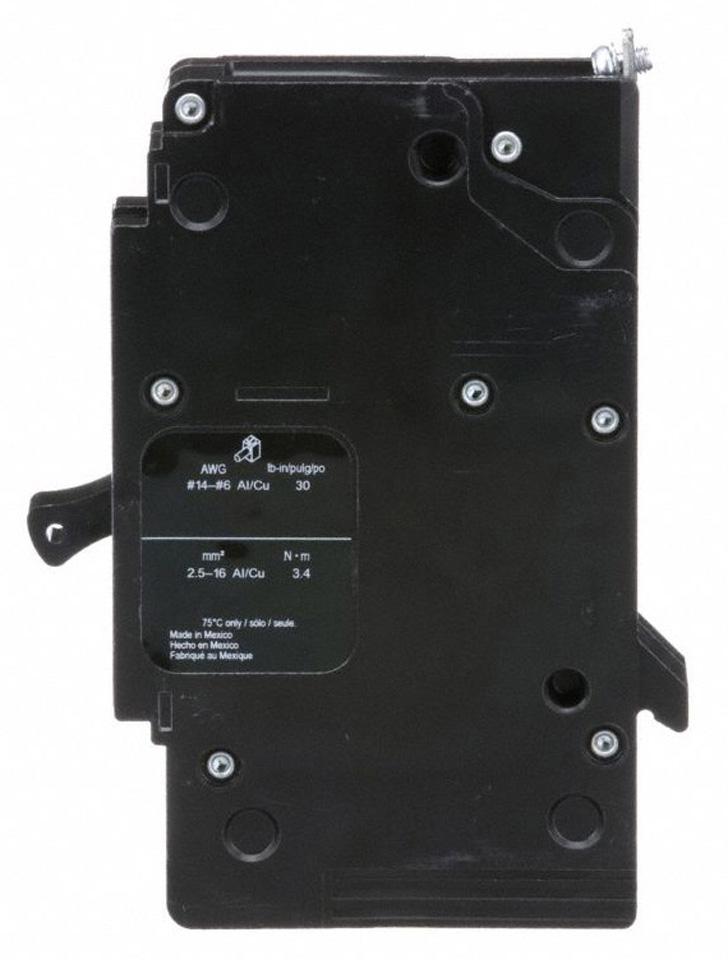

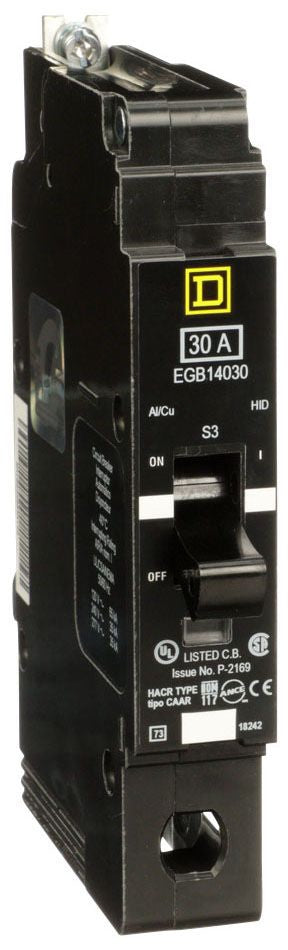

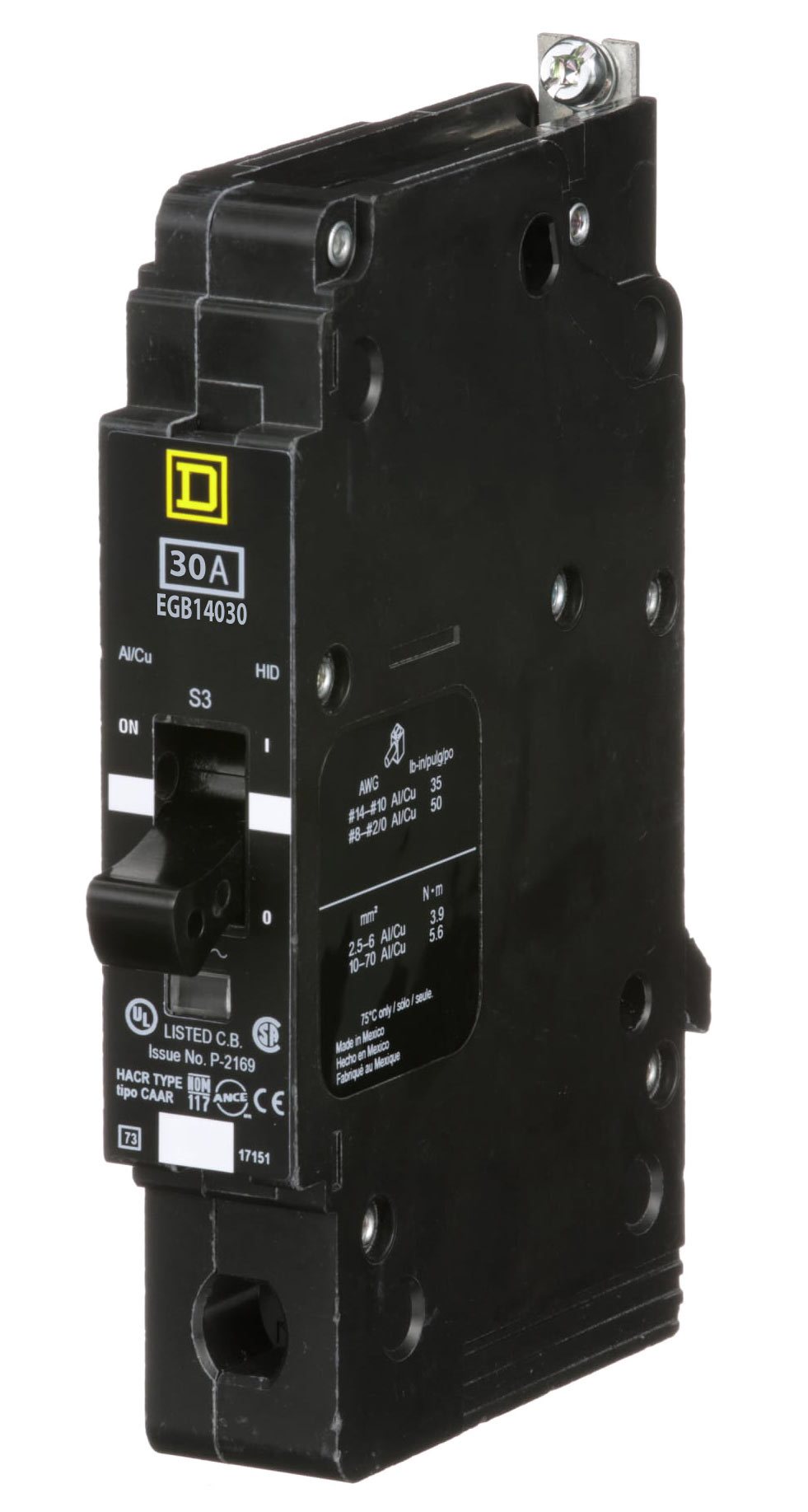

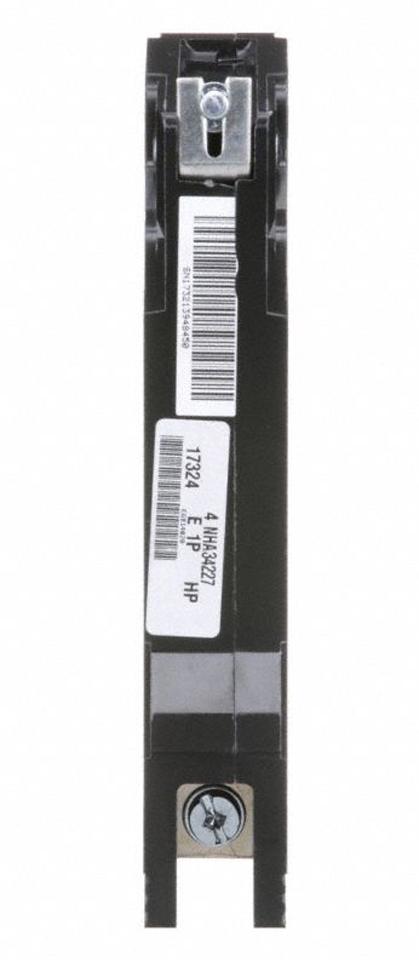

EGB14030 is a Square D 30 Amp, 277 Volt, 1 Pole bolt-on molded case circuit breaker from the EGB Series.This thermal magnetic circuit breaker features a bolt-on mounting type and is rated for 30 Amps at 277 VAC with a short-circuit interrupt rating of 35kA at 277V. It includes aluminum lugs compatible with AWG 12 to AWG 6 aluminum wire and AWG 14 to AWG 6 copper wire. The breaker is UL listed and CSA certified, designed for use in Square D NF panelboards, and provides protection against short-circuit and overload conditions. It has a trip unit rating of 875 Amps and includes a trip indicator for local signaling.

Key Specifications
• Amperage: 30 Amps
• Voltage: 277 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA at 277V
• Series/Frame: EGB Series
• Trip Unit: Thermal Magnetic
• Wire Compatibility: AWG 12-6 Aluminum, AWG 14-6 Copper
• Certifications: UL Listed, CSA Certified
• Application: Square D NF Panelboard
• Local Signaling: Trip Indicator
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: EGB14030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EGB Series
• Type : EGB
• Voltage : 277
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : G; E-Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 078590131109
• GTIN : 00785901311096
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.37
• Panel Type : NF panelboard
• Standards : cULus
• Certification : cULus
• Wire Size : AWG 12 to AWG 6, AWG 14 to AWG 6, Aluminum/Copper
