EFS2184 SA - Eaton Crouse-Hinds Control Systems Pushbutton Station

EFS2184 SA

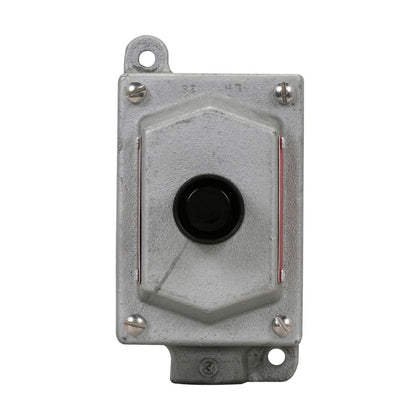

EFS2184 SA is an Eaton Crouse-Hinds series EFS pushbutton control station designed for hazardous area applications with factory-sealed construction to prevent arcing ignition. This heavy-duty control station features copper-free aluminum construction with a 3/4 inch dead-end hub and is rated for 600 VAC operation with single circuit universal configuration and 1NO-1NC contact arrangement. The unit is factory sealed to eliminate the need for external seals, simplifying installation and reducing costs while providing flametightness through close tolerances in machining of wide mating flanges and journalled shafts. Typical applications include industrial facilities and factories where atmospheres may contain hazardous gases and/or dusts, used in conjunction with magnetic starters or contactors for remote motor control. Key Specifications

• Part Number: EFS2184 SA
• Manufacturer: Eaton Crouse-Hinds
• Voltage Rating: 600 V
• Contact Configuration: 1NO-1NC
• Hub Size: 3/4 inch
• Hub Type: Dead End
• Material: Copper-free aluminum
• Enclosure Type: Single Gang
• NEMA Rating: 3, 7B, 7C, 7D, 9E, 9F, 9G
• Standards: UL 1203, CSA C22.2
• Dimensions: 5-7/8 in Length x 3-1/2 in Width x 2-1/2 in Height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EFS2184 SA
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Control Systems
• Item Subcategory : Control stations
• Section : EDSX, EDS and EFS Hazardous Area Pushbutton, Pilot Light and Selector Switch Control Stations
• Voltage : 600 V
• Aux Contacts : 1NO-1NC
• Nema Rating : 3, 7B, 7C, 7D, 9E, 9F, 9G
• Switch Type : Pushbutton
• Enclosure : Single Gang
• Material : Copper-free aluminum
• NEC hazardous rating : Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
• Trade size : 3/4"
• Number of gangs : Single-gang
• Enclosure size : 5-7/8 in x 3-1/2 in x 2-1/2 in
• Special features : Copper-free aluminum, Factory sealed, 3/4 inch dead-end hub

Product Data

• UPC : 782274524573
• Dimensions : 3.5 in x 5.91 in x 5.25 in (Length/Depth x Height x Width)
• Weight : 3 lb
