Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Transformers
Description
EE25S3H

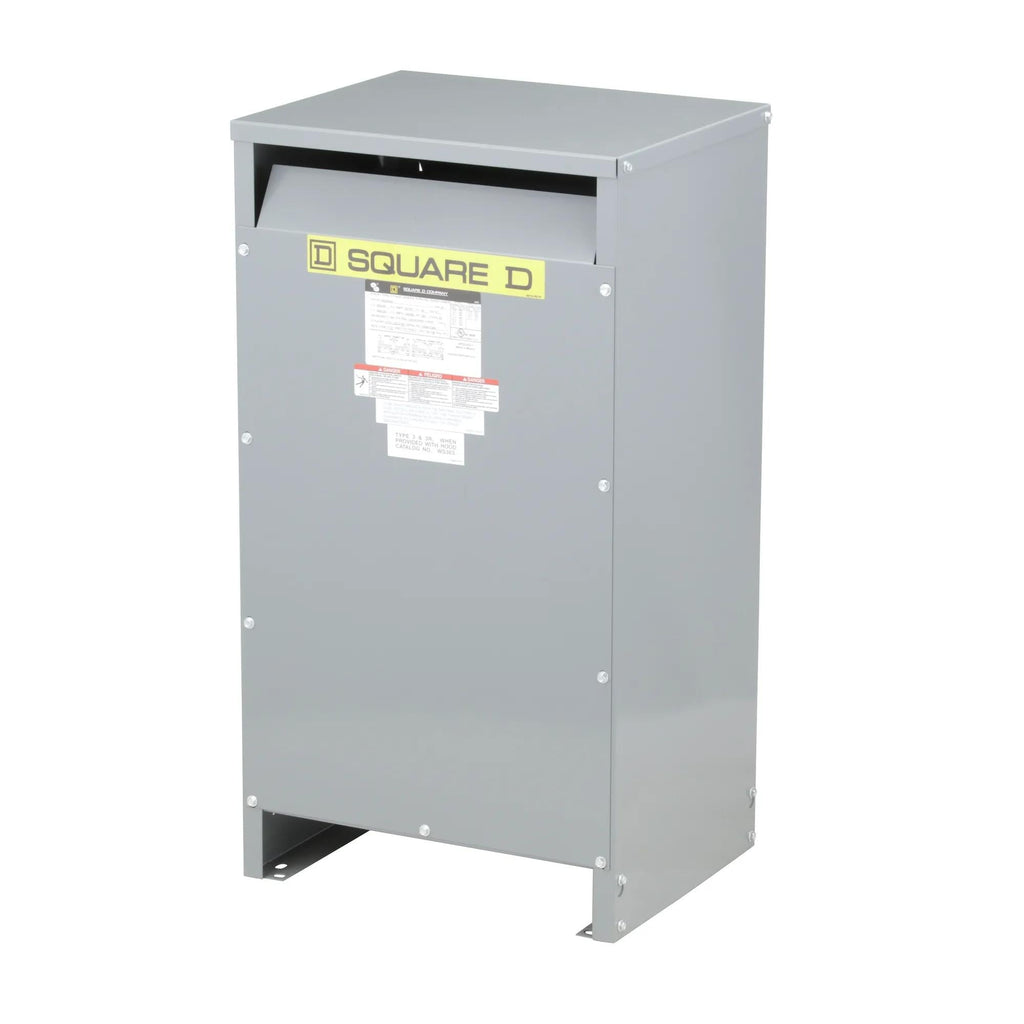

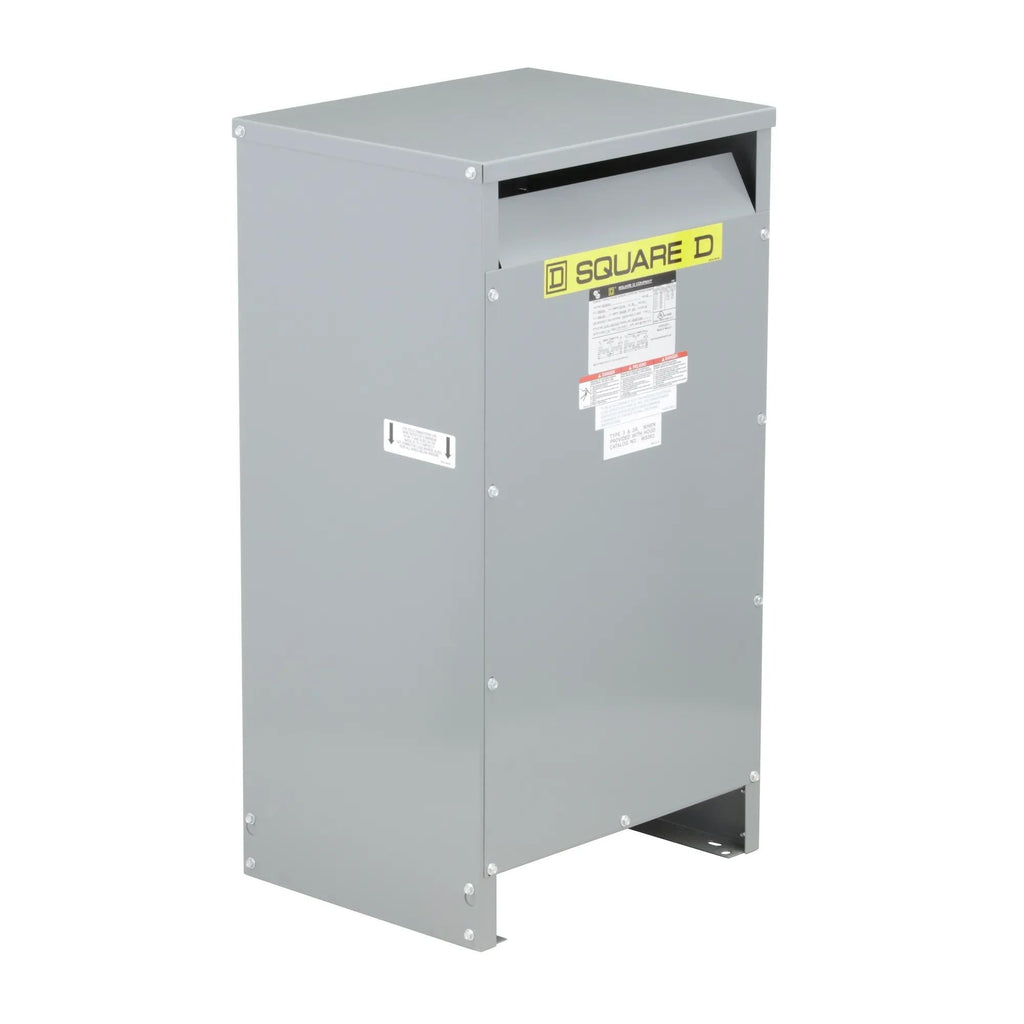

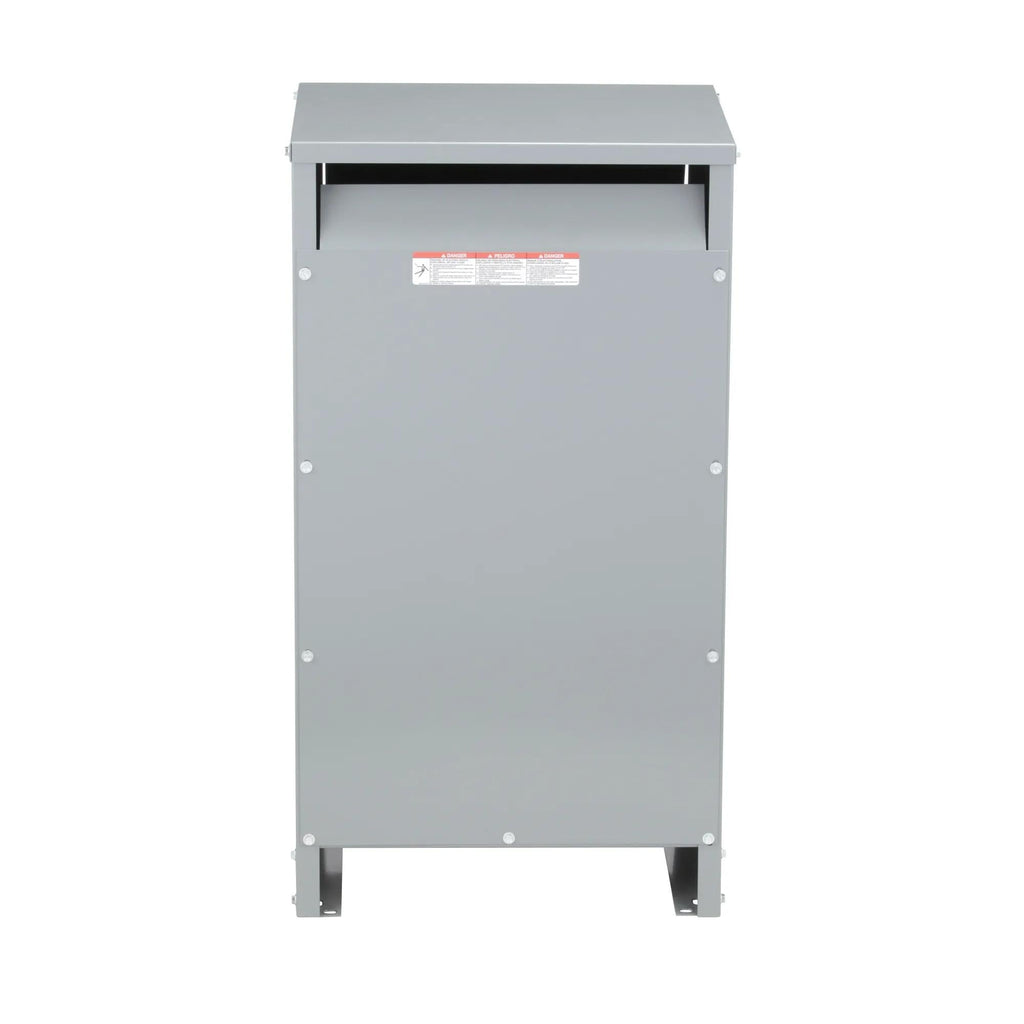

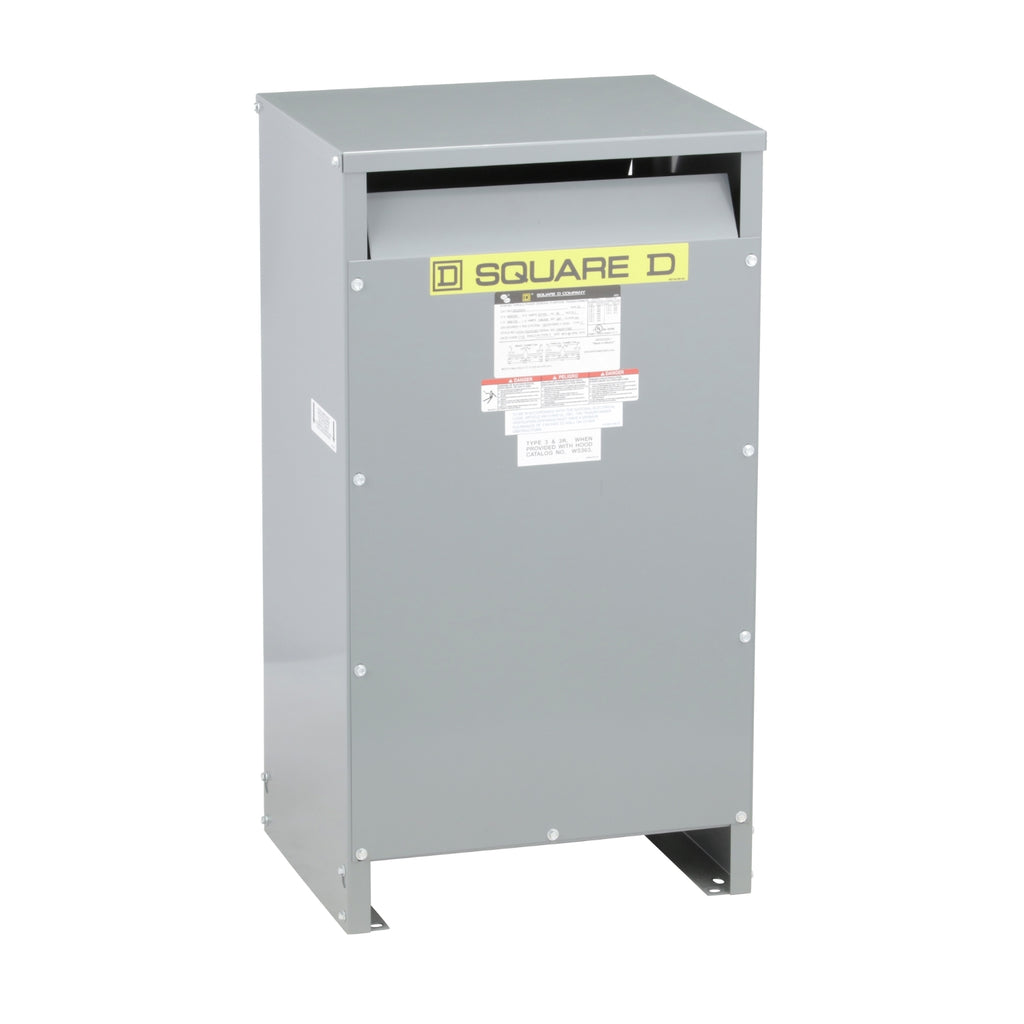

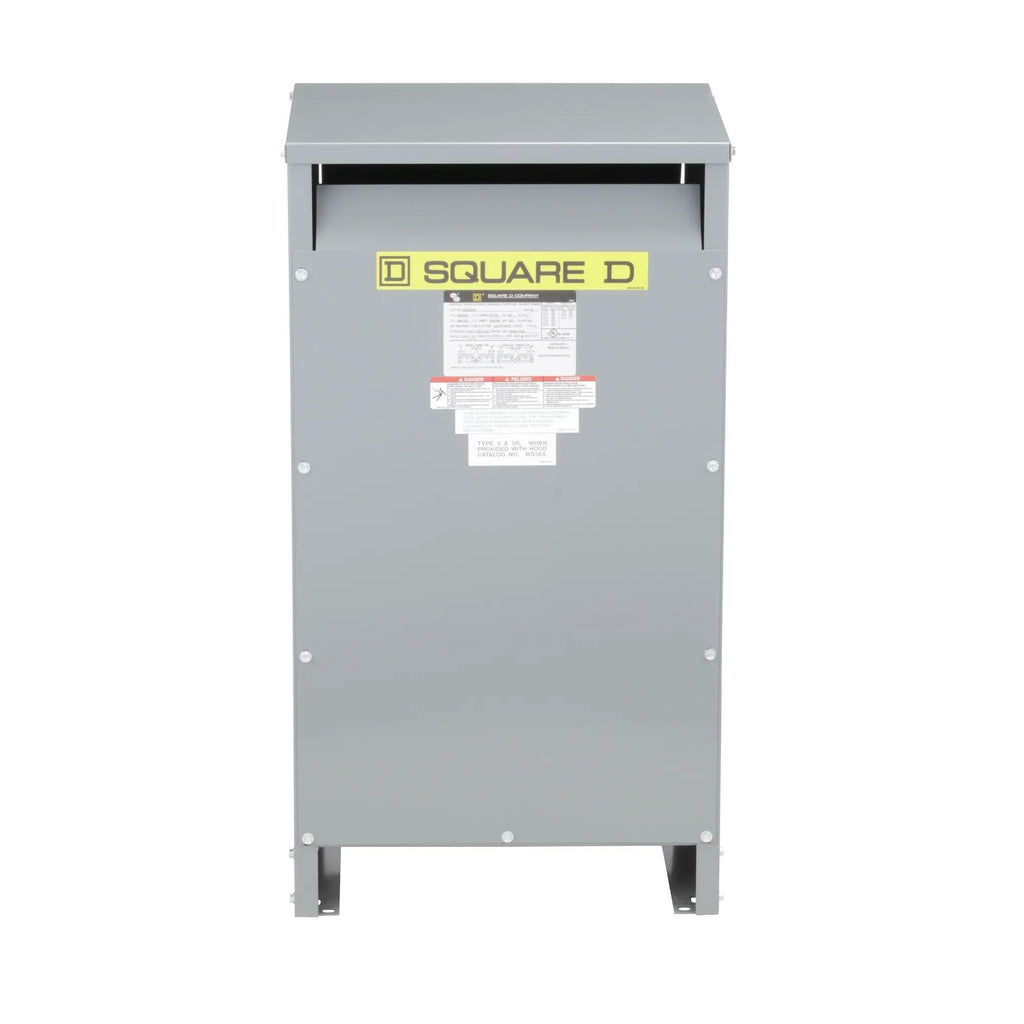

EE25S3H is a Square D 25 kVA dry type transformer designed for energy-efficient power distribution with 1 phase and dual voltage inputs and outputs.This transformer features a 240/480 V AC primary voltage and 120/240 V AC secondary voltage, operating at 60 Hz frequency. It has a NEMA 2 enclosure suitable for ceiling or floor mounting, with aluminum and steel housing. The unit offers 98% efficiency, a temperature rise rating of 150°C, and 6 taps for voltage adjustment. It is UL 1561 and CSA C22.2 certified, designed for indoor/outdoor use with a drip-proof, enclosed construction.
- Power Rating: 25 kVA
- Phase: 1
- Primary Voltage: 240/480 V AC
- Secondary Voltage: 120/240 V AC
- Frequency: 60 Hz
- Enclosure Type: NEMA 2
- Mounting Type: Ceiling/Floor
- Efficiency: 98%
- Temperature Rise: 150°C
- Number of Taps: 6
- Certifications: UL 1561, CSA C22.2
- Housing Material: Aluminum/Steel
Specifications
- Part Number: EE25S3H
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Distribution Equipment
- Item Subcategory : Transformers
- Section : Dry Type
Product Data
- UPC : 785901558934
- Country of Origin : Mexico
- Dimensions : 37 in (939.8 mm) x 20 in (508 mm) x 16 in (406.4 mm) (Height x Width x Depth)
- Weight : 302.001
- Certification : REACH Regulation, RoHS
