Product Info
- Manufacturer:Appleton
- Sub-Category:Explosionproof control station
Description
EDSF12

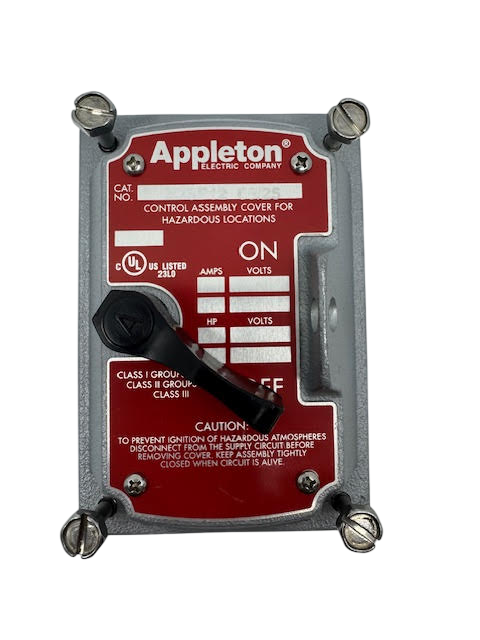

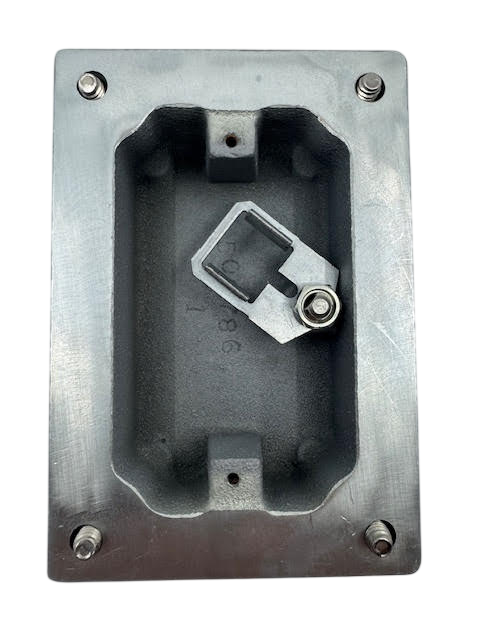

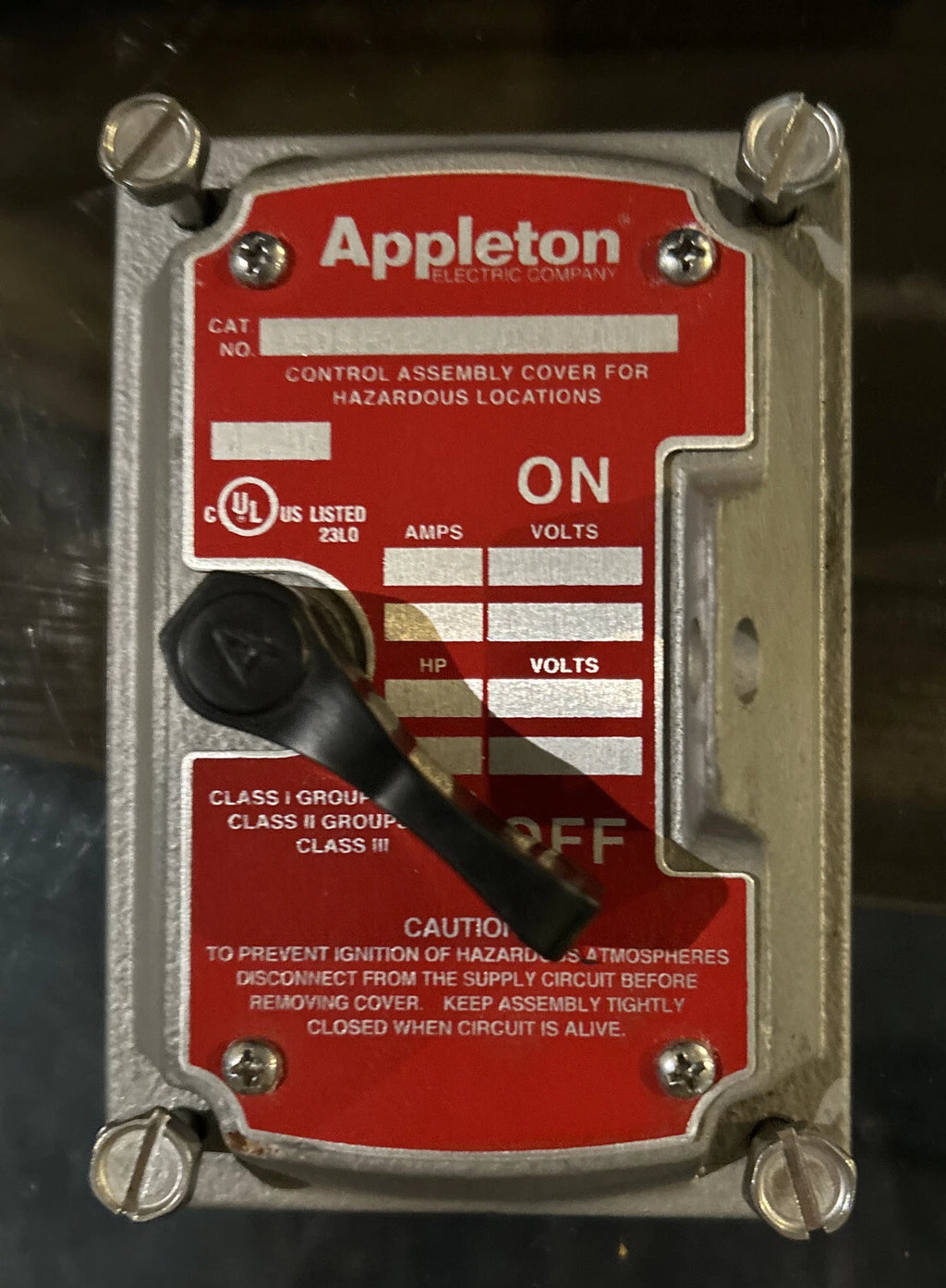

EDSF12 is an Appleton Contender Series factory sealed tumbler switch designed for safe operation in hazardous locations.This 1-pole, panel mount switch features a push button actuator and is UL certified for explosionproof and dust-ignitionproof applications. It is rated for 20 amps and designed to contain arcing within the enclosure, suitable for use in classified areas such as chemical plants and refineries.
- Manufacturer: Appleton
- Part Number: EDSF12
- Series: Contender
- Type: Factory Sealed Tumbler Switch
- Poles: 1
- Mounting Type: Panel Mount
- Amperage: 20A
- UL Certified Explosionproof
- Dust Ignitionproof
- Push Button Actuator
- Suitable for Class I, Division 1 & 2, Groups B, C, D
- Suitable for Class II, Division 1 & 2, Groups E, F, G
Additional Information
Control/pilot device for Class I/II locations
Specifications
- Part Number: EDSF12
- Manufacturer : Appleton
- Brand : Appleton
- Category : Motor Control
- Item Subcategory : Explosionproof control station
- Voltage : 120/277 AC
Product Data
- UPC : 781381815857
- GTIN : 00781381815857
- Country of Origin : Mexico
- Dimensions : 3.72 in x 5.31 in
- Weight : 5.19
