EDSC31273 S842 - Eaton Control Systems Selector Switch

EDSC31273 S842

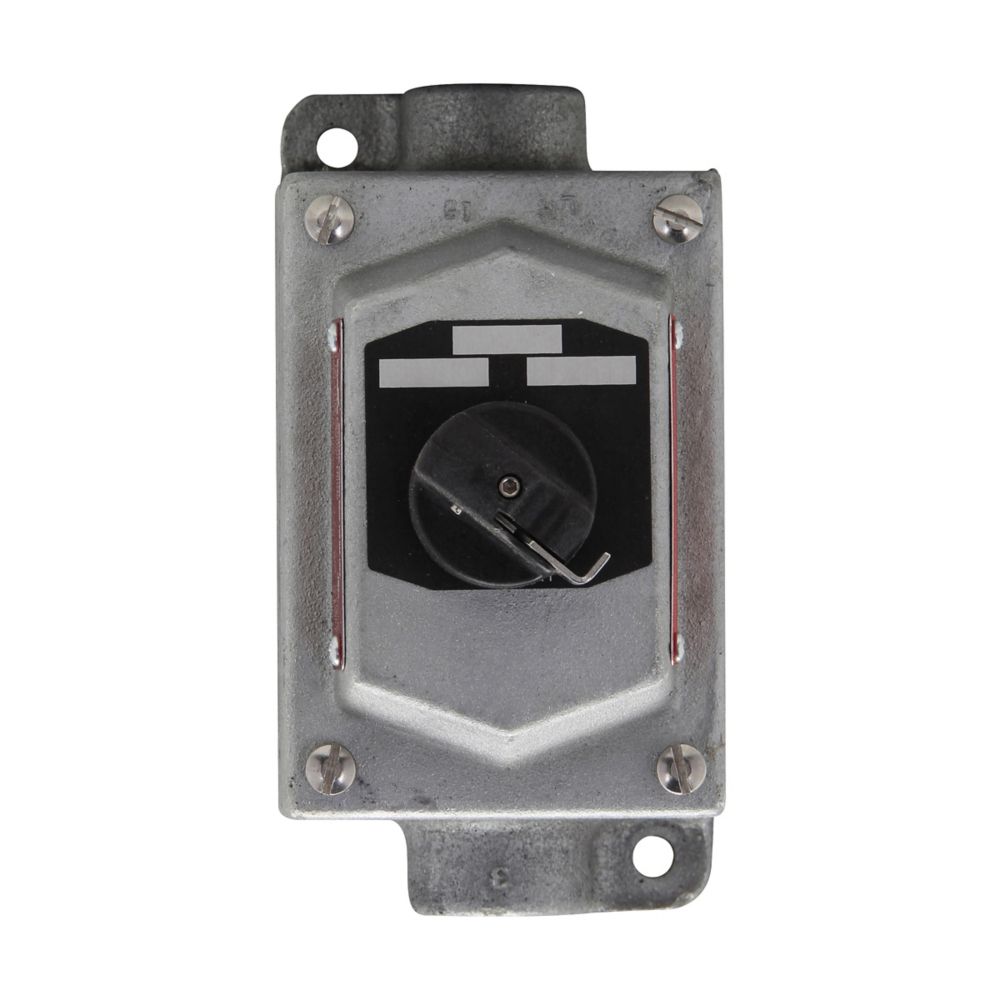

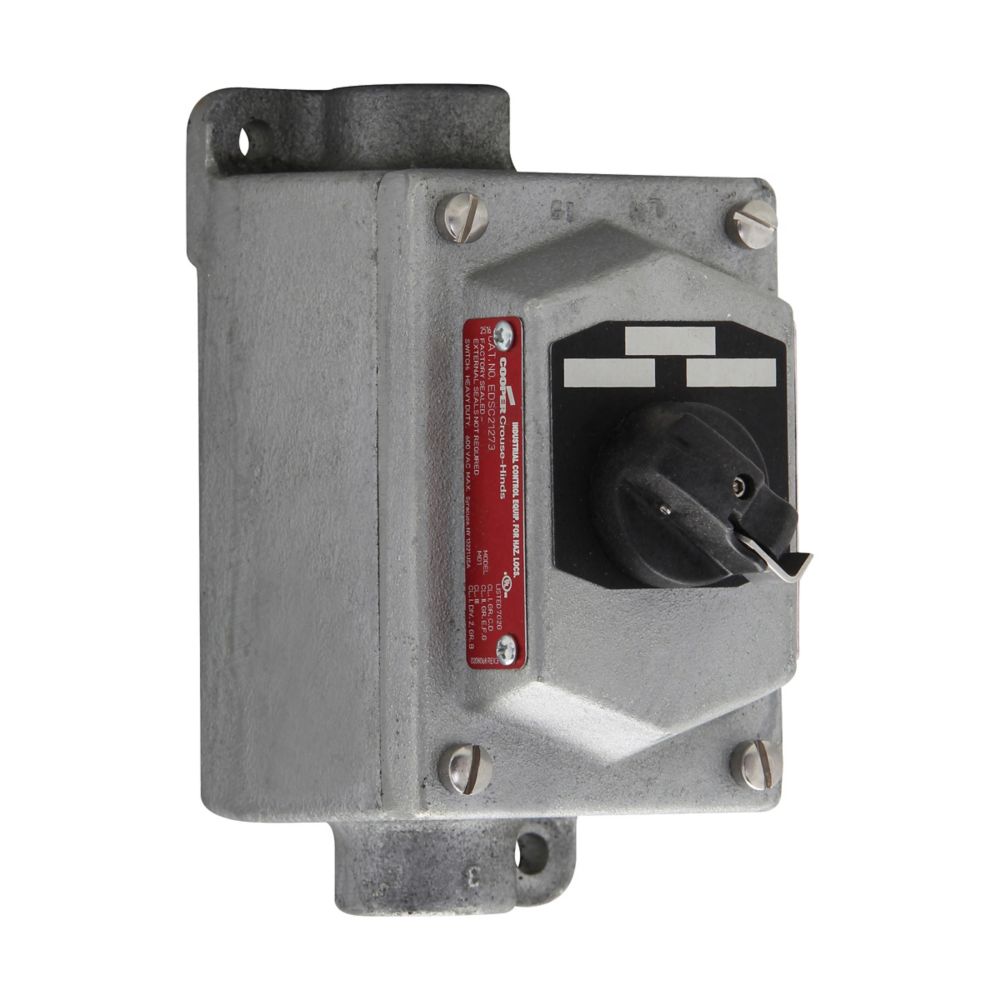

EDSC31273 S842 is an Eaton Crouse-Hinds series EDS selector switch control station designed for industrial applications. This three-position, two-circuit feed-through control station features factory-sealed explosionproof and dust-ignitionproof construction that confines arcing within the enclosure. The unit is constructed with Feraloy iron alloy for durability and reliability in demanding environments. Key Specifications

• Part Number: EDSC31273 S842
• Manufacturer: Eaton
• Switch Style: Three-position selector switch
• Circuit Configuration: Two-circuit, 4NO-2NC contact configuration
• Hub Size: 1 inch
• Feed Type: Feed-through type
• Operation Type: Maintained operation
• Enclosure Material: Feraloy iron alloy
• NEMA Rating: 3, 7B*CD, 9EFG
• UL Standard: 1203
• CSA Standard: C22.2 No. 30
• Hazardous Location Classification: Class II Division 2 Groups F, G; Class III

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDSC31273 S842
• Manufacturer : Eaton
• Brand : Eaton
• Category : Control Systems
• Item Subcategory : Control stations
• Section : EDSX, EDS and EFS Hazardous Area Pushbutton, Pilot Light and Selector Switch Control Stations
• Voltage : 600 Vac
• Class Rating : Class II Division 2 Groups F, G; Class III
• Configuration : Two-circuit, 4NO-2NC
• Switch Style : Three-position selector switch
• Nema Rating : 3, 7B*CD, 9EFG
• Enclosure : Feraloy iron alloy
• Duty : Feed-through type, maintained operation
• Material : Feraloy iron alloy
• NEC hazardous rating : Class II, Division 1 Class II, Division 2 Class I, Division 1 Class III Class I, Division 2
• Trade size : 1"
• Number of gangs : Single-gang
• Enclosure size : 1 inch hub
• Special features : Spring return both sides

Product Data

• UPC : 662276710832
• Dimensions : 3.5 in x 6.97 in x 5.44 in (Length/Depth x Height x Width)
• Weight : 7.86 lb
