Product Info
- Manufacturer:Appleton
- Sub-Category:Explosionproof control station
Description
EDSC271

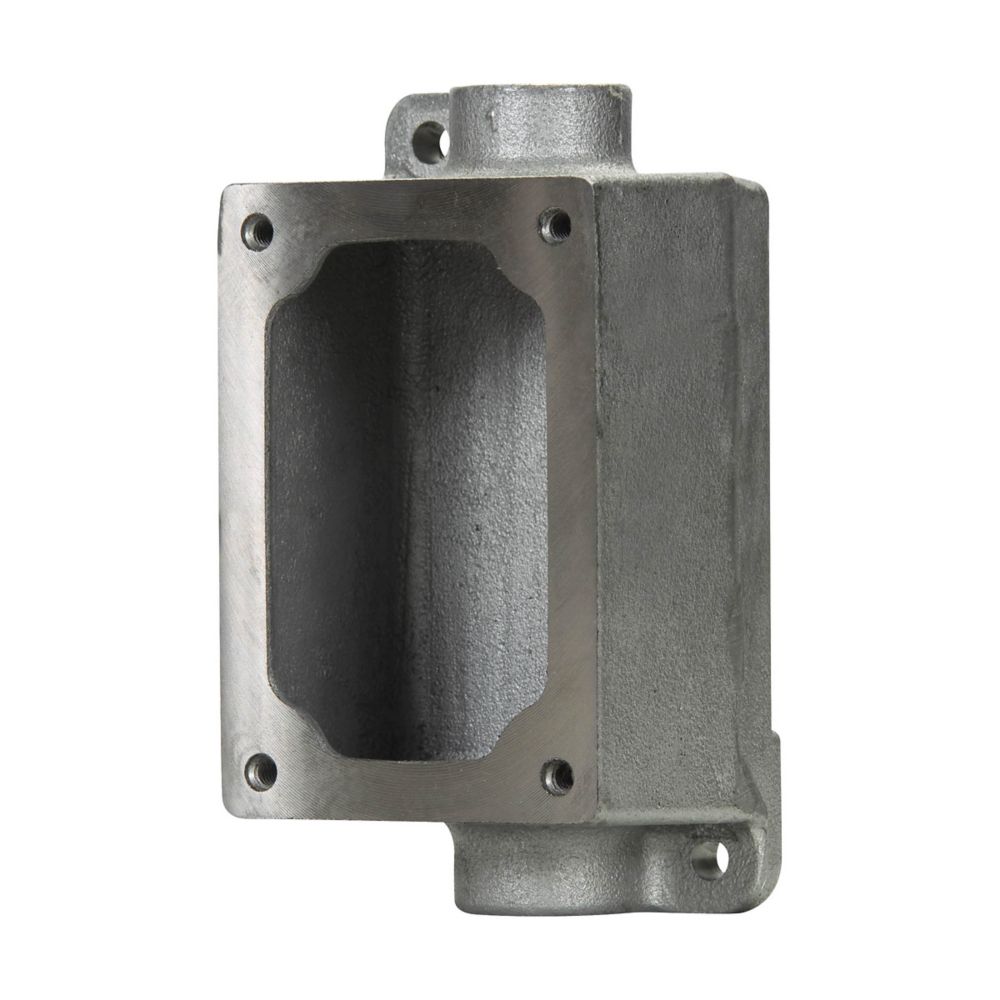

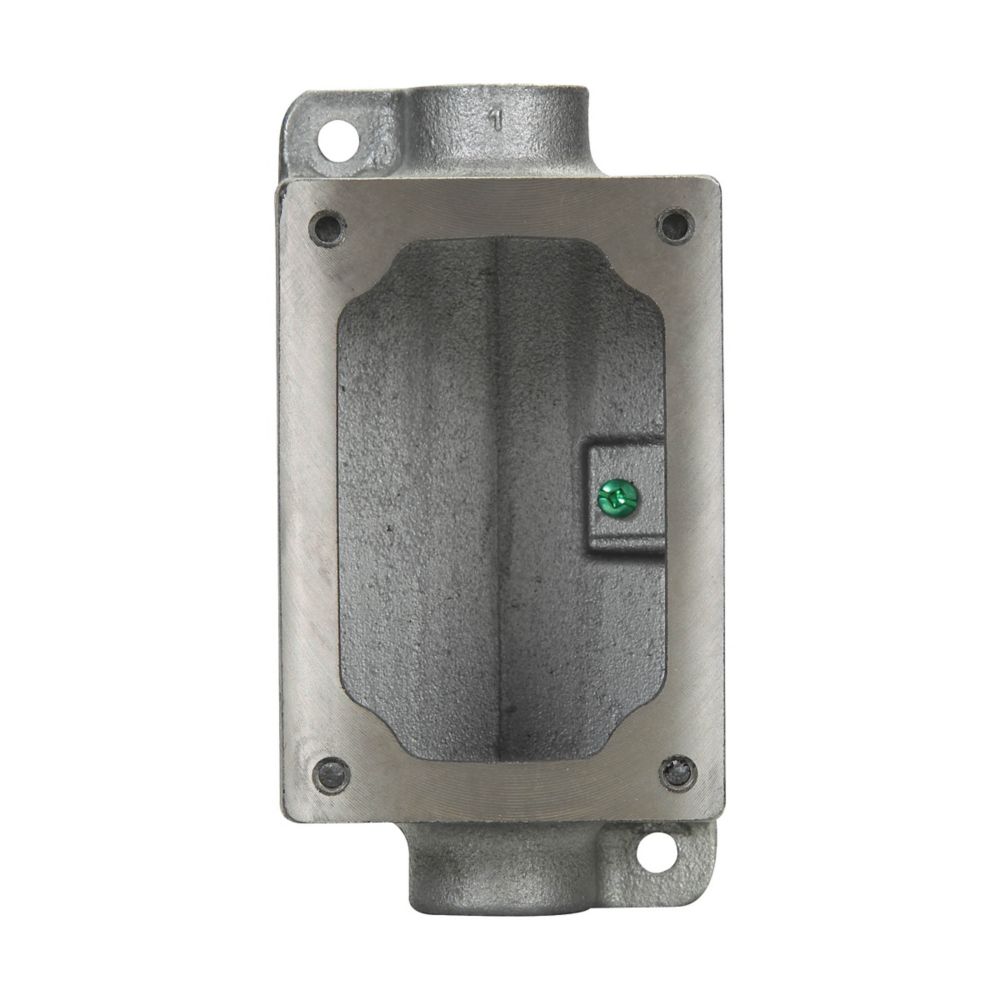

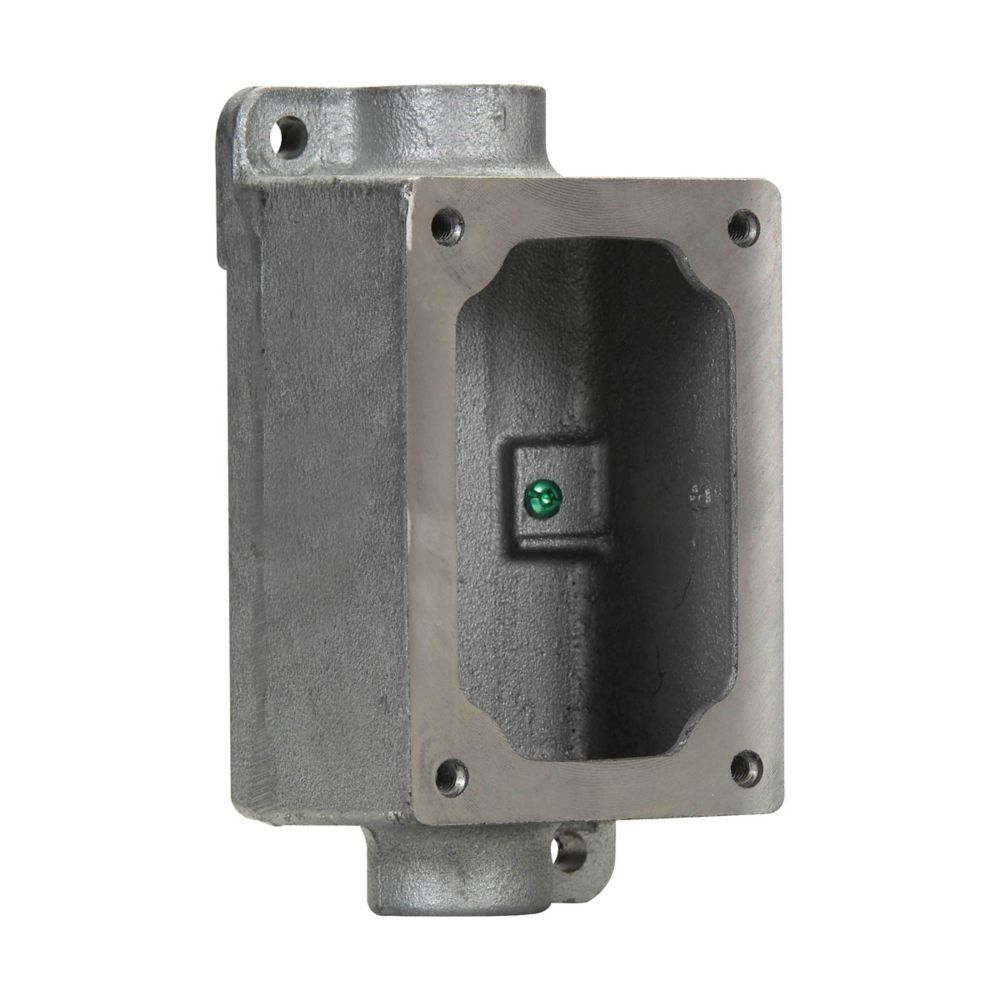

EDSC271 is an Appleton explosionproof motor control mounting body designed for hazardous locations requiring durable and safe enclosures.EDSC271 features a 1-gang feed-thru style with two 3/4 inch hubs, constructed from zinc electroplated, chromate, and epoxy powder coated malleable iron for corrosion resistance and durability. It is part of the EDS series and suitable for use with push buttons and selector switches for remote motor control.
- Explosionproof and dust-ignitionproof design
- 1-gang mounting body
- Feed-thru style with two 3/4 inch hubs
- Material: Zinc electroplated, chromate, epoxy powder coated malleable iron
- Dimensions: Approximately 3.72" width x 3.06" depth x 6.06" height
- Compatible with EDS series control stations
- Suitable for hazardous location motor control applications
- Durable and corrosion-resistant construction
- Mounting type: Surface mount
- Manufacturer: Appleton
Additional Information
Control/pilot device for Class I/II locations
Specifications
- Part Number: EDSC271
- Manufacturer : Appleton
- Brand : Appleton
- Category : Motor Control
- Item Subcategory : Explosionproof control station
- Family : EDSC
Product Data
- UPC : 781381698146
- GTIN : 00782274871141
- Country of Origin : Mexico
- Dimensions : 3.5 in x 5.91 in x 3.06 in (Length/Depth x Height x Width)
- Weight : 5.2
- Certification : UL 894, UL1203, UL Listed for Class I, Division 1, Groups C, D; Class I, Division 2, Groups, B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
