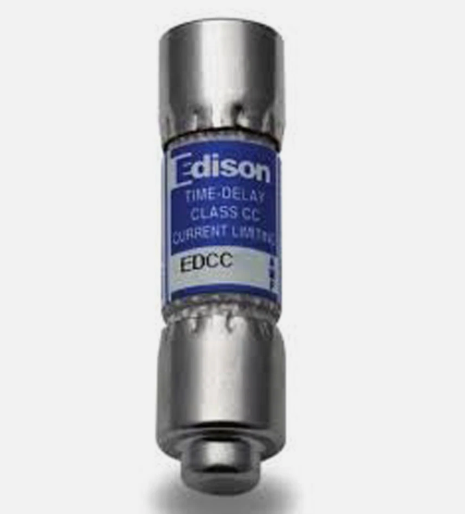

EDCC7.5 - Eaton Edison Class CC Fuse 7.5A 600VAC 300VDC 200kAIC Non-Indicating

EDCC7.5

EDCC7.5 is a Class CC current-limiting, time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This Eaton Edison fuse offers robust performance with a non-indicating design, making it ideal for branch circuit protection where signaling is not required. The EDCC7.5 fuse is engineered to handle up to 7.5 amperes of current and operates at a maximum voltage of 600 VAC or 300 VDC. It features a high interrupting rating of 200kA RMS symmetrical, ensuring effective protection against short-circuit and overload conditions. Its compact size and rejection tip help prevent incorrect installation and maximize space efficiency.

• Amperage Rating: 7.5 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 200kA RMS Symmetrical
• Class: Class CC
• Fuse Type: Current-limiting, time-delay
• Indicator: Non-indicating
• Mounting Type: Standard fuse holder
• Certifications: UL Listed, CSA Certified
• Compliance: CE Marked, RoHS Compliant
• Series: Edison
• Agency Standards: UL 248-4, CSA C22.2 No. 248.4
• Physical Size: 1.5 in x 0.41 in x 0.41 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDCC7.5
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : EDCC Series
• Type : EDCC
• Voltage : 600
• Amperage : 7.5
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782634808220
• GTIN : 00782634808220
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.19
