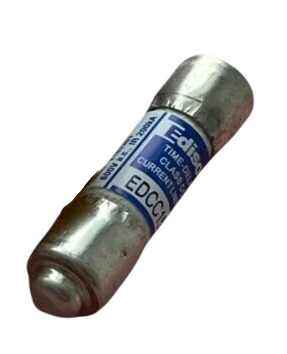

EDCC6.25 - Edison Fuses 6.25 Amp 600 Volt Class CC Time-Delay Fuse

EDCC6.25

EDCC6.25 is a 6.25 amp, 600 volt Class CC time-delay fuse manufactured by Edison Fuses.This EDCC series fuse features a compact 1-1/2 inch length and 13/32 inch diameter with a time-delay response, designed for branch circuit protection. It has a high interrupt rating of 200,000 RMS symmetrical amps at 600 VAC and 20,000 amps DC, making it suitable for protecting electrical circuits against overloads and short circuits. The fuse is UL listed (UL 198L) and CSA certified, ensuring compliance with industry safety standards.

• Amperage: 6.25 Amp
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Class CC
• Response Time: Time-Delay
• Interrupt Rating: 200kA RMS Symmetrical (AC), 20kA DC
• Dimensions: 13/32 inch diameter x 1-1/2 inch length
• Mounting Type: Fuse holder compatible
• Certifications: UL Listed, CSA Certified
• Series: EDCC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDCC6.25
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : EDCC Series
• Type : EDCC
• Voltage : 600
• Amperage : 6.25
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782634808206
• GTIN : 00782634808206
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.19
