Product Info
- Manufacturer:Edison Fuses
Description
EDCC56

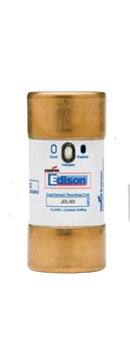

EDCC56 is a 5.6 amp, 600 volt Class CC time-delay fuse from Edison Fuses designed for branch circuit protection.This EDCC56 fuse features a compact size with a ferrule terminal and provides excellent current-limiting performance with a 200,000 amp interrupting rating (kAIC). It is suitable for motor branch circuit protection and general-purpose applications requiring time-delay characteristics. The fuse is UL Listed, CSA Certified, and CE Compliant, meeting rigorous safety and performance standards.
- Amperage Rating: 5.6 Amps
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Type: Class CC
- Fuse Response Time: Time-Delay
- Interrupt Rating: 200,000 RMS Symmetrical Amps
- Mounting Type: Ferrule Terminal
- Dimensions: 13/32 inch diameter x 1-1/2 inch length
- UL Listed, CSA Certified, CE Compliant
- Current Limiting for superior short-circuit protection
- Compact size for space-saving installation
Specifications
- Part Number: EDCC56
- Brand : Edison Fuses
Product Data
- UPC : 78263480818
- GTIN : 00782634808183
- Weight : 0.08
