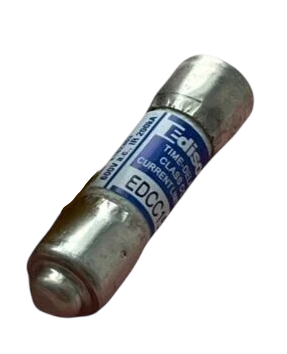

EDCC4.5 - Edison Fuses 4.5A 600V Class CC Time-Delay Fuse

EDCC4.5

EDCC4.5 is a 4.5 amp, 600 volt Class CC time-delay fuse from Edison Fuses designed for low-voltage circuit protection.This fuse features a current-limiting design with a 200 kA interrupt rating, suitable for feeder and branch circuit protection. It is UL, CSA C22.2, and CE certified, with a compact 1.5 inch length and 0.41 inch diameter, making it compatible with standard Class CC fuse holders.

• Amperage: 4.5A
• Voltage Rating: 600 VAC, 150 VDC
• Fuse Type: Class CC
• Time-Delay (Slow Blow)
• Interrupt Rating: 200 kAIC
• Length: 1.5 inches
• Diameter: 0.41 inches
• Certifications: UL, CSA C22.2, CE
• Mounting: Standard Class CC fuse holders
• Non-indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDCC4.5
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 4.5
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782634808169
• GTIN : 00782634808169
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.19
