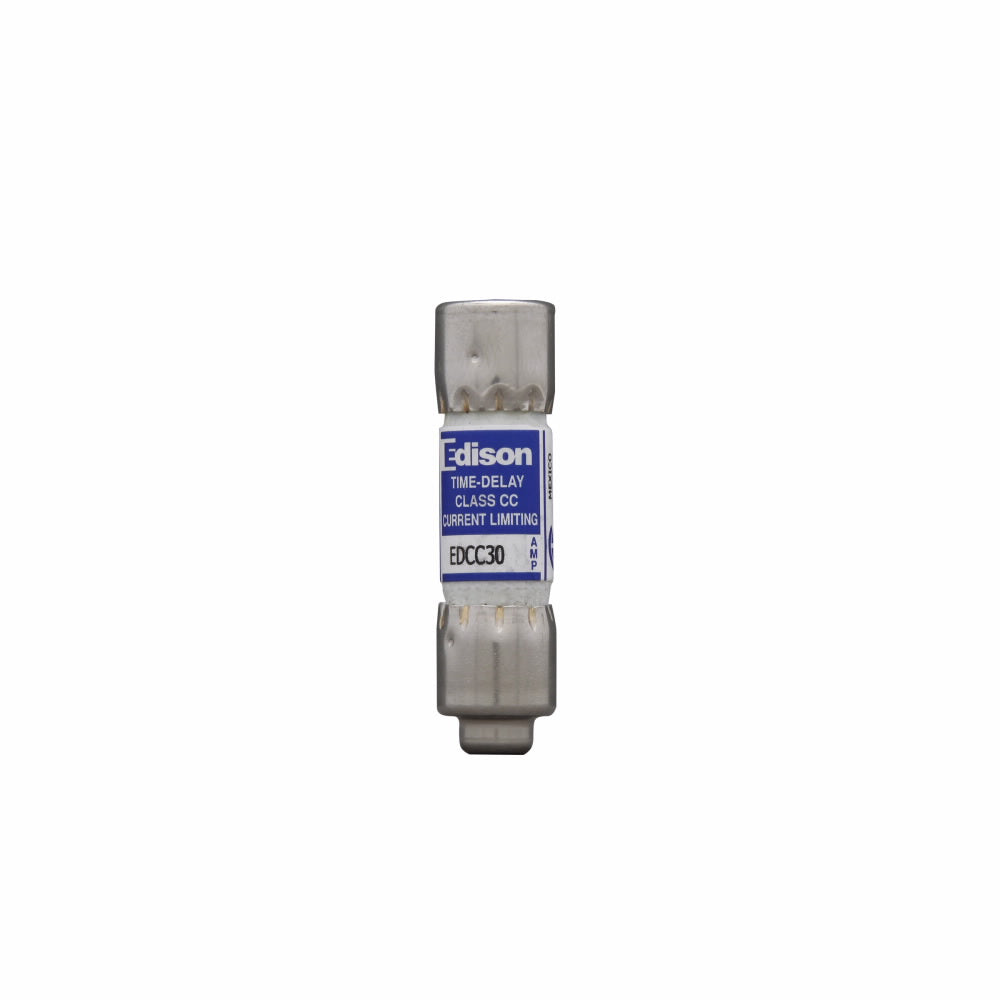

EDCC30 - Edison 30 Amp 600 Volt Class CC Time-Delay Fuse, 1.5 Inch, 20 kAIC Interrupt Rating

EDCC30

EDCC30 is a 30 Amp, 600 Volt Class CC time-delay fuse from Edison designed for reliable circuit protection.This EDCC30 fuse features a compact 1.5 inch length and 0.41 inch diameter, providing current-limiting protection with a 20,000 Amp interrupt rating at 600 VAC and 300 VDC. It is UL listed and CSA certified, suitable for branch circuit protection in both AC and DC applications. The fuse is non-indicating and time-delay type, ideal for safeguarding electrical systems against short circuits and overloads.

• Amperage: 30 Amp
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Class CC, Time-Delay
• Interrupt Rating: 20 kAIC (600 VAC), 20 kAIC (300 VDC)
• Fuse Length: 1.5 inches (38.1 mm)
• Diameter: 0.41 inches (10.3 mm)
• Mounting Type: Ferrule
• Certifications: UL Listed, CSA Certified
• Current Limiting: Yes
• Non-Indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDCC30
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : EDCC Series
• Type : EDCC
• Voltage : 600
• Amperage : 30
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782634808305
• GTIN : 00782634808305
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.19 lb
