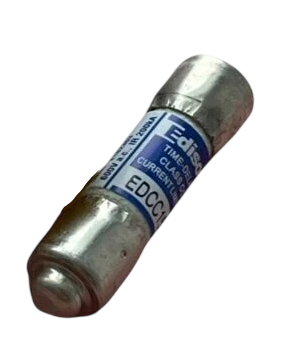

EDCC225 - Edison Fuses Class CC 2.25A 600VAC/300VDC Time Delay Fuse

EDCC225

EDCC225 is a Class CC time-delay fuse from Edison Fuses, designed for reliable branch circuit protection in a variety of industrial and commercial applications. This fuse provides superior motor protection for small horsepower circuits and is suitable for use where either time-delay or fast-acting fuses are needed. The EDCC225 fuse features a compact design with a 600 VAC and 300 VDC voltage rating, making it ideal for a wide range of electrical systems. It offers a high interrupting rating and is constructed for durability and safety in demanding environments.

• Amperage Rating: 2.25 A
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Class CC
• Response Time: Time Delay
• Interrupting Rating: 200,000 RMS Symmetrical Amps (AC), 20,000 Amps (DC)
• Mounting Type: Ferrule
• Series/Frame: EDCC
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Agency Standards: UL 248-4, C22.2 No. 248.4
• Physical Dimensions: 13/32" x 1-1/2"
• Operating Temperature: -40°C to 120°C
• Material: Thermoplastic base and covers, tin-plated bimetallic copper terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDCC225
• Brand : Edison Fuses

Product Data

• UPC : 78263480809
• GTIN : 00782634808091
• Weight : 5.19
