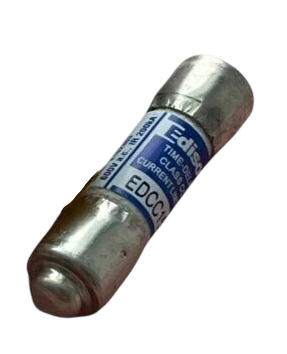

EDCC14 - Edison Fuses 1.4 Amp 600V Class CC Time-Delay Current Limiting Fuse

EDCC14

EDCC14 is a 1.4 amp, 600 volt Class CC time-delay current limiting fuse designed for motor branch circuit protection.

This fuse features excellent current-limiting performance with a 200,000 amp interrupting rating (AC) and 20,000 amp DC interrupting rating. It is UL Listed and CSA Certified for branch circuit protection up to 600 VAC and 300 VDC. The compact ferrule design measures 13/32 inch by 1-1/2 inch and is suitable for panel or 35mm DIN rail mounting. The EDCC14 fuse provides superior protection for small horsepower motor circuits with time-delay characteristics to avoid nuisance blowing during motor startup.

• Amperage: 1.4 A
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Class: CC
• Time-Delay Characteristics
• Interrupting Rating: 200,000 A AC, 20,000 A DC
• Compact Ferrule Size: 13/32" x 1-1/2"
• Mounting: Panel or 35mm DIN rail
• UL Listed, CSA Certified
• Current Limiting Fuse
• Designed for Small Horsepower Motor Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDCC14
• Brand : Edison Fuses

Product Data

• UPC : 78263480804
• GTIN : 00782634808046
• Weight : 0.08
