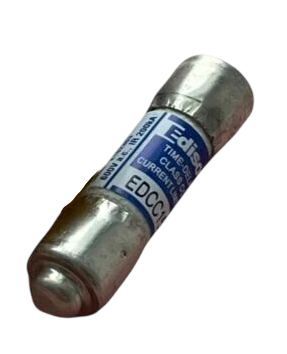

EDCC1125 - Edison Fuses 1.125A 600VAC Class CC Time-Delay Fuse

EDCC1125

EDCC1125 is a Class CC time-delay fuse designed for branch circuit protection in industrial and commercial applications. This Edison Fuses product provides reliable overload and short-circuit protection for motor circuits and other sensitive equipment. The EDCC1125 fuse features a compact 10.3 x 38.1mm (13/32" x 1-1/2") design with a rejection tip for safe installation. It is rated for 600VAC and 300VDC, with a 1.125A current rating and a 200,000A RMS symmetrical interrupting rating. The time-delay characteristic allows for temporary current surges, making it ideal for motor protection and other applications requiring surge tolerance.

• Amperage Rating: 1.125A
• Voltage Rating: 600VAC, 300VDC
• Fuse Type: Class CC
• Interrupting Rating: 200,000A RMS Symmetrical
• Response Time: Time-Delay
• Physical Size: 10.3 x 38.1mm (13/32" x 1-1/2")
• Mounting Type: Rejection Tip
• Agency Approvals: UL Listed, CSA Certified
• Application: Motor Circuit Protection
• Compact Design for Space-Saving Installation
• Superior Overload and Short-Circuit Protection
• Compatible with Standard Class CC Fuse Holders

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDCC1125
• Brand : Edison Fuses

Product Data

• UPC : 78263480802
• GTIN : 00782634808022
• Weight : 5.19
